61 9 040 Set of tools for repair kit IV
SET OF TOOLS FOR REPAIR KIT IV 61 9 040
| Series: | E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39, E46, E52, E53, E65, E85, R50, R53 |
| Storage location: | K108 |
| SI number: | 2 02 92(505) |
| Order number: | 61 9 040 |

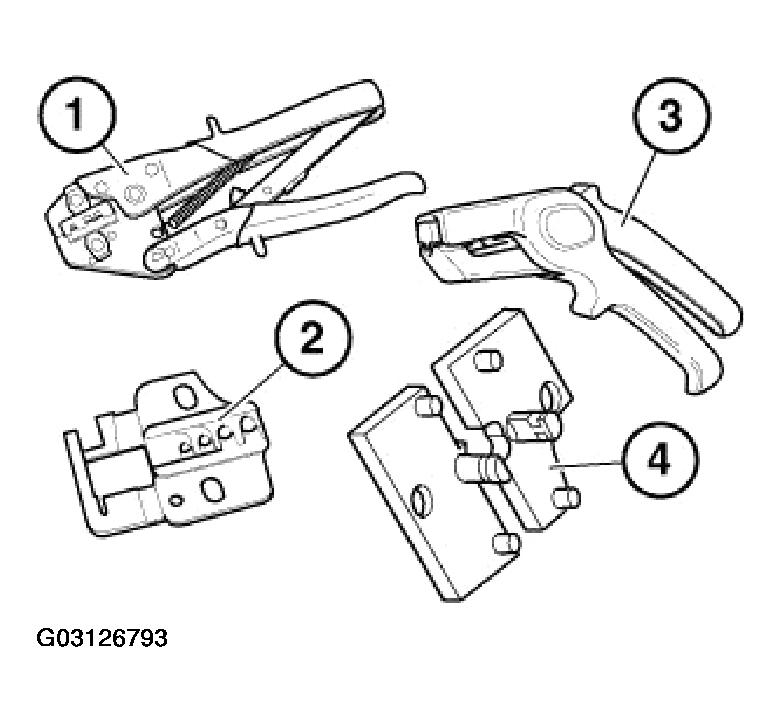

| Set of tools for repair kit IV | |
| Consisting of: | |
| 1 = 61 9 041 | Hand pliers without crimper |
| 2 = 61 9 042 | Crimper |
|
NOTE:
For crimping butt connectors and contact sleeves for strip connectors
|
|
| 3 = 61 9 043 | Cable stripper with wire cutter |
| 4 = 61 9 044 | Crimper |
|
NOTE:
For crimping antenna connector (antenna cable/radio plug connection)
|
