61 1 470 Set of leads (6)
Minimum set: Measuring and testing equipment
SET OF LEADS (6) 61 1 470
| Note: | For measuring and test purposes |
| Series: | E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39, E53 |
| Storage location: | C 102, G 103, G 104, G 105, G 106, G 107, G 108, G 109 |
| Order number: | 61 1 470 |
| Set of leads (6) | |

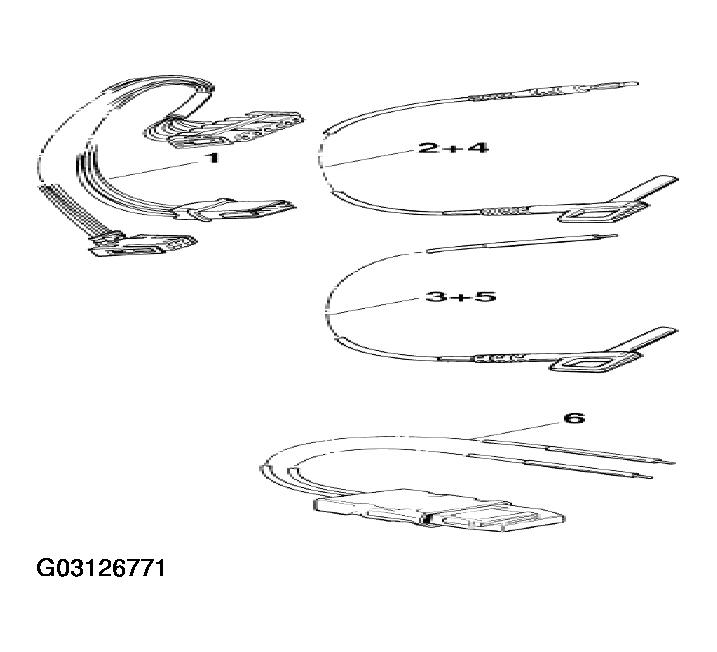

| Consisting of: | |
| 1 = 61 1 471 | 6-pin V-adapter lead (Modu), black |
|
NOTE:
For IHR/IHKA stepper motors - Series: E31, E32, E34
|
|
| 2 = 61 1 472 | 1-pin test lead (D 4.0), red |
| 3 = 61 1 473 | 1-pin test lead (D 2.5), red |
| 4 = 61 1 474 | 1-pin test lead (D 4.0), black |
| 5 = 61 1 475 | 1-pin test lead (D 2.5), black |
| 6 = 61 1 476 | Test cable with fuse 12 A (D 2.5) |
