51 14 110 Removing and installing/replacing rear model emblem: Touring

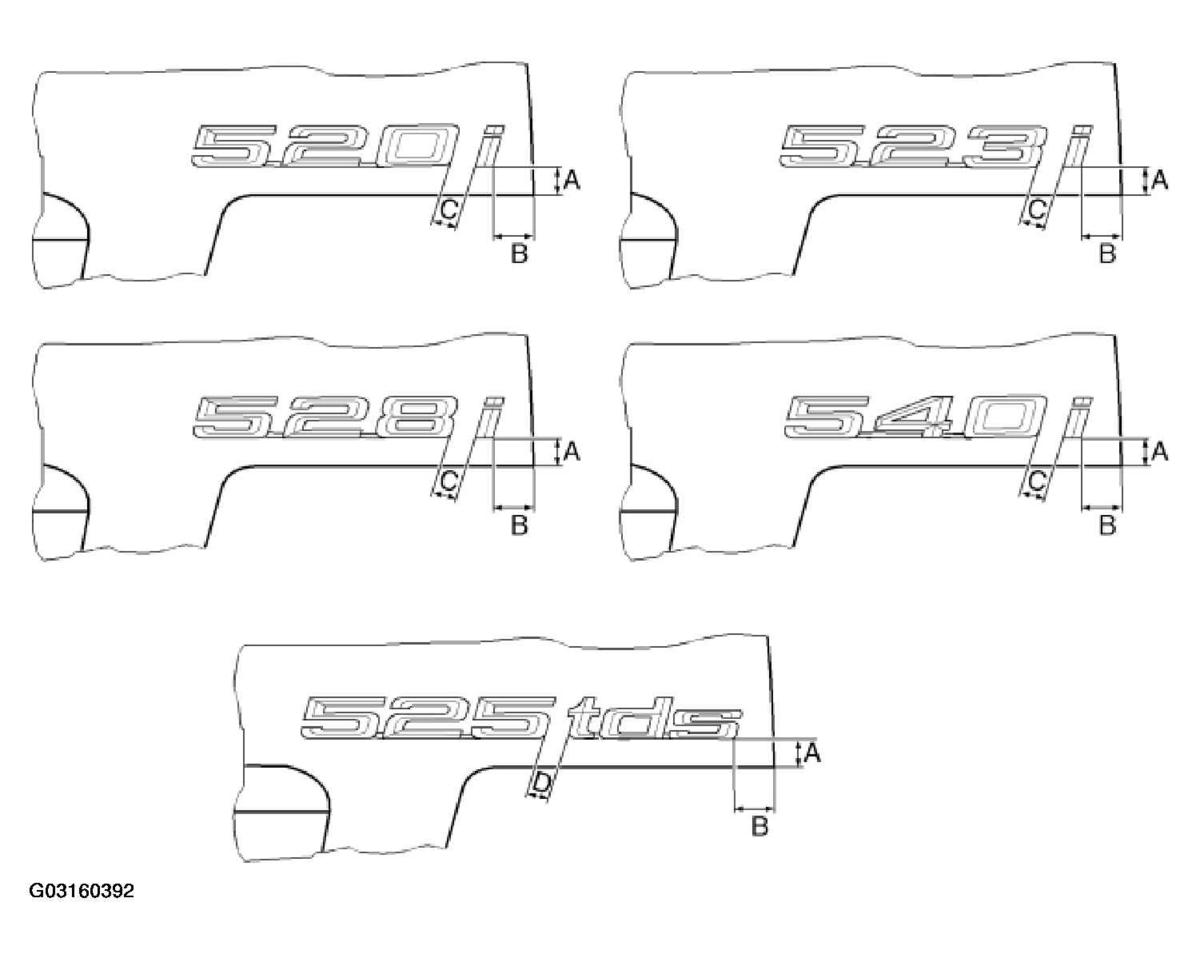

Fig 1: Identifying Rear Model Emblem Placement Dimensions (Touring)

Courtesy of BMW OF NORTH AMERICA, INC.

Apply adhesive tape up to upper edge "A" and mark dimensions as per table.

Dimension in mm

Touring 520 i... 540 i:

A = 23, B = 26, C = 16

Touring 525 tds:

A = 23, B = 23, D = 20
