21 2 170 Tensioning tool
Minimum set: Mechanical tools
SPECIAL TOOL DESCRIPTION
| In conjunction with: | 21 2 180, 21 2 190, 21 2 141, 21 2 142 |
| Note: | For resetting adjustment ring and installing self adjusting clutch (SAC) on flywheel without tension. |
| Series: | E34, E36, E38, E39, E46, E52, E53, E60, E61, E85, E87 |
| SI number: | 1 16 00 (622) |
| Order number: | 21 2 170 |

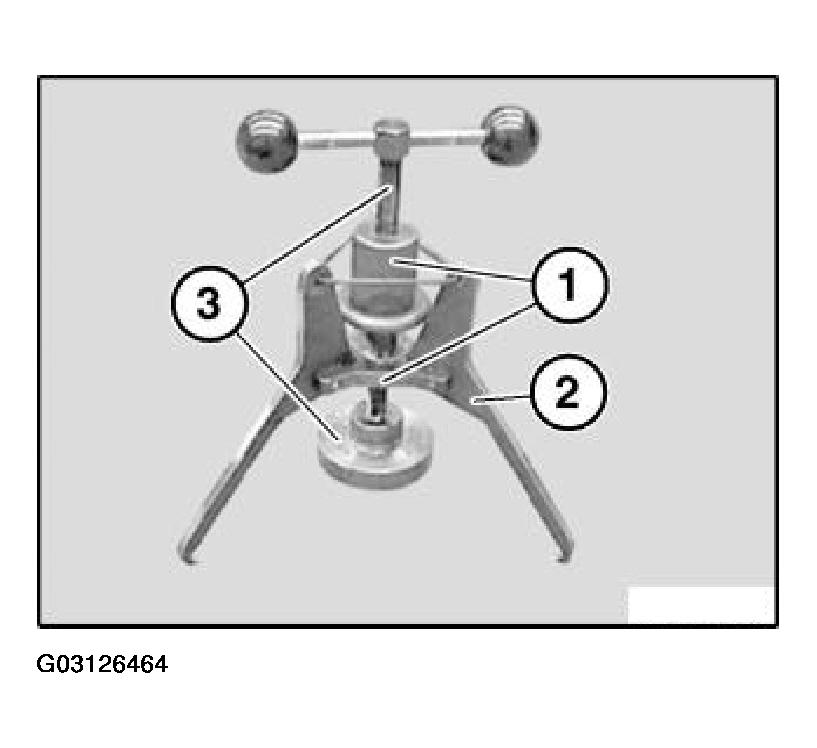

| Tensioning tool | |
| Consisting of: | |
| 1 = 21 2 171 | Star with adjusting spindle |
| 2 = 21 2 172 | Clamping claw (1 x) |
| 3 = 21 2 173 | Pressure spindle with disk |
