Test Group 1BMXV04.9S62
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2001 BMW Z8, 2001 BMW X5, 2001 BMW M5, 2001 BMW 750iL, and 2001 BMW 740iL. However, it is still accessible from the selected car via links, so may be relevant.
- General Description - Fuel system monitoring includes lambda controller restriction against limits for rich and lean and permanent deviation from mean position.

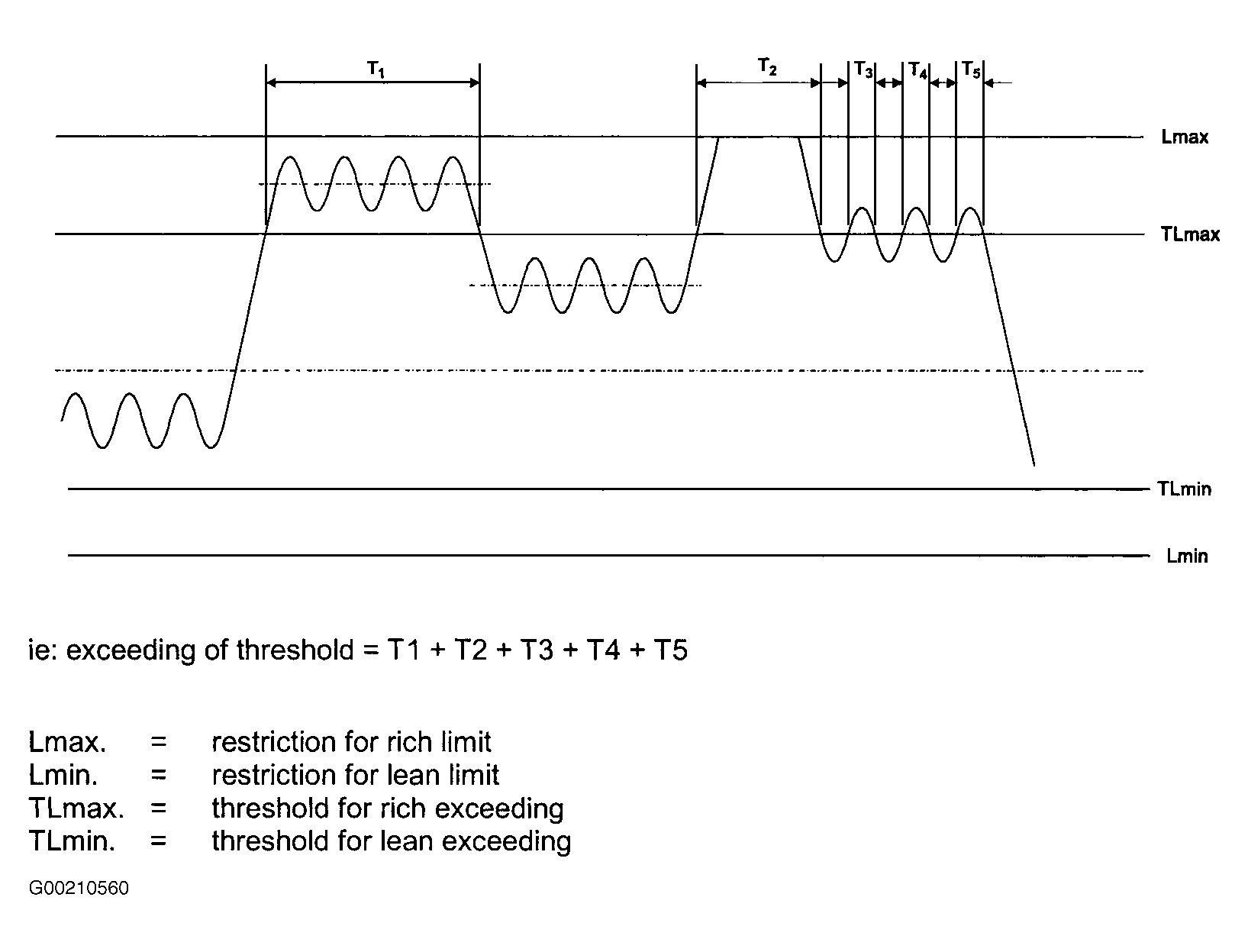

- Monitoring Structure - If fuel system is suddenly hard disturbed and therefore lambda controller reaches restriction (lean limit), a timer is started. Timer is incriminated as long as controller remains at limit. If it exceeds a predetermined value, a fault for short trim will be detected and stored for rich and lean exceeding separately. For permanent deviation from mean position, there are additional lean and rich thresholds. If accumulated time (sum of all excesses for rich or lean) is greater than a fixed limit during a defined period, a fault for long term trim will be detected and stored for rich and lean exceeding separately. See Fig 1.
