84 21 520 Removing and installing/replacing line compensator (cellular phone)

Open panel in luggage compartment at rear left.

If necessary, remove holder for navigation computer.

Turn plug connection (1) in direction of arrow and remove.

NOTE: Secure hands-free charging electronics (3) with holder against falling out.

Release nuts (2) and remove hands-free charging electronics (3) with holder.

Fig 1: Removing Hands-Free Charging Electronics With Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Unscrew nuts (2).

Remove line compensator (3) from holder (4).

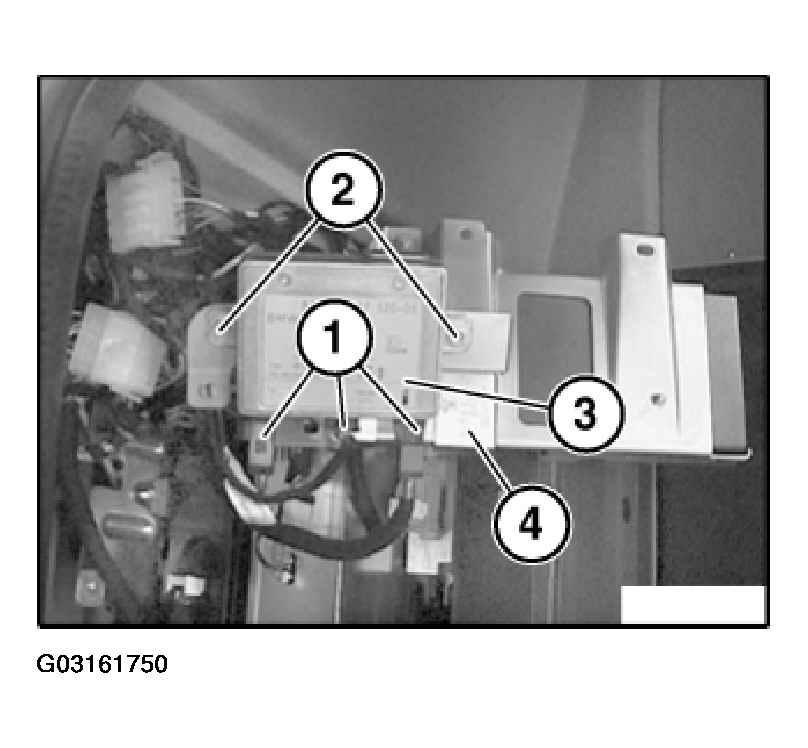

Fig 2: Removing Line Compensator From Holder

Courtesy of BMW OF NORTH AMERICA, INC.
