12 61 280 Removing and installing/replacing oil pressure switch (M52TU, M54, M56)

Switch off ignition.

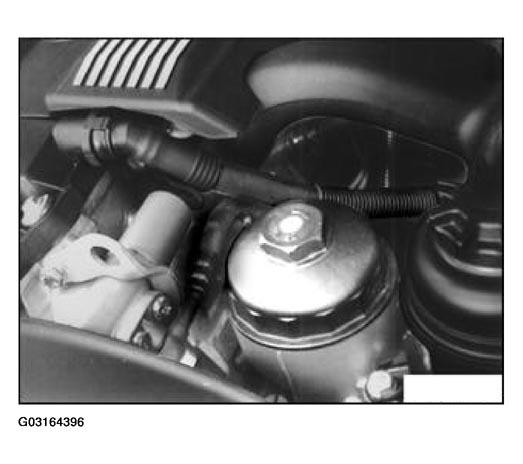

Fig 1: Removing Suction Filter Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten oil filter cover to enable engine oil in filter to flow back into the oil sump. The procedure is described in 00 00 250 BMW ENGINE OIL SERVICE INCL. SUPPLEMENTARY SERVICE (M54 / M56) .

Location: On base of oil-filter.

NOTE: Figure shows power steering pump supply tank removed. Disconnect plug connection (2).

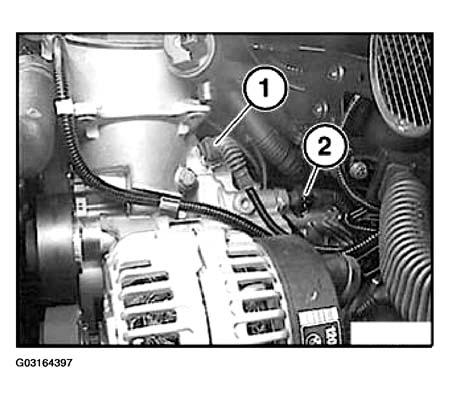

Fig 2: Disconnect Plug Connection (2)

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: A few drops of oil escape when the oil pressure switch is released. Catch residual oil with cleaning cloth and dispose of oil.

Release oil pressure switch.

Installation:

Tightening torque: 27 N.m.
