11 51 000 Removing and installing complete water pump (M52 / S52 / M52TU / M54 / M56)

NOTE: M52 / S52

Water drain plug is located on exhaust side between cylinders 4 and 5 in engine block (illustration).

M52TU / M54 / M56

Water drain plug is located on exhaust side on cylinder 2 in engine block.

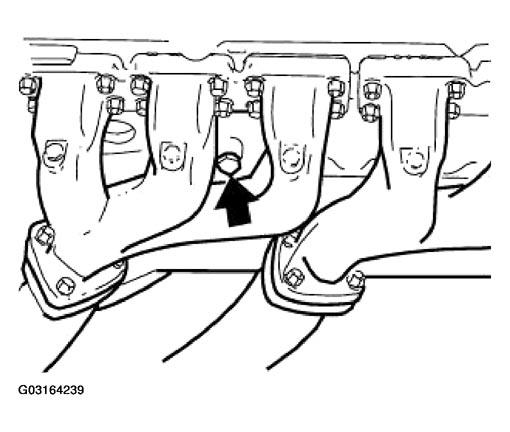

Fig 1: Locating Drain Plug and Exhaust manifold

Courtesy of BMW OF NORTH AMERICA, INC.

Drain and dispose of coolant.

Installation:

Replace seal.

Tightening torque, refer to 11 11 5AZ in ENGINE - TIGHTENING TORQUES .

Vent cooling system and check for leaks.

Release belt pulley.

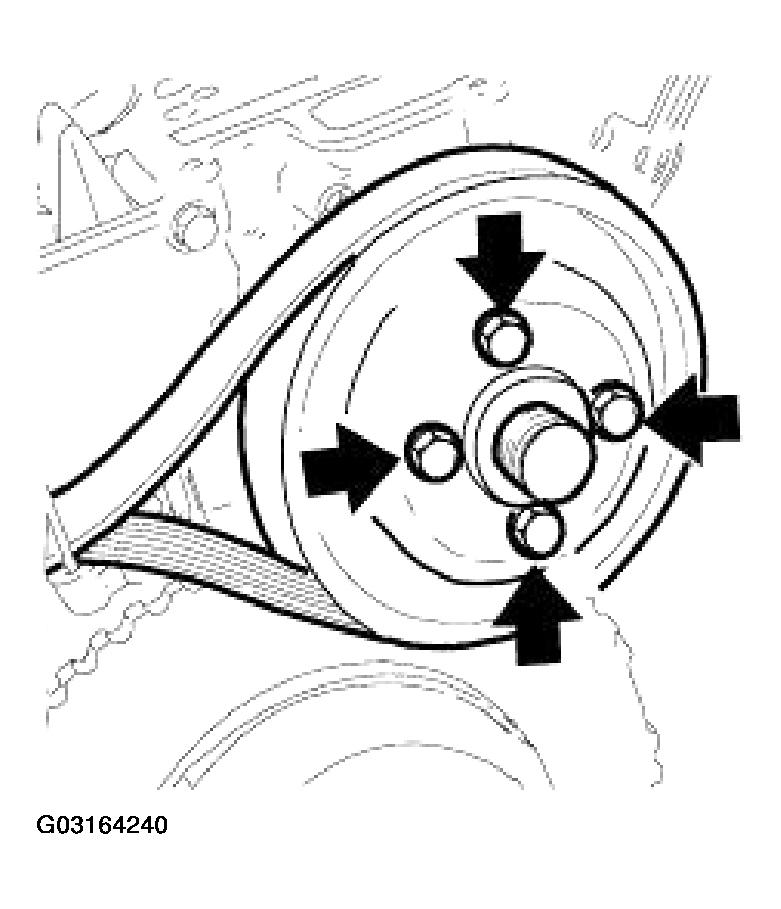

Fig 2: Releasing Belt Pulley

Courtesy of BMW OF NORTH AMERICA, INC.

Release water pump.

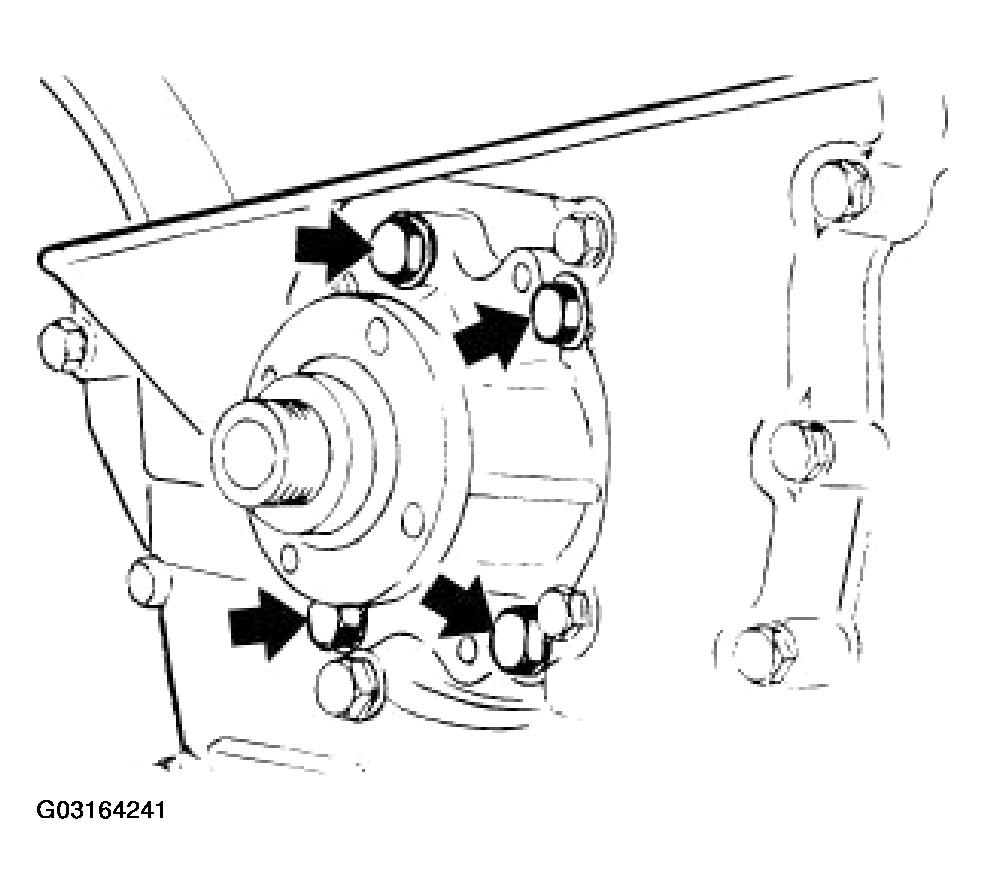

Fig 3: Releasing Water Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten two screws (M 6) into thread of water pump and water pump out of timing case.

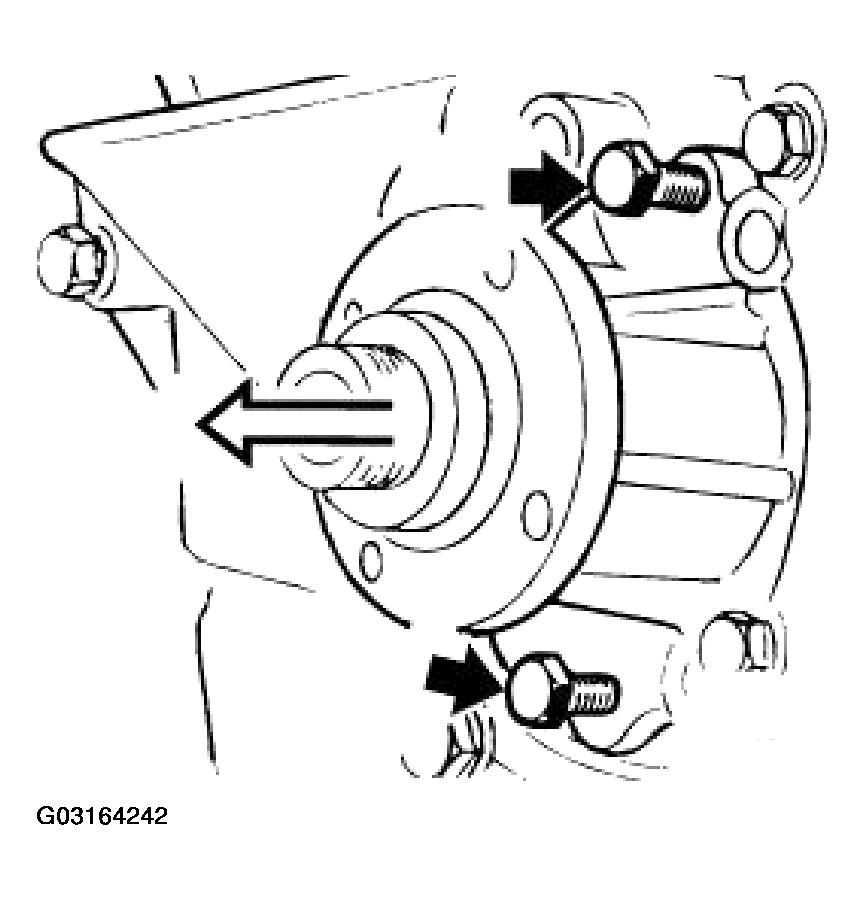

Fig 4: Tightening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace O-ring and coat with coolant as anti-friction agent.

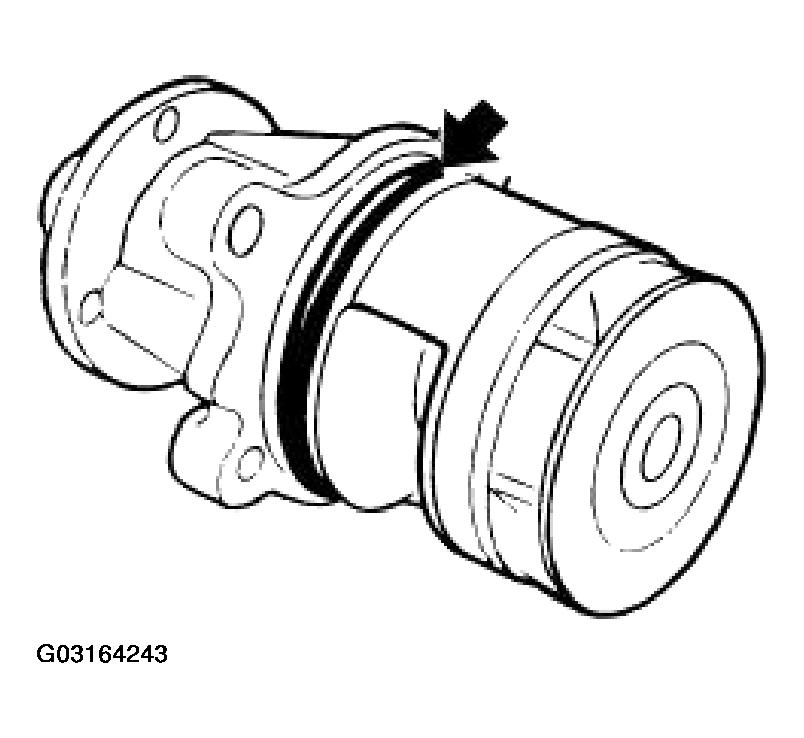

Fig 5: Replacing O-Ring And Coat With Coolant

Courtesy of BMW OF NORTH AMERICA, INC.
