51 42 001 Replacing left or right rear door trim

Removing and installing rear door trim, refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

Pull wooden strip backwards to remove.

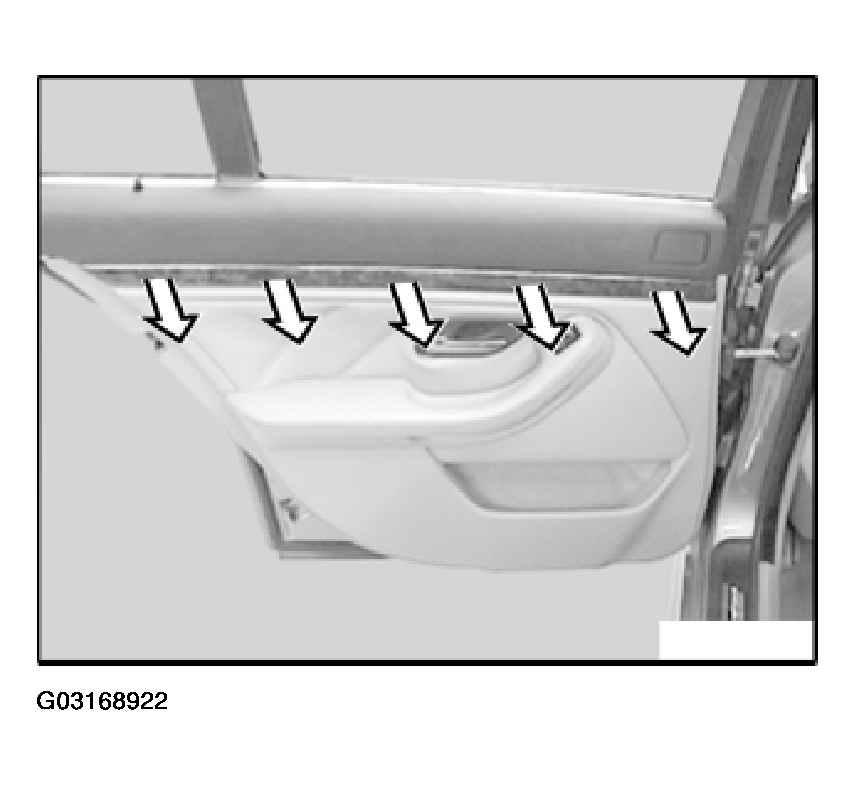

Fig 1: Pulling Wooden Strip Backwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace damaged clips and/or grommets for wooden strip.

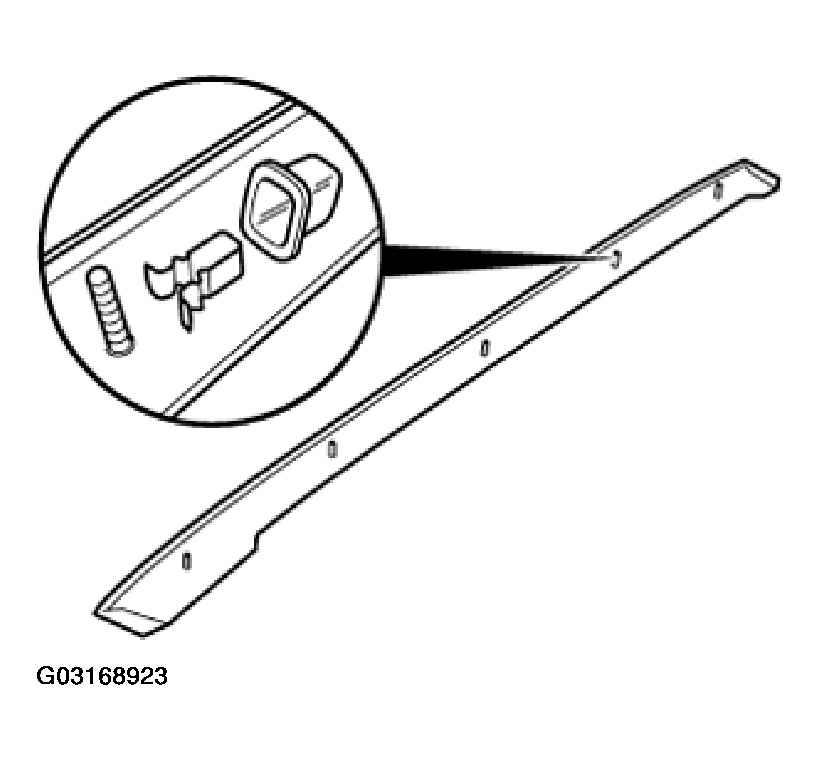

Fig 2: Replacing Damaged Clips And/Or Grommets For Wooden Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Version with loudspeaker:

If necessary, pull off retaining disks (1) and remove loudspeaker (2).

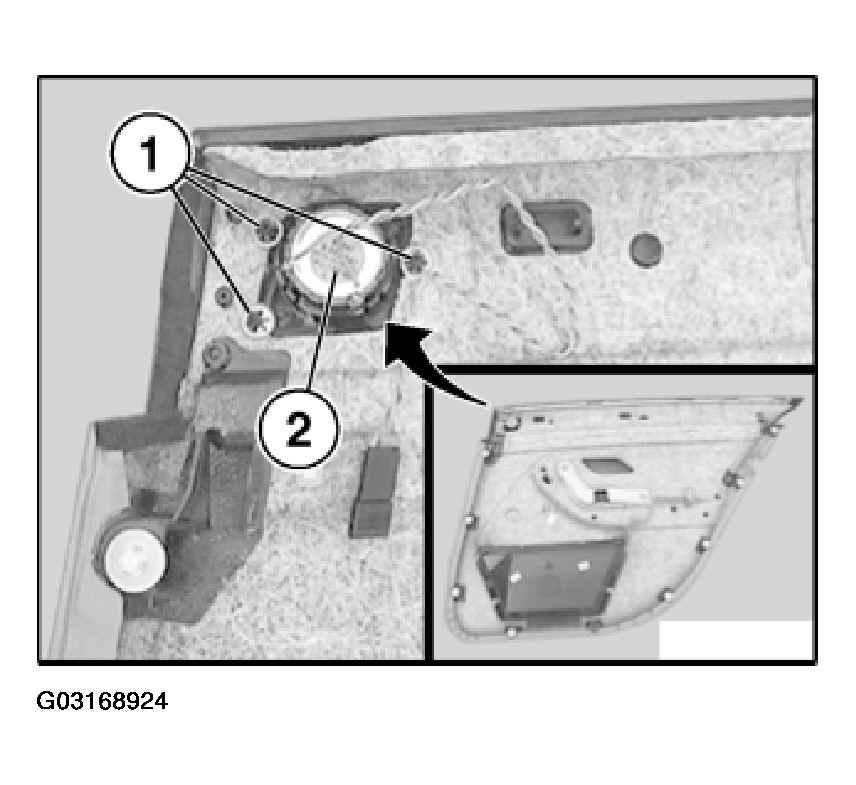

Fig 3: Removing Loudspeaker

Courtesy of BMW OF NORTH AMERICA, INC.
