ZKE 4
>>
Central Locking
>>
Lock Actuator Operation
>>
Unlocked - Neutral Position
Unlocked - Neutral Position

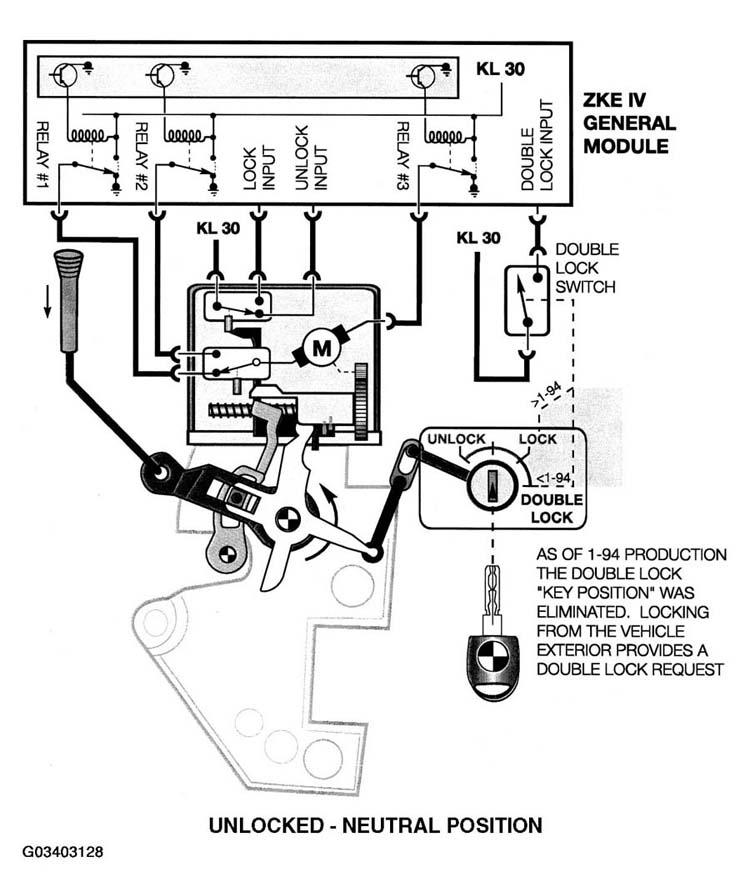

Fig 1: Identifying Unlocked-Neutral Position Of Lock Actuator
Courtesy of BMW OF NORTH AMERICA, INC.
All switch contacts are in their rest positions.
The lock actuator/latch mechanisms are in the unlocked position.
Raising the door handle or pulling the interior door latch will mechanically open the door.
