Unlock From Double Lock

When the GM receives the unlock request from a key location it activates internal relay #3 providing operating power to the actuator motor in the opposite direction.

The single and double lock circuits (internal relays 1 & 2) are not activated at all during the unlock function providing ground for the motor to bring the actuator back to the fully unlocked position.

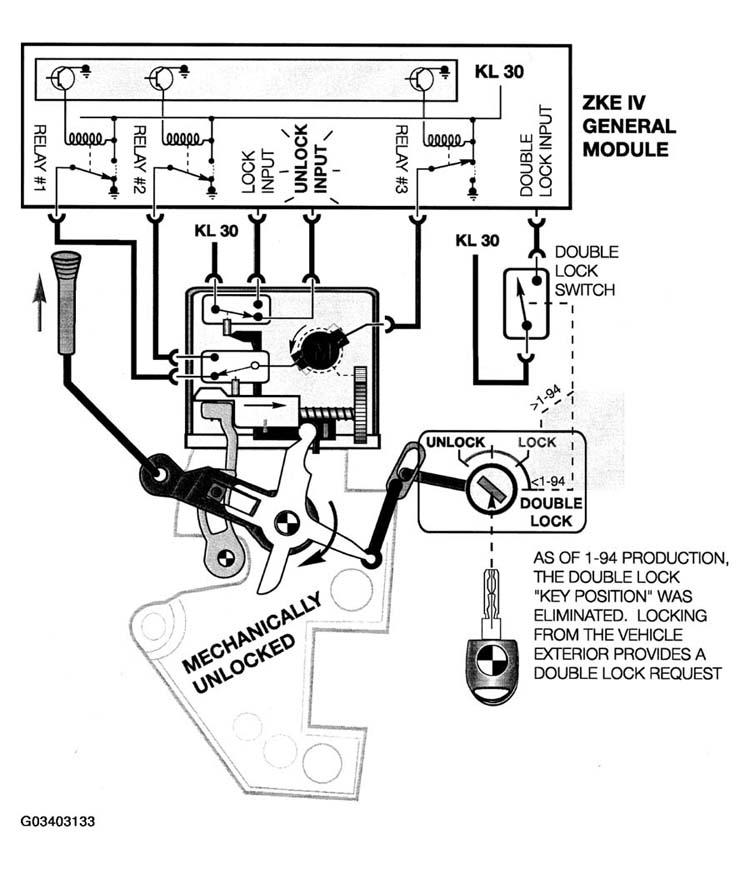

Fig 1: Unlocking Door Lock Actuator
G03403133Courtesy of BMW OF NORTH AMERICA, INC.
