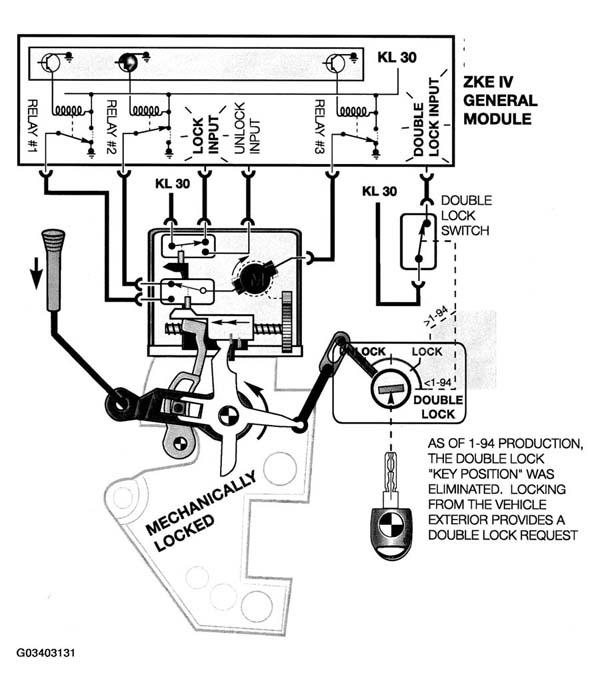

DOUBLE LOCK - Electrical Activation
Turning the key from any outside lock cylinder causes the external double lock micro-switch to close. The GM recognizes this high signal as a double lock request.
The GM activates internal relay #2, providing continued motor operating power through the closed contacts of the internal double lock circuit. Ground is provided through the GM's internal relay # 3. The actuator motors are energized until the internal double lock circuit is switched back to the single lock circuit by the gear driven slider.
