Power Distribution

The power distribution box which [ includes the fuses for the E36 and Z3 is located in the engine compartment.

A fuse designation label is also located on the inside lid of the fusebox. The label notes:

• Fuse rating in amps.
• Location.
• Circuit listing by fuse.

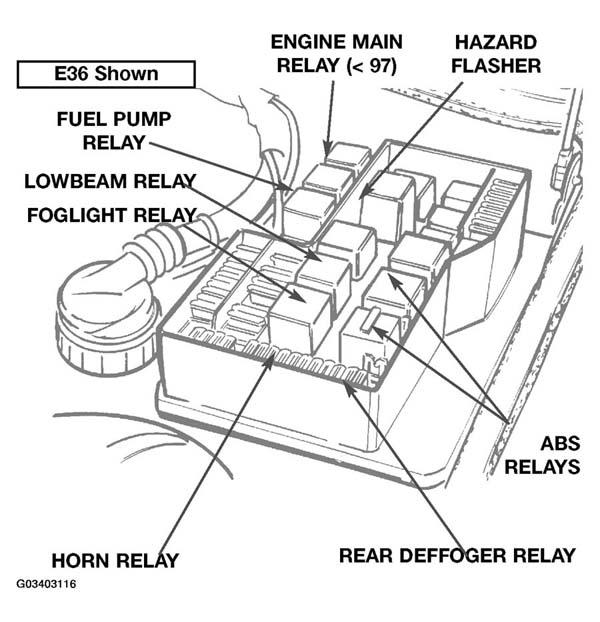

  Fig 1: Identifying Power Distribution Box

  Courtesy of BMW OF NORTH AMERICA, INC.

Located under and to the left of the steering column is:

• Check Control Module.
• Common connector plates (splice box).
• Window/Sunroof Relay.
• Crash Alarm Relay.

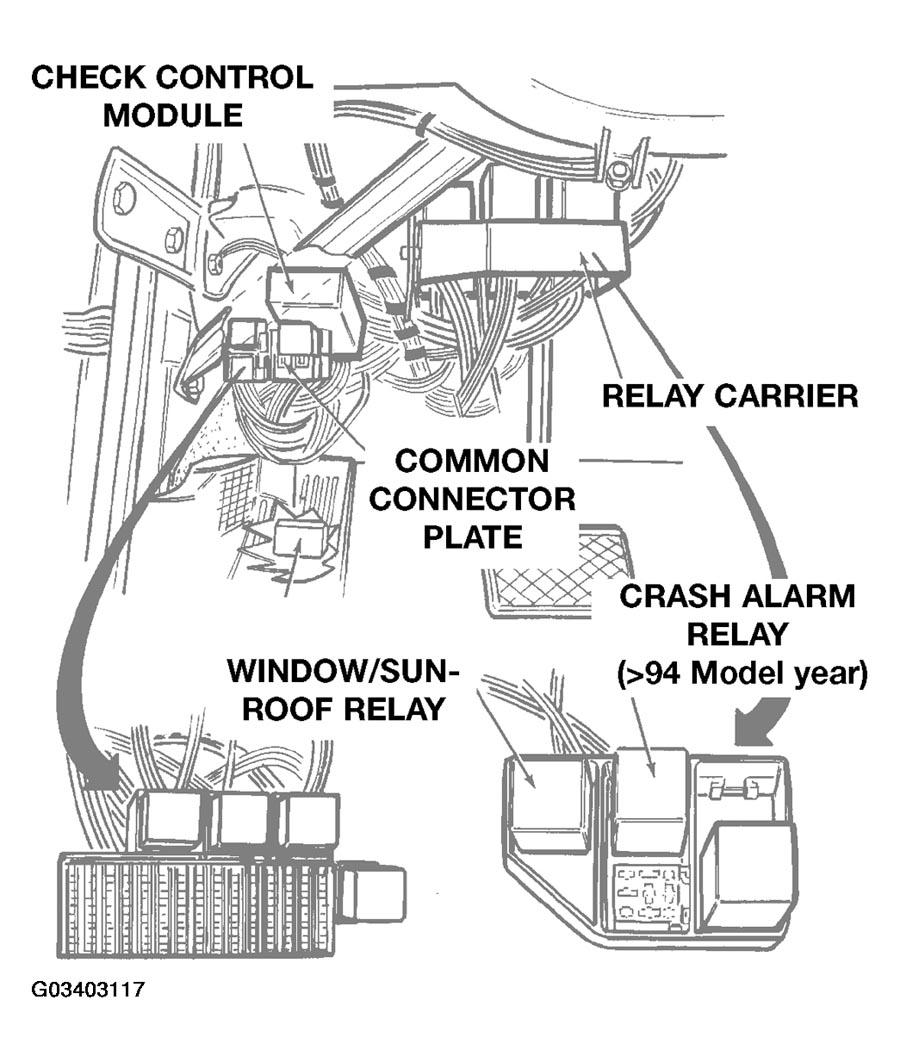

  Fig 2: Identifying Steering Column Power Distribution Box

  Courtesy of BMW OF NORTH AMERICA, INC.
