Base BC/Instrument Cluster Test Functions
In addition to the fault memory and diagnostic link, the base instrument cluster contains a series of test functions that can be accessed to check various functions and values. The test functions are displayed in the mileage LCD block. There are a total of 21 test functions. The test functions are similar to those of previous Board computers and contain similar tests.
- Tests 1 & 2 are always unlocked.
- Tests 3 -21 are only accessible after unlocking the test function. Test 19 is the unlock function for accessing the displays.

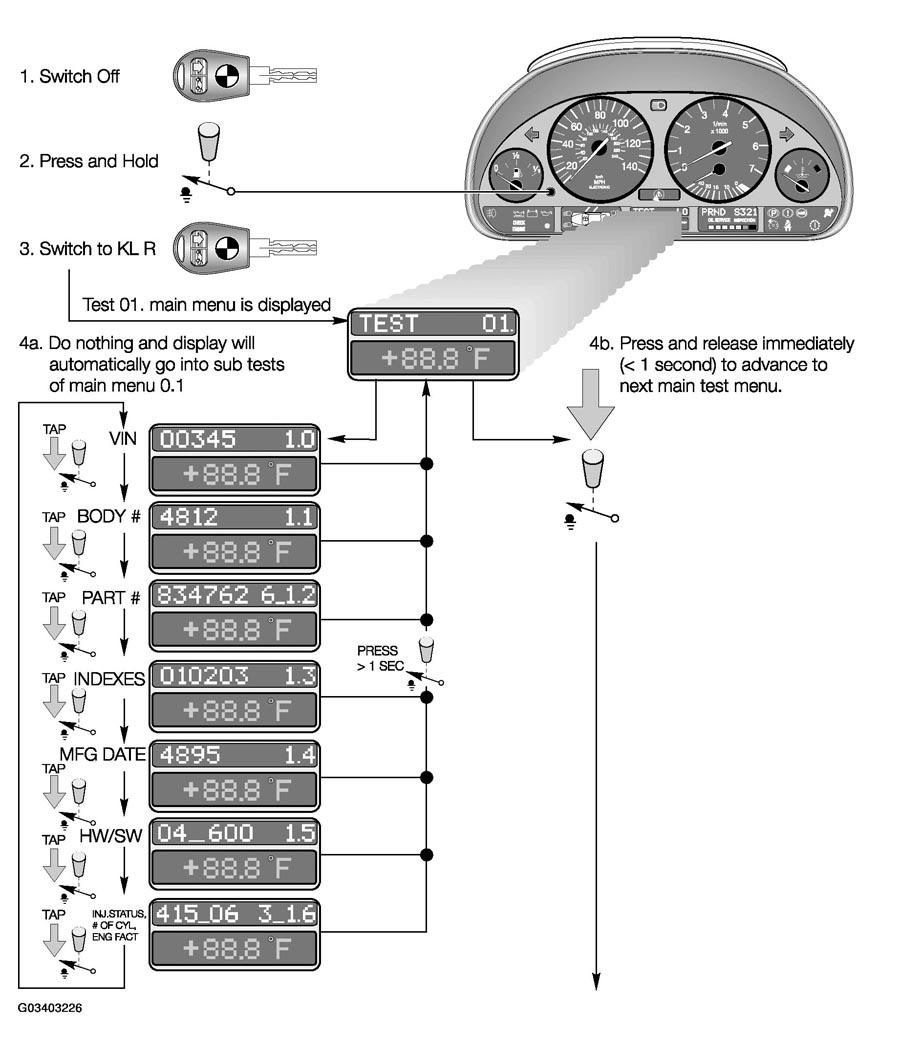

Scrolling through the numbered test functions is achieved by pressing the instrument cluster button when the test number is displayed.
- (press button) = test #2.
- 1.0 (press button) = sub-test #1.
This signals the BC to display the sub-tests of the displayed main test menu or continue on to the next main test menu.
TEST 01. - Vehicle specific data including:
SubTests:
12345 1.0 = VIN.
4812 1.1 = K-value.
834762 6_1.2 = Part number of cluster.
010203 1.3 = Coding/Diagnosis/Bus index.
3495 1.4 = Manufacturing date (calendar week/year).
04_600 1.5 = Hardware/software # of cluster (HW:04, SW:6.00).
415_06 3_1.6 = Injection status, number of cylinders, engine factor.
TEST 02. - Cluster System Test - activates the gauge drivers, indicators and LEDs to confirm function.
TEST 03. - SI data.
Sub Tests:
1500 3.0 = Liters
0 3.1 = Periodic inspection days (not applicable for US).
TEST 04. - Momentary Consumption.
Sub Tests:
0267 4.0 = 26.7 liters/1000km.
0073 4.1 = 7.3 liters per hour.
TEST 05. - Distance Gone Consumption.
Sub Tests:
0195 5.0 = 19.5 liters/100 km.
226 5.1 = momentary distance to go (226km).
TEST 06. - Fuel level sensor inputs in liters.
Sub Tests:
237415 6.0 = Fuel level averaged.
- LH sensor input = 23.7 liters.
- RH sensor Input = 41.5 liters.
0652 6.1 = Total tank level averaged = 65.2 liters.
0667 1_6.2 = Indicated value and tank phase.
- 1 = both sensors OK.
- 2 = one sensor fault.
- 3 = implausible input.
TEST 07. - Temperature and Speed
Sub Tests:
032 7.0 = Coolant temp input 32°C.
245 7.1 = Outside temp input 24.5°C.
5283 7.2 = Engine speed 5,283 RPM.
058 7.3 = Vehicle speed 58km/H.
TEST 08. - Input values in HEX form.
Sub Tests:
XXX 8.0 -- 8.3 = Hex code, Instrument cluster inputs.
TEST 09. - Battery voltage.
Sub Test:
125 9.0 = 12.5 volts.
TEST 10. - Country Coding.
Sub Test:
02 10.0 = US 02.
TEST 11. - Cluster code.
Sub Test:
000003 11.0 = Cluster code.
TEST 12. - Not used.
TEST 13. - GONG test.
Sub Test:
Gong 13.0 = Activate gong by pressing button (gong response is delayed).
TEST 14. - Fault memory (not for diagnosis).
TEST 15 to 18 - Not used.

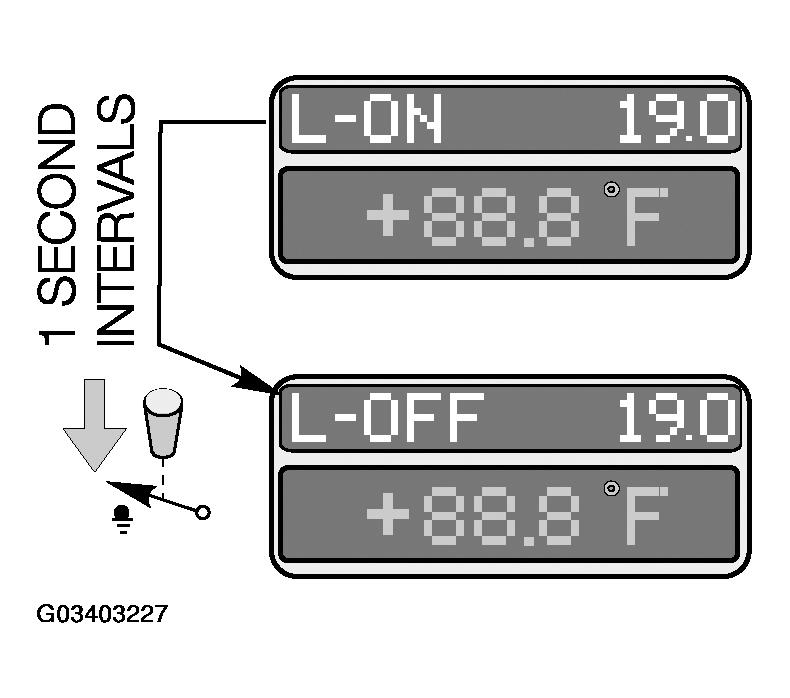

TEST 19. - LOCK/UNLOCK.
Sub-Tests
L-ON...
L-OFF 19.0 =
Display changes from "L-ON" to "L-OFF" every second. To unlock test functions, press the cluster button immediately when it changes to "L-OFF". Tests are automatically locked when exiting test functions.
TEST 20. - Average fuel consumption - correction factor
The factor follows previous systems, with adjustment range of 750 to 1250. The adjustment method is new for the base cluster. If adjustment is necessary, enter into test 20 using the cluster button.
The correction factor number is changed by using the sub-tests for the "ones, tenths and hundreds of the factor number. The digits will automatically scroll through 0-9 within each group (ones, tenths, hundreds).
Sub-Tests:
20.0 = Press the button to reset display to 1000
XXX9 20.1 = Press the button when the correct "ones" position is attained.
XX5X 20.2 = Press the button when the correct "tenths" position is attained.
12XX 20.3 = Press the button when the correct "hundreds" position is attained.
TEST 21. - Software reset
Sub-Test:
reset 21.0 = Reset software
