51 24 100 Removing and installing/replacing trunk lid lock (upper section of trunk lid lock)

Lift out Omega clip (1).

Disconnect connector (2).

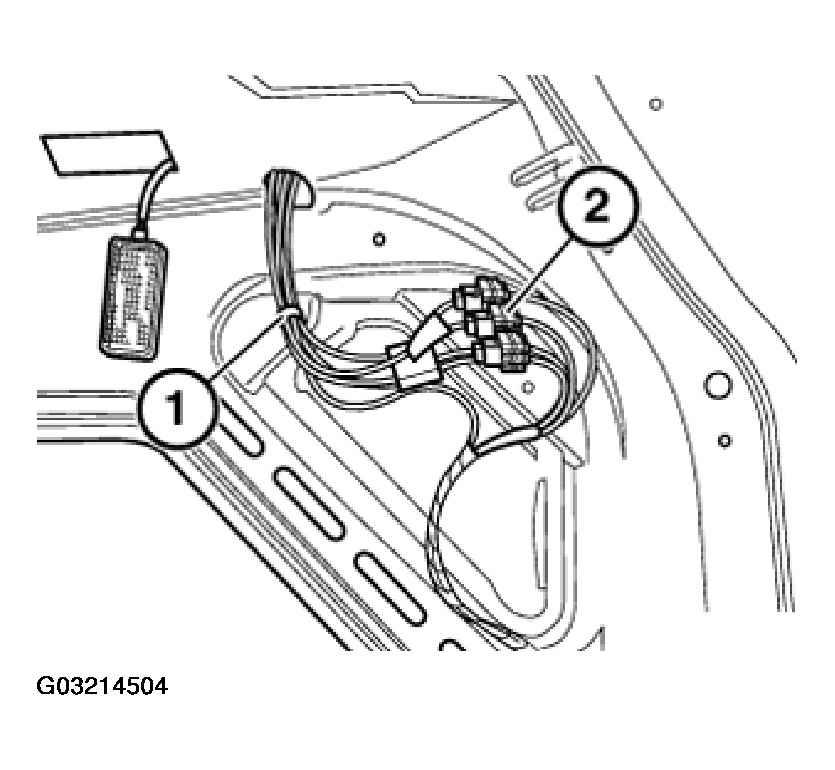

Fig 1: Disconnecting Connector & Omega Clip

Lift out actuating rod (1).

Unfasten screws and remove upper section of trunk lid lock.

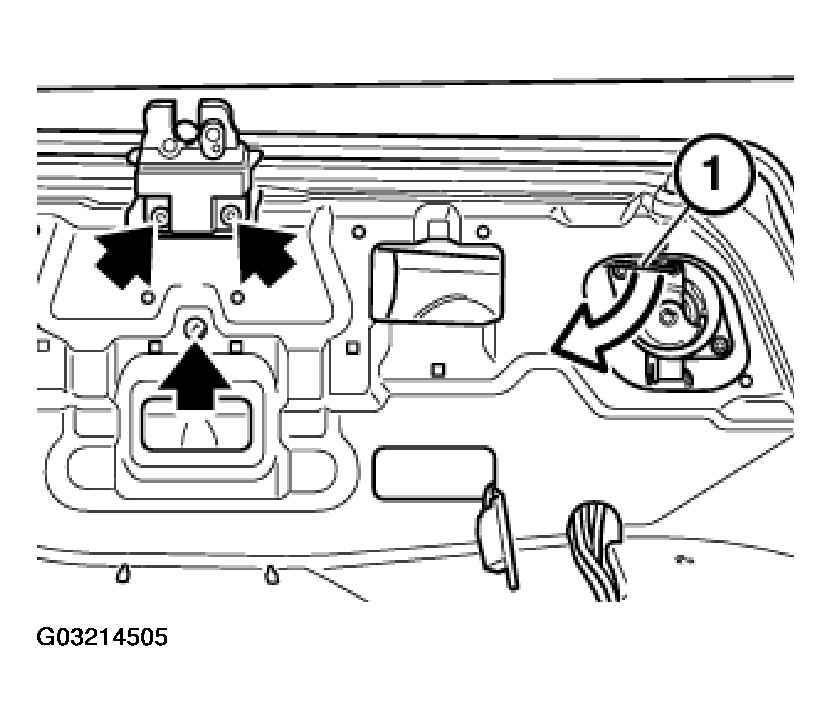

Fig 2: Removing Actuating Rod & Upper Section Of Trunk Lid Lock

Installation:

Perform function check with trunk lid open.

Adjust upper section of trunk lid lock (work is described under "adjusting trunk lid to fit"), refer to 41 62 014 ADJUSTING TRUNK LID TO FIT .

Fig 3: Identifying Caution Mark

Only replace:

Lift out actuating rod (1).

Cut through cable connector (2) and remove micro-switch (3).

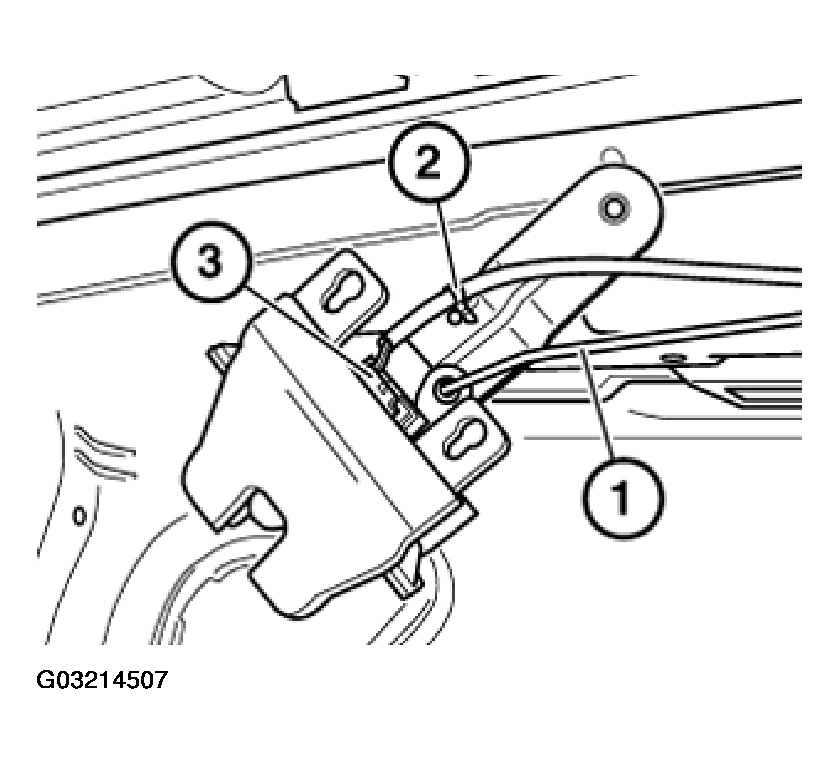

Fig 4: Removing Actuating Rod & Micro Switch
