Layout of rear bumper, bumper carrier and retaining elements

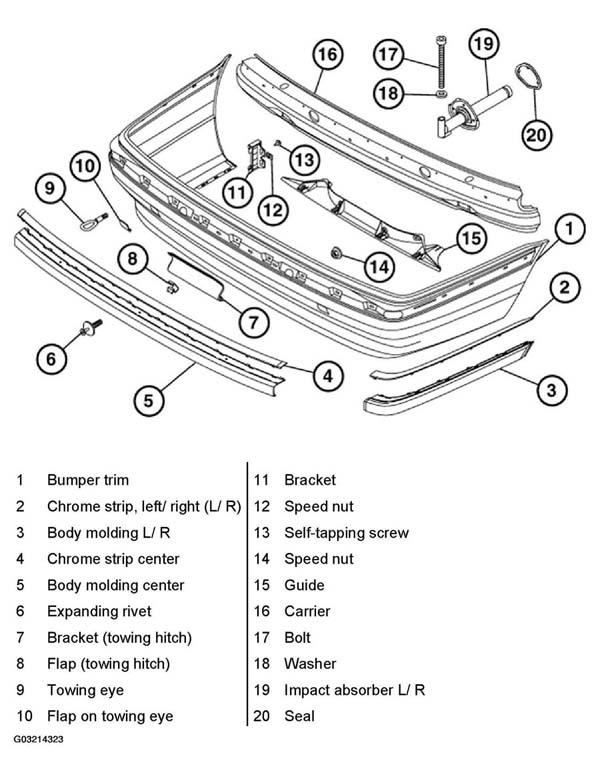

Fig 1: Layout Of Rear Bumper, Bumper Carrier & Retaining Elements
G03214323

Lift cover off towing eye (1) with catch band.

Lift out expanding rivets (2).

Lift out expanding rivets (3) and pull bracket (4) backwards to remove.

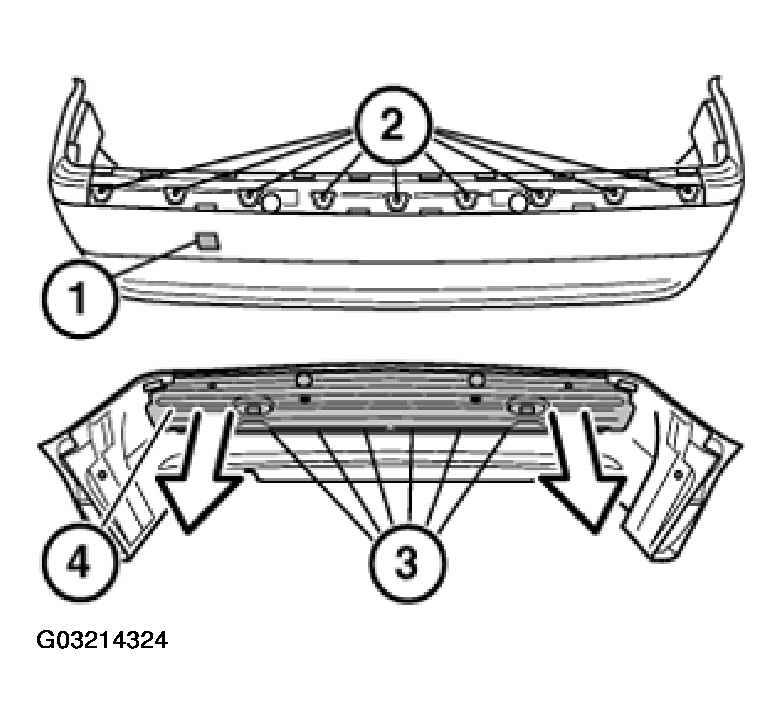

Fig 2: Lifting Out Expanding Rivets & Pulling Bracket
G03214324
