63 99 487 Replacing bulb for inside door handle light, front left or right

Remove door trim panel, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Disconnect LED with cable (1) from light housing (2).

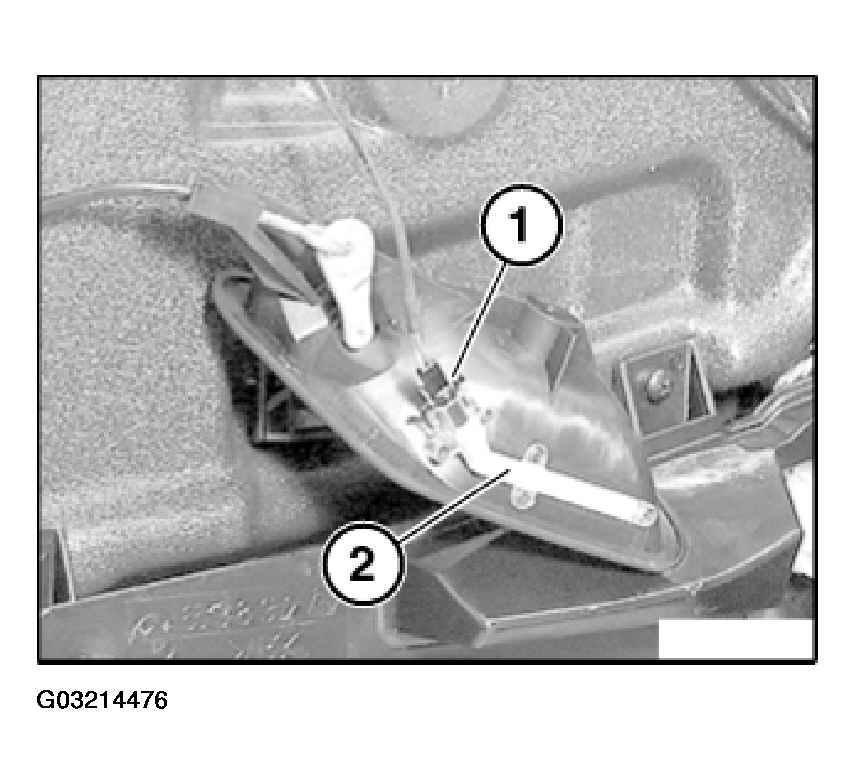

Fig 1: Disconnecting Led With Cable From Light Housing

Cut LED cable (1) to length (A) from door wiring harness.

(A) = 10 cm

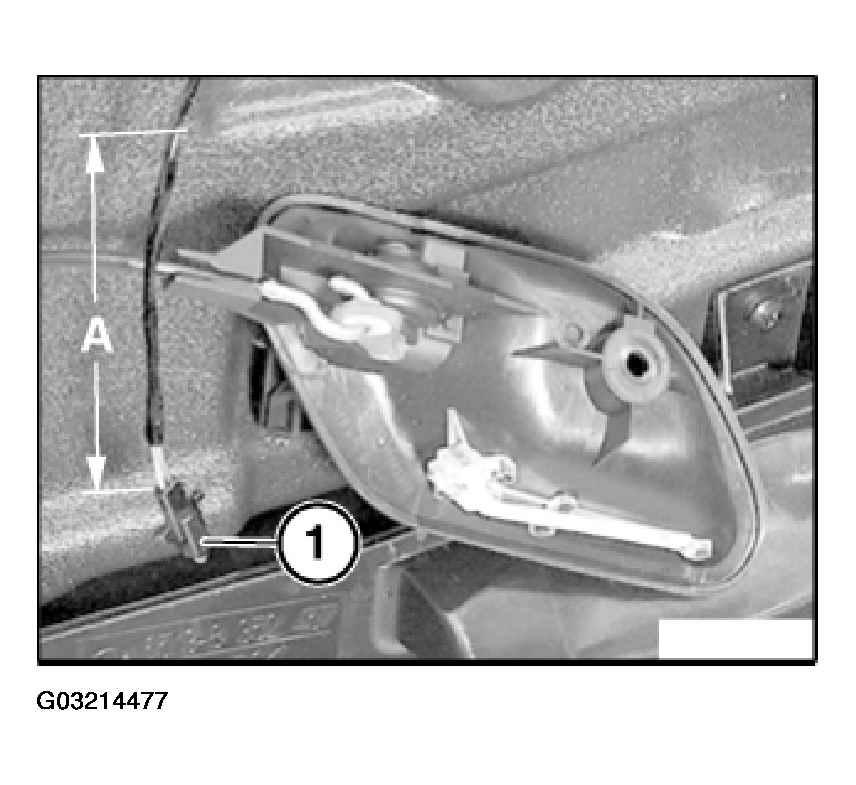

Fig 2: Identifying Length For Cutting LED Cable

Cut cable ends on LED spare part (sourcing reference: BMW Parts Service) to length (B).

(B) = 16cm

According to wiring harness repairs, connect door wiring harness and LED cable with butt connectors and shrinkable tubes.

Secure repair area on door wiring harness in position.

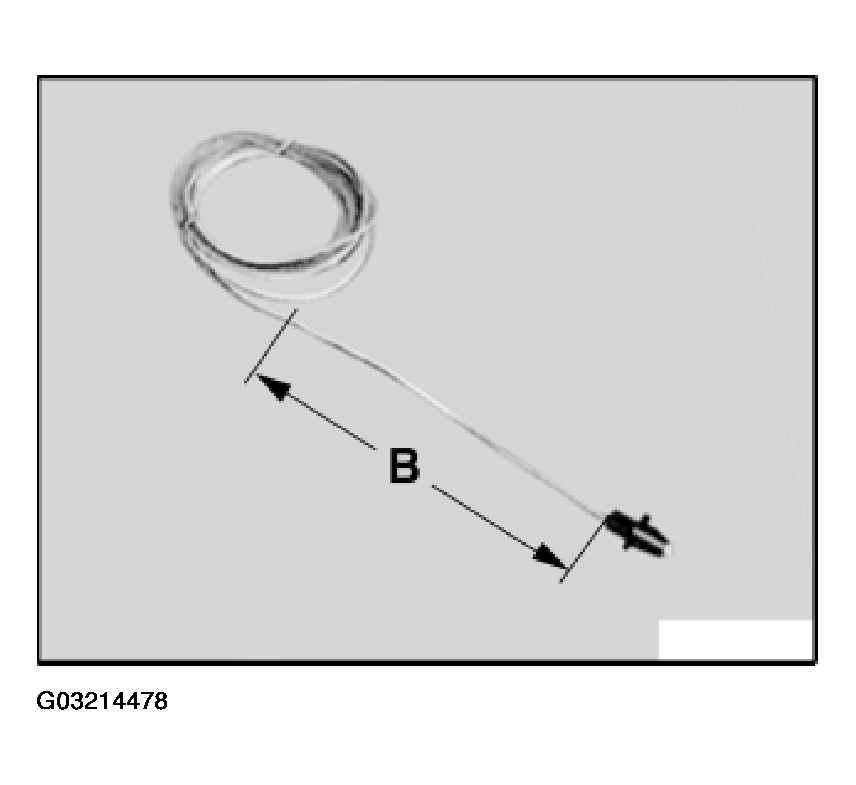

Fig 3: Identifying Dimension For Cutting Cable Ends On LED Spare Part
