Mobile phone:

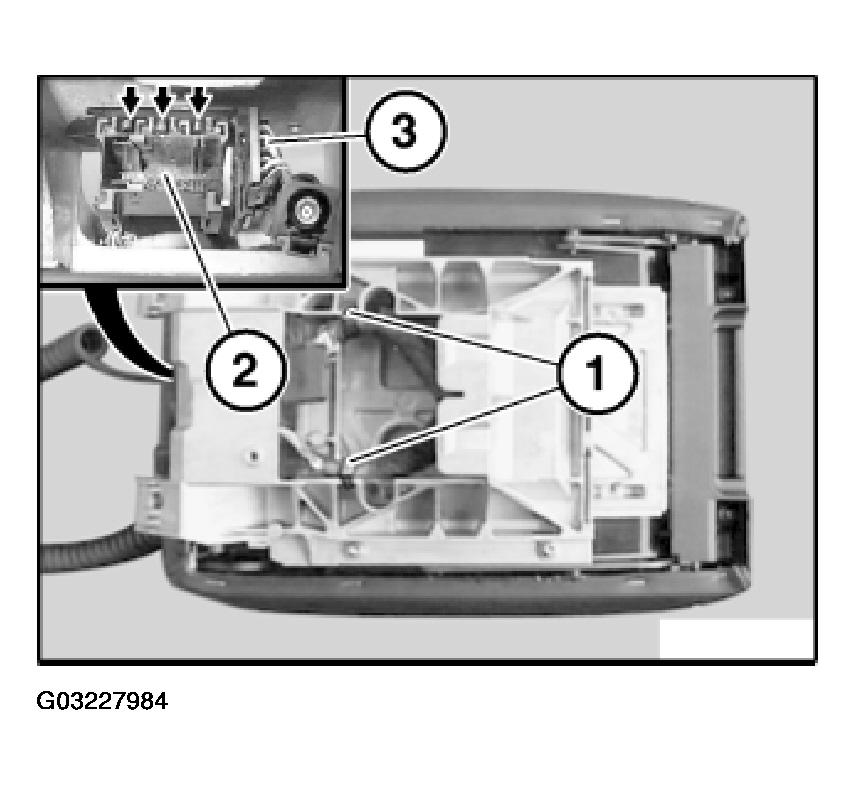

Cut through cable ties (1).

Unlock plug housing (2) and unclip.

Unclip plug connection (3) and disconnect.

Fig 1: Disconnecting Plug Connection
G03227984

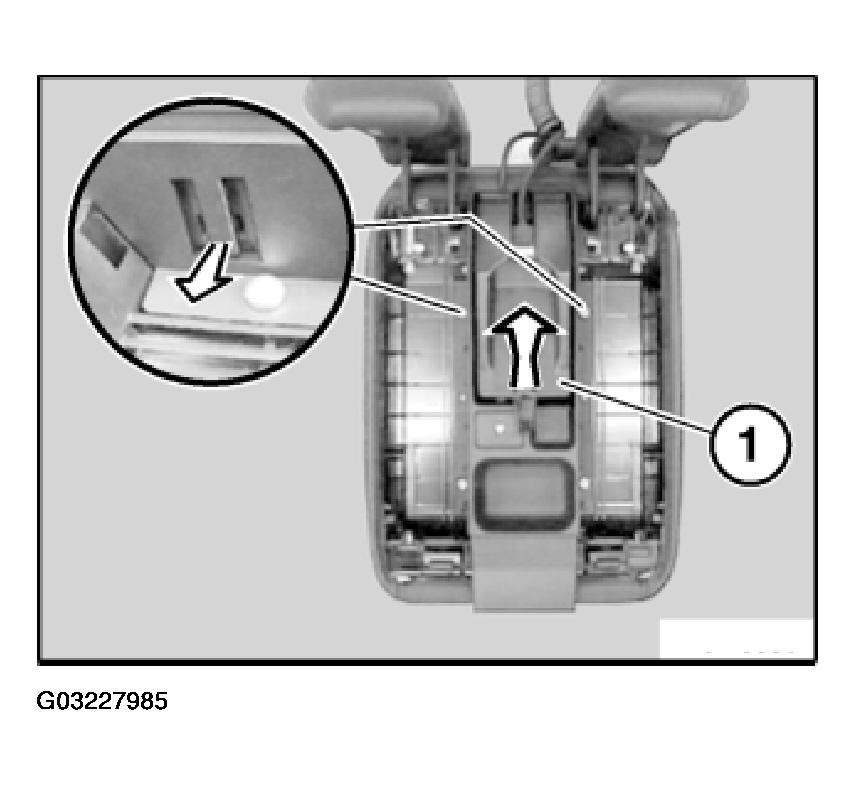

Unlock eject box (1) and remove in direction of arrow.

Fig 2: Unlocking Eject Box
G03227985

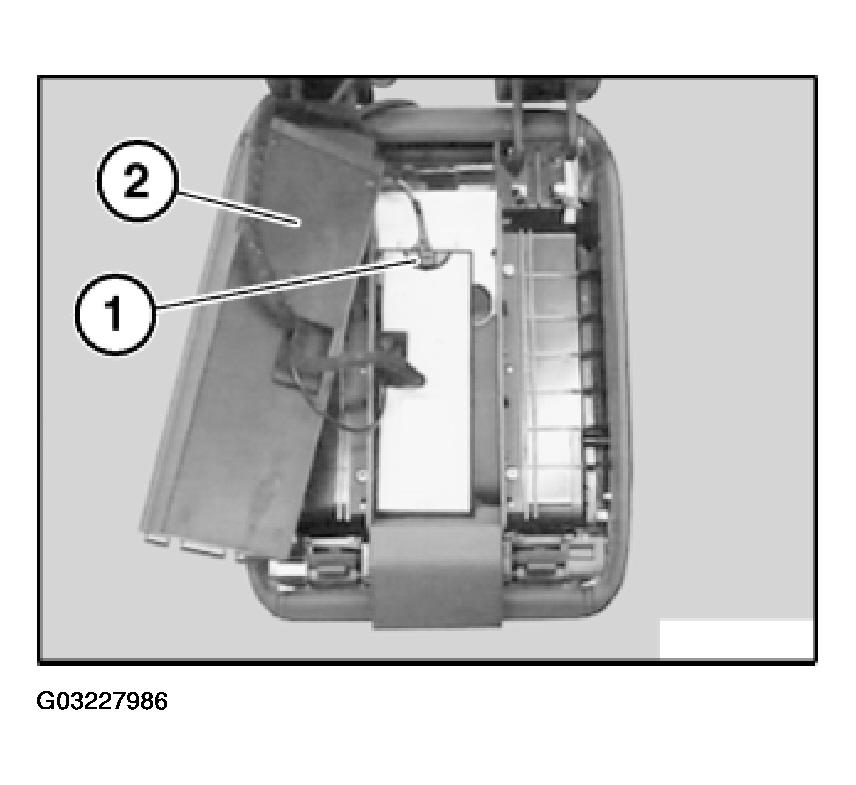

Disconnect plug connection (1).

Remove eject box (2).

Fig 3: Removing Eject Box
G03227986
