Car phone, fixed mounting:

Press together clips and remove plug.

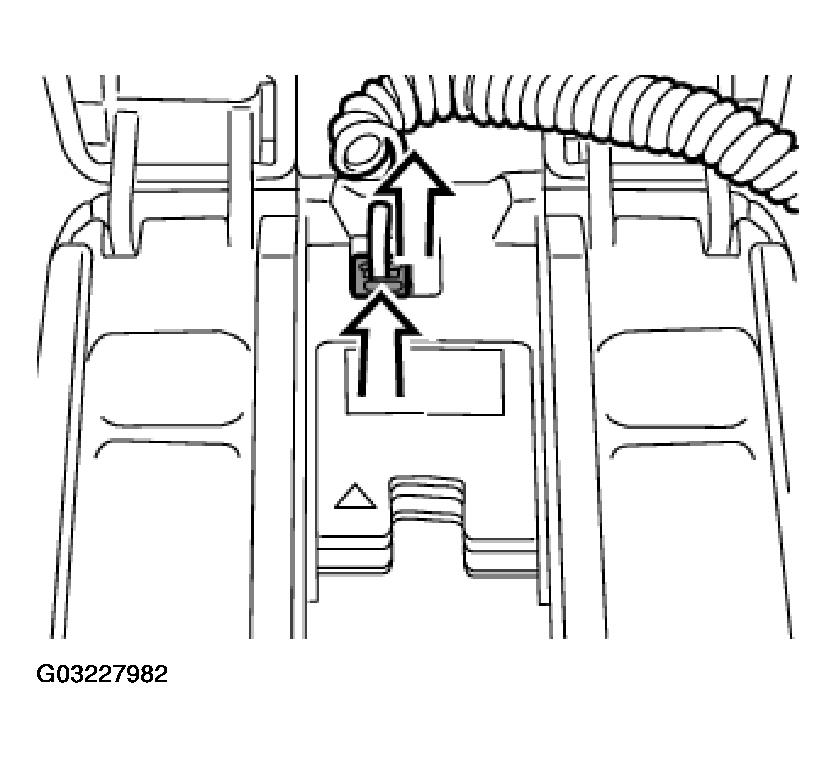

Fig 1: Removing Plug

G03227982

Unfasten screws and lever out eject box.

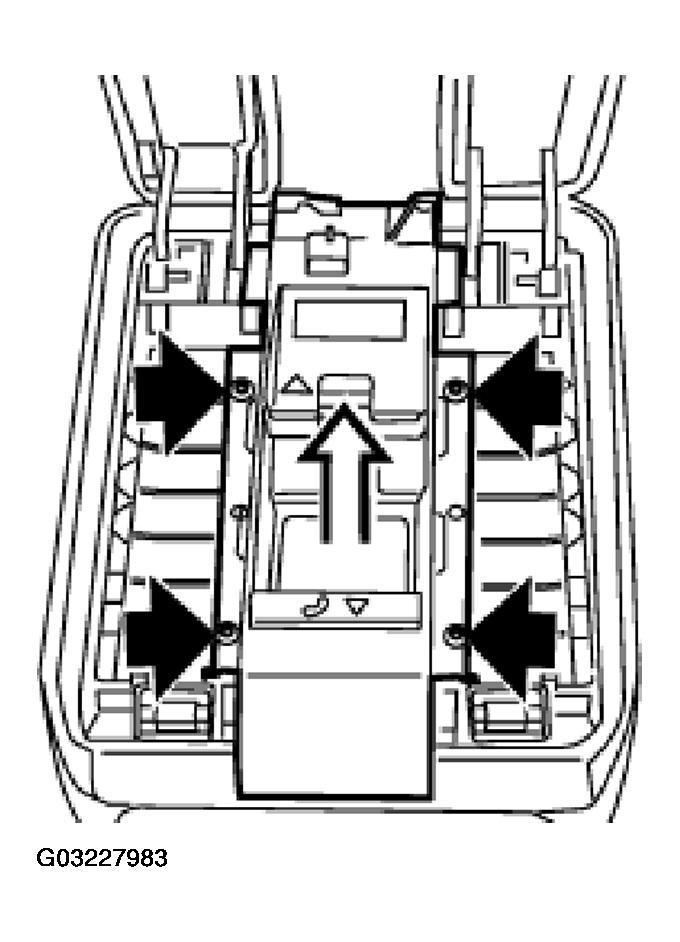

Fig 2: Removing Eject Box

G03227983
