51 34 160 Removing and installing/replacing cover (trapping protection) on door window frame (rear door), inside left or right

Remove and install cover on fixed door window of inside rear door.

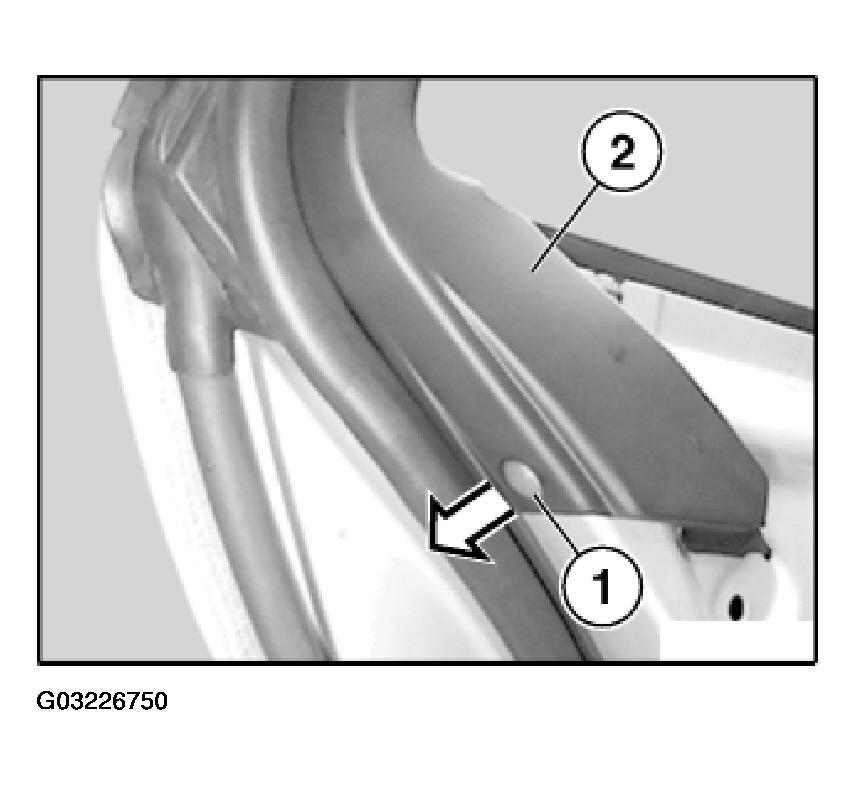

Lever rivet (1) out of cover (2).

Fig 1: Removing Cover On Fixed Door Window Of Inside Rear Door
G03226750

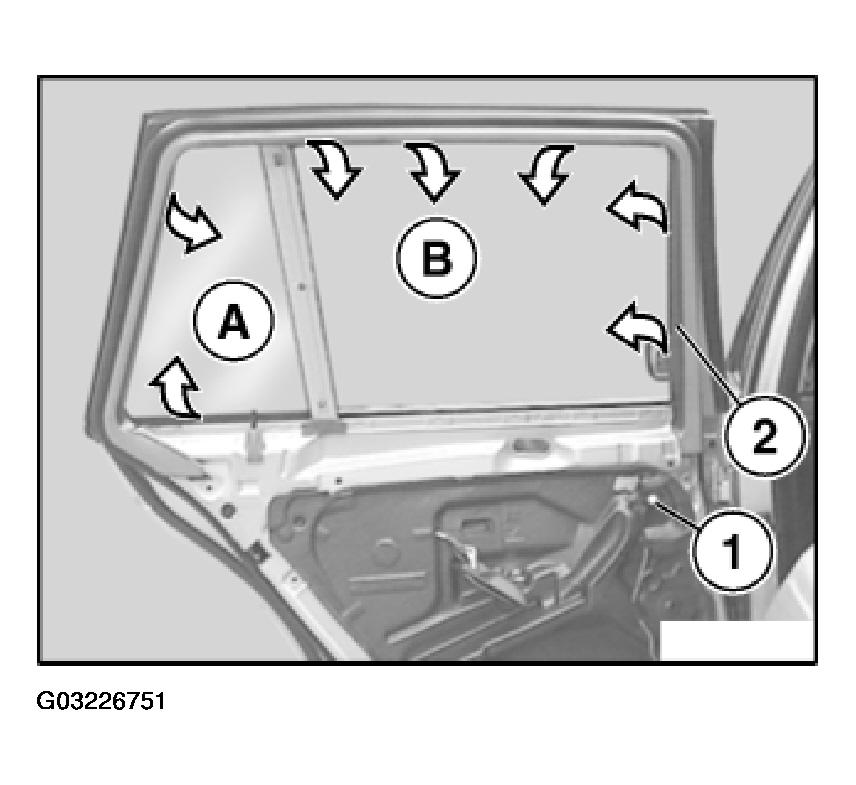

Disconnect connector (1).

Lever out cover (2) first at rear (A), then at top (B) and then at front (C) and remove.

Installation:

Check function.

Fig 2: Checking Function
G03226751
