51 12 432 Replacing central body molding on rear bumper

Lift out body molding at sides with special tool 00 9 321 (folding strut) and lift backwards/upwards to remove from clips (1).

Version without Park Distance Control (PDC):

Remove body molding.

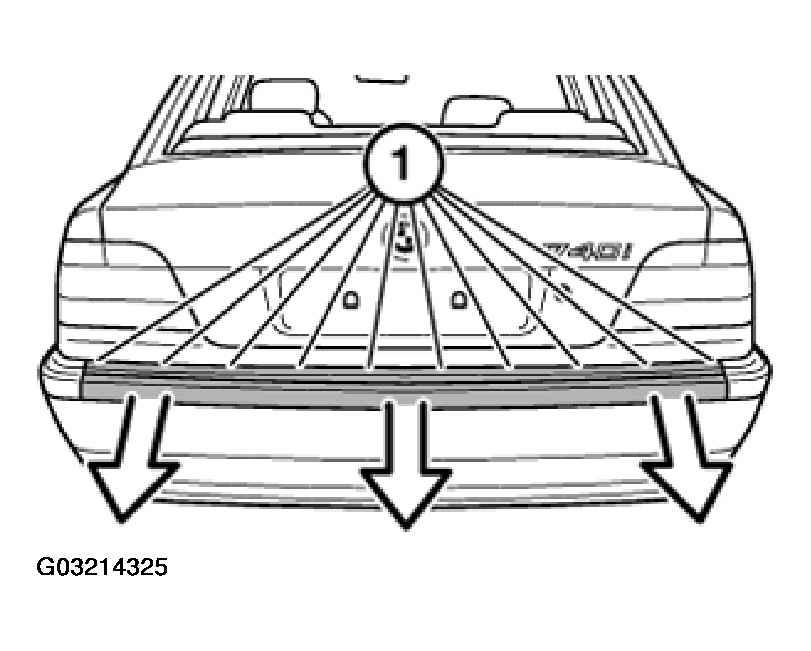

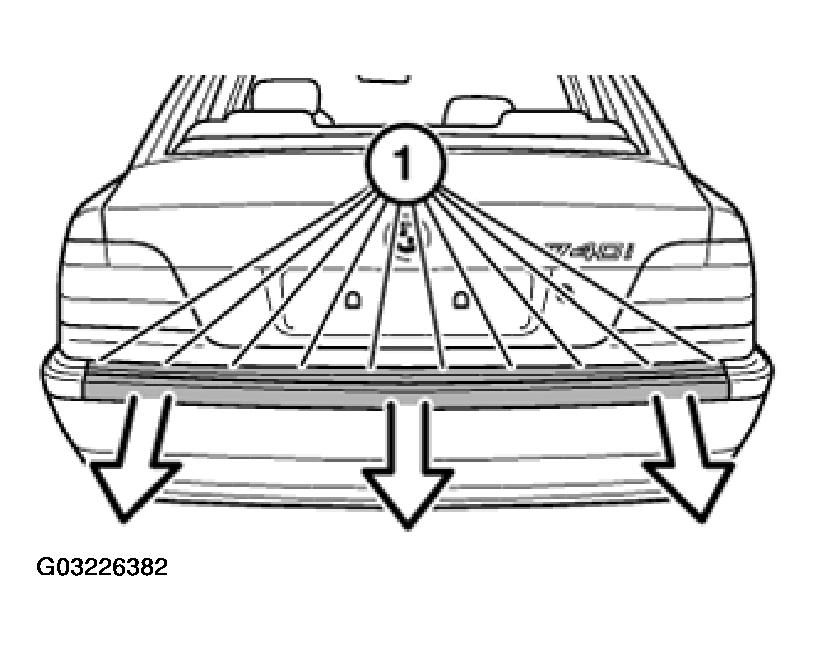

Fig 1: Removing Body Molding

Version with Park Distance Control (PDC):

Release detents (1), pull off ultrasonic converter (2) with connector and remove body molding.

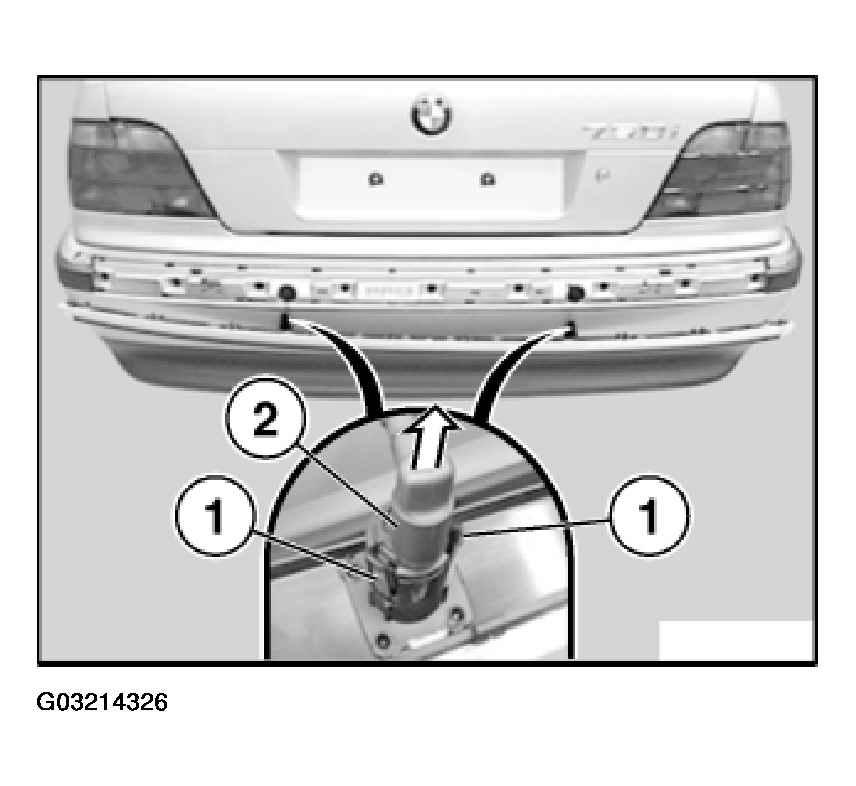

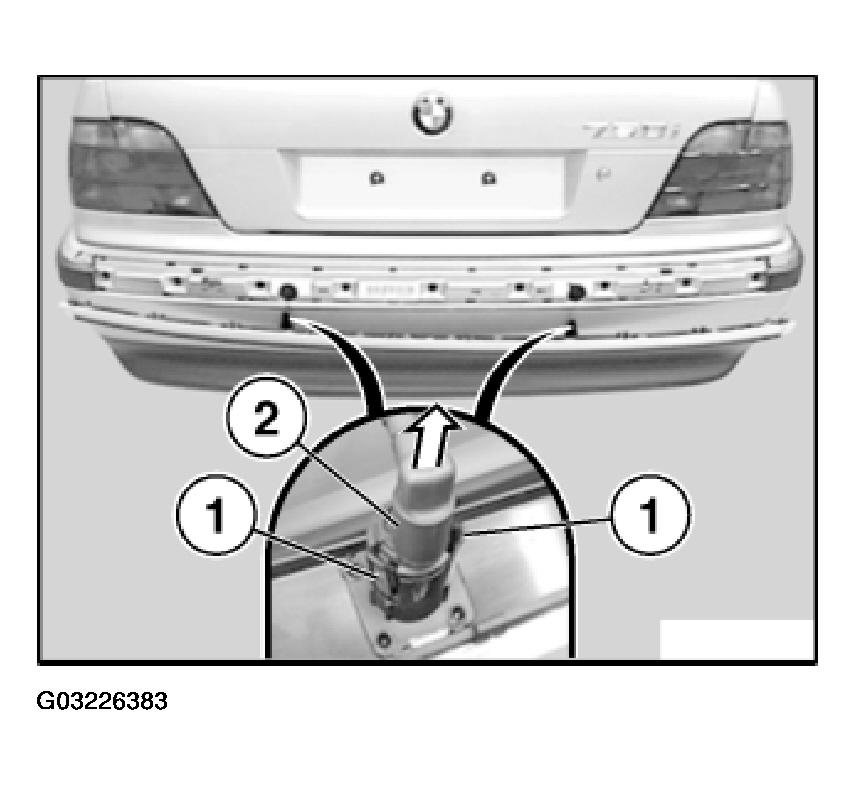

Fig 2: Releasing Detents Pull Off Ultrasonic Converter

Unclip and remove chrome finisher from body molding.

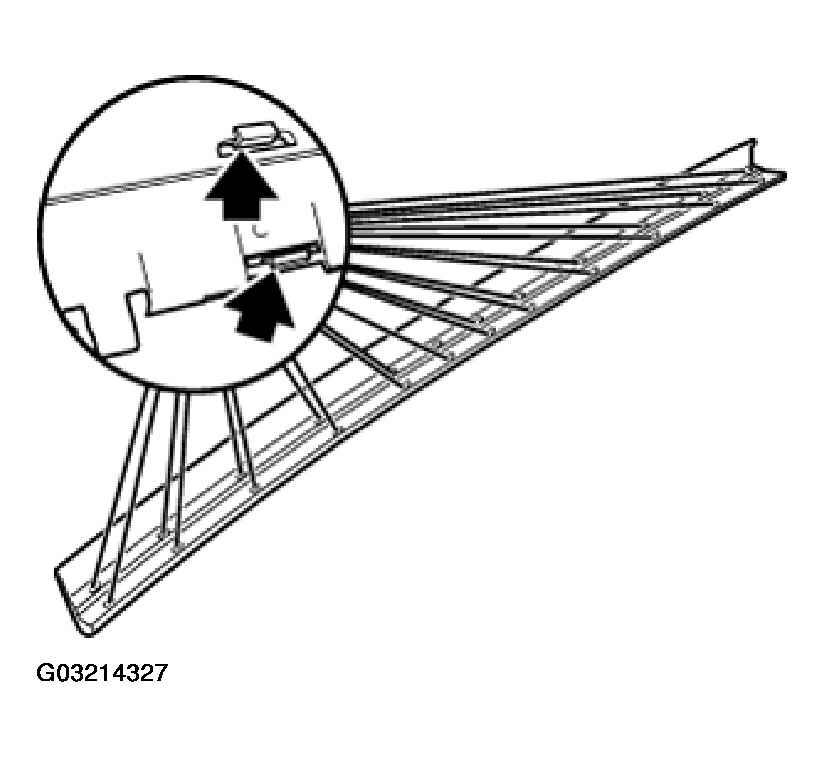

Fig 3: Removing Chrome Finisher From Body Molding
