51 16 026 Replacing mirror glass

NOTE: With the E38, BMW offers a choice of normal mirror glass or mirror glass with automatic dip action (electro-chrome technology). The removal procedure differs from one type of mirror to another (risk of damage).

Mirror without automatic dip action: The mirror glass does not have a plastic frame.

IMPORTANT: Make sure car has room temperature to prevent the clips from breaking off.

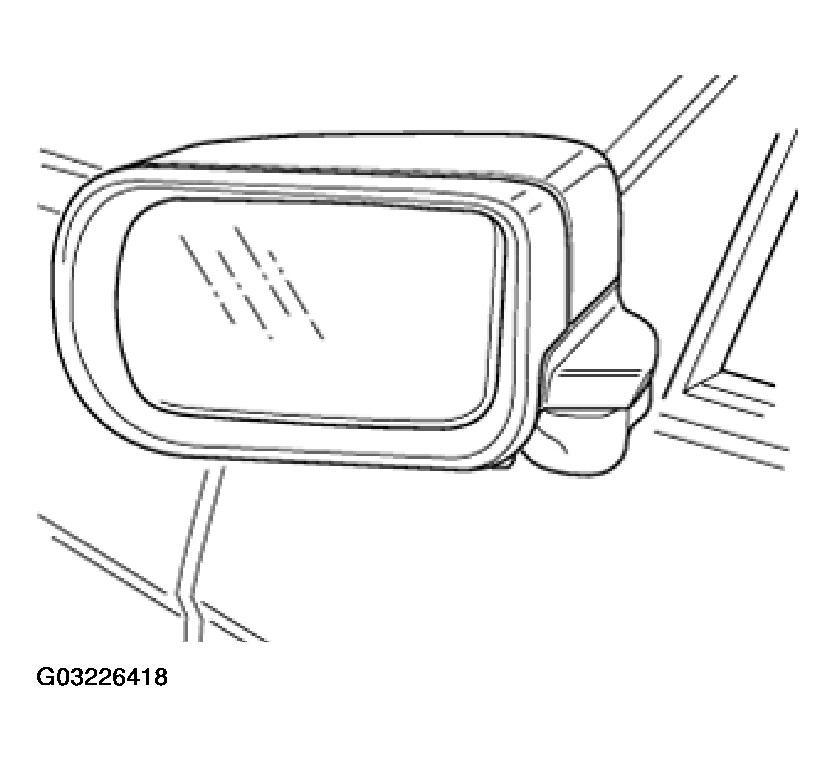

Fig 1: Identifying Mirror Glass

Tilt mirror glass.

Remove cement between mirror glass and edge of housing (risk of damage).

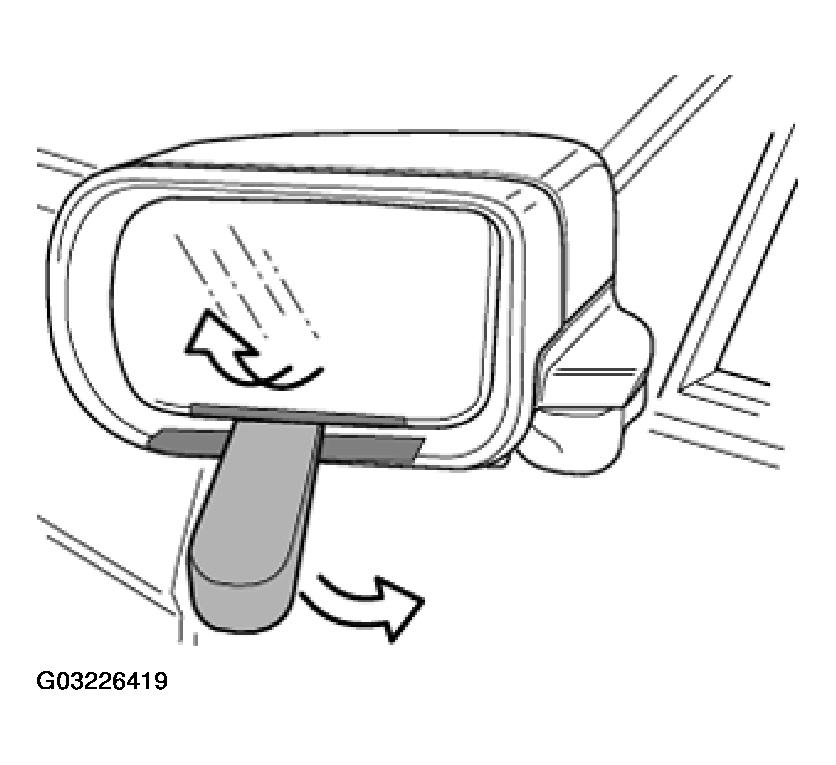

Unclip mirror glass using a wooden wedge.

Fig 2: Unclipping Mirror Glass Using A Wooden Wedge

If applicable, remove connector (mirror glass heating) and remove mirror glass.

Installation:

Install mirror glass that clips are seated on tabs and clip on glass. Ensure correct engagement.

Fig 3: Installing Mirror Glass Clips

Check function.

Mirror with automatic dip action:

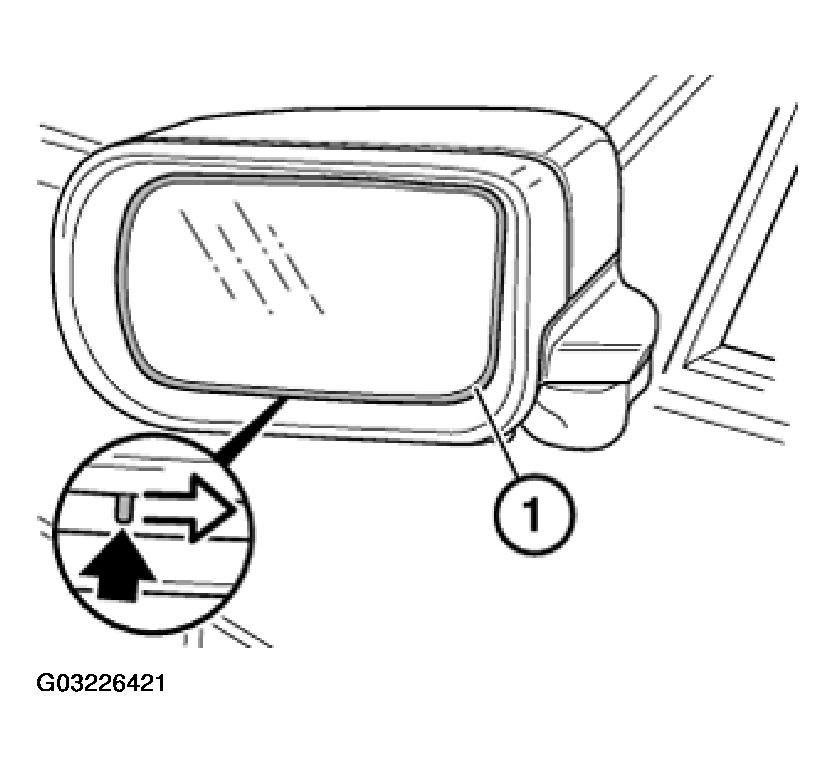

Slide journal to right (bayonet connection) and carefully lift off mirror glass (1).

Fig 4: Identifying Mirror With Automatic Dip

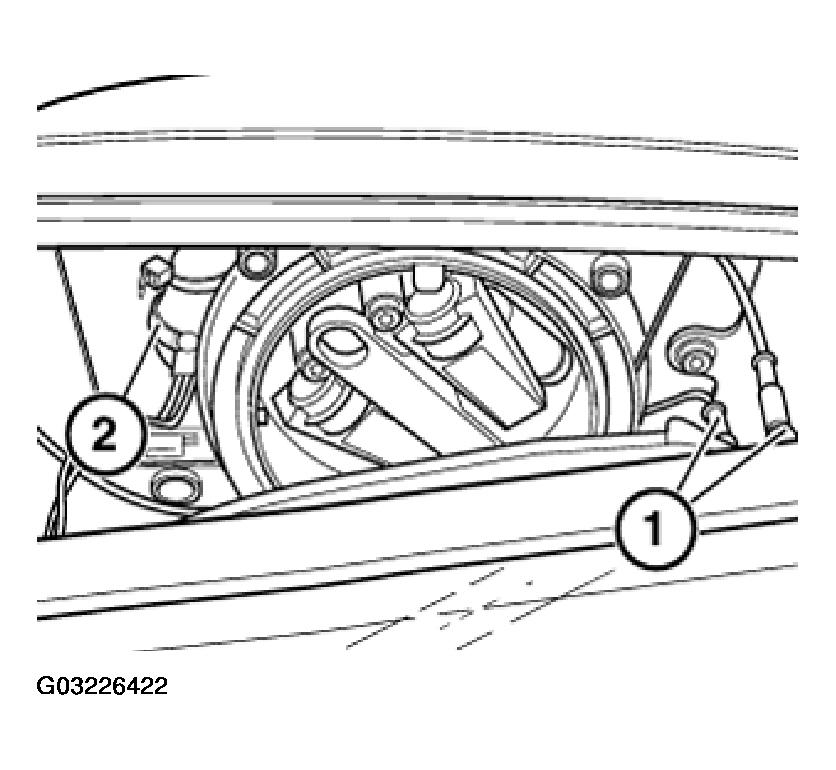

If applicable, remove connector (1) (mirror glass heating).

Unlock connector (2) (only 1 detent hook at front) and pull downwards to remove.

Fig 5: Removing Connector

Installation:

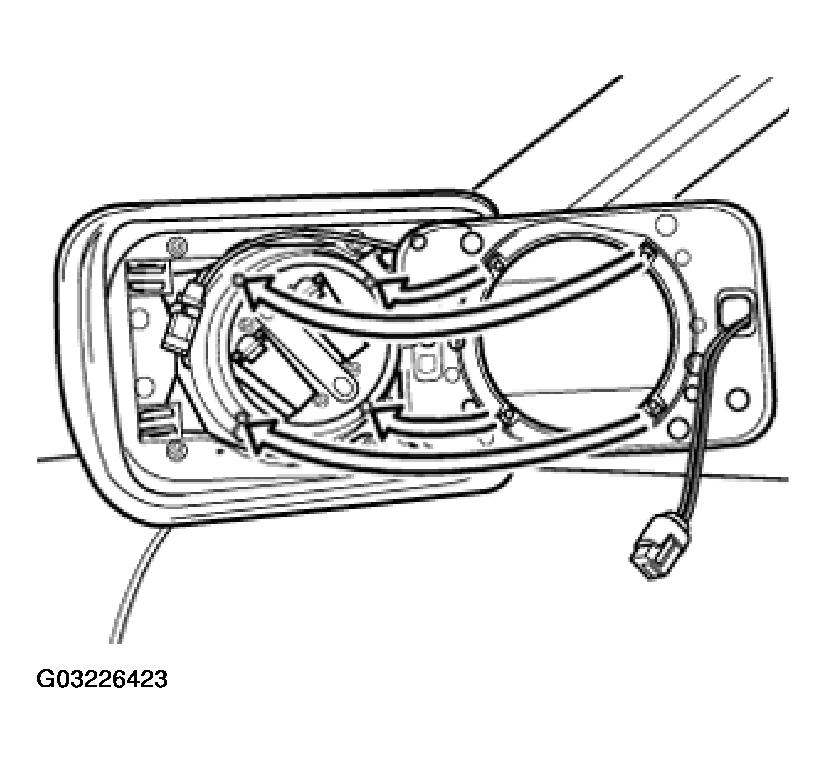

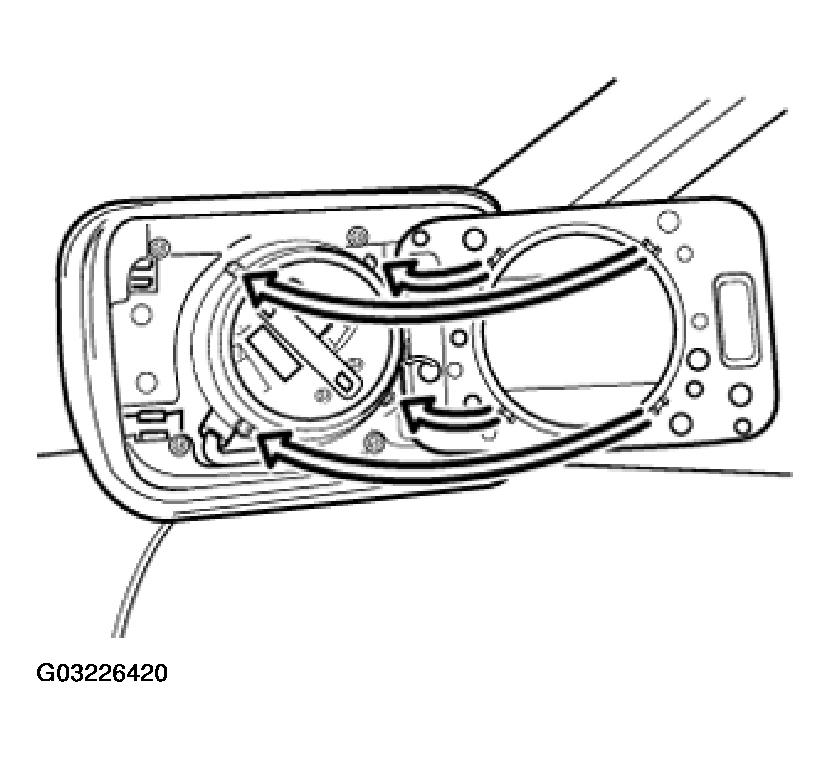

Place mirror glass with apertures over lugs.

Fig 6: Placing Mirror Glass With Apertures Over Lugs

Slide pin to left until pin is perpendicular.

Check function.
