51 11 170 Replacing body molding for left or right bumper

CAUTION: If a headlight cleaning system is fitted, the bumper must be removed to enable the spray nozzles to be removed (risk of damage), refer to 51 11 001 REPLACING FRONT BUMPER .

Unclip body molding with hardwood wedge and remove, first from front (1), then from side (2).

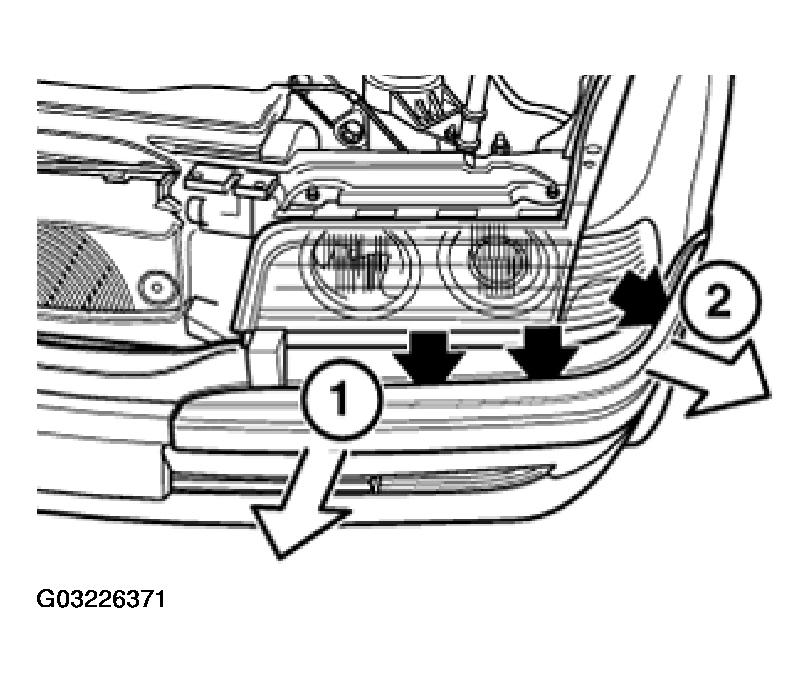

Fig 1: Removing Body Molding For Left Or Right Bumper

Unclip and remove chrome finisher from body molding.

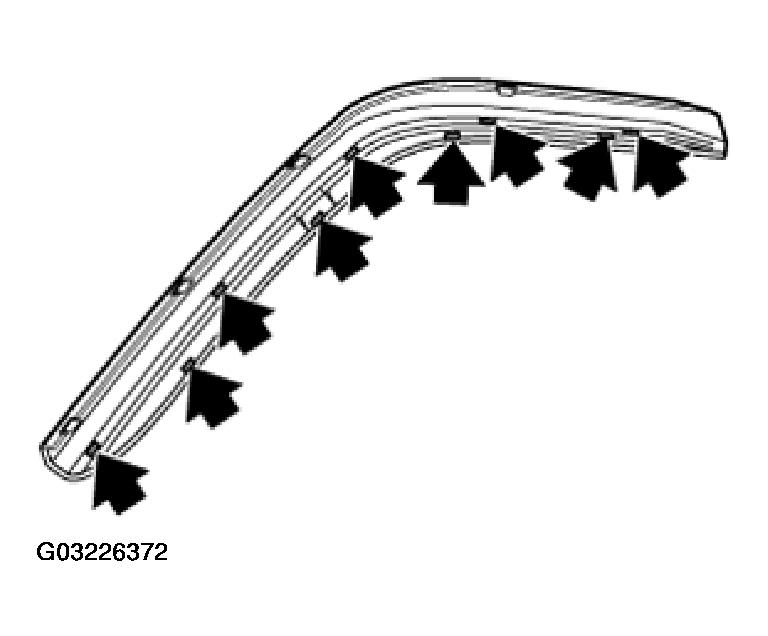

Fig 2: Removing Chrome Finisher From Body Molding
