61 31 020 Removing and installing the ignition switch: Notes

Remove the bottom section of the steering column panelling, refer to 32 31 020 REMOVING AND INSTALLING / REPLACING LOWER SECTION OF STEERING COLUMN TRIM

Unlock connector from ignition starter switch and remove.

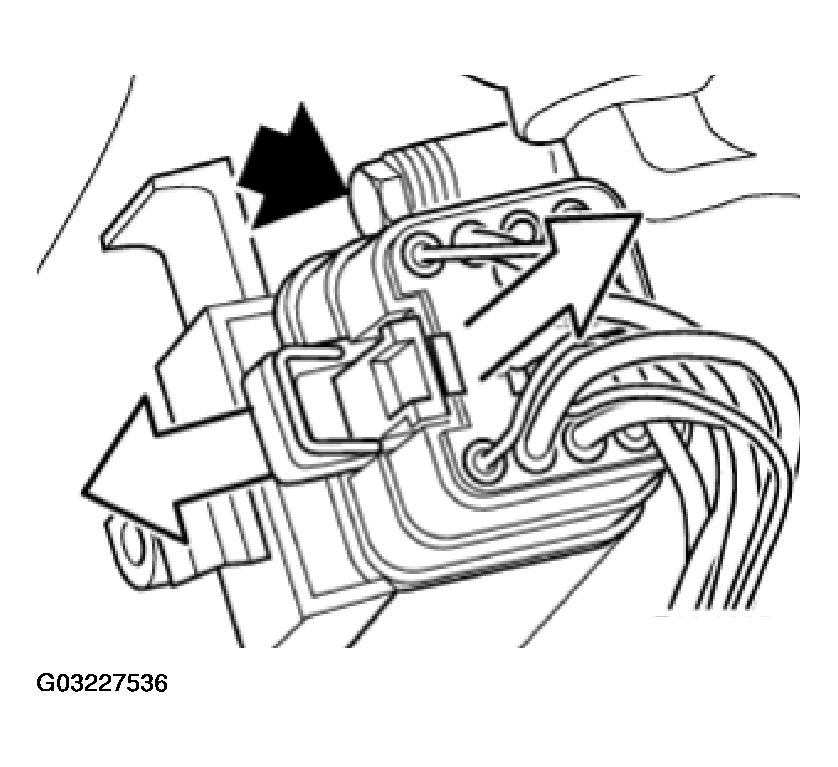

Fig 1: Unlocking Connector From Ignition Starter Switch

Remove protective paint and unfasten grub screws.

Remove ignition starter switch.

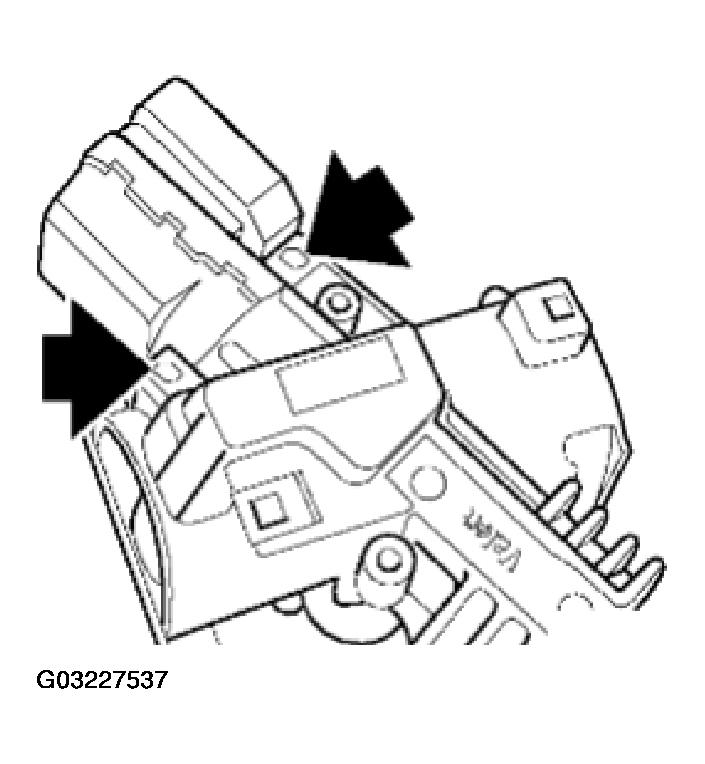

Fig 2: Removing Ignition Starter Switch
