61 31 005 Removing and installing/replacing fixture for steering column stalk

WARNING: Move wheels into straight-ahead position and do not alter this position during the repair work.

Necessary Preliminary Tasks:

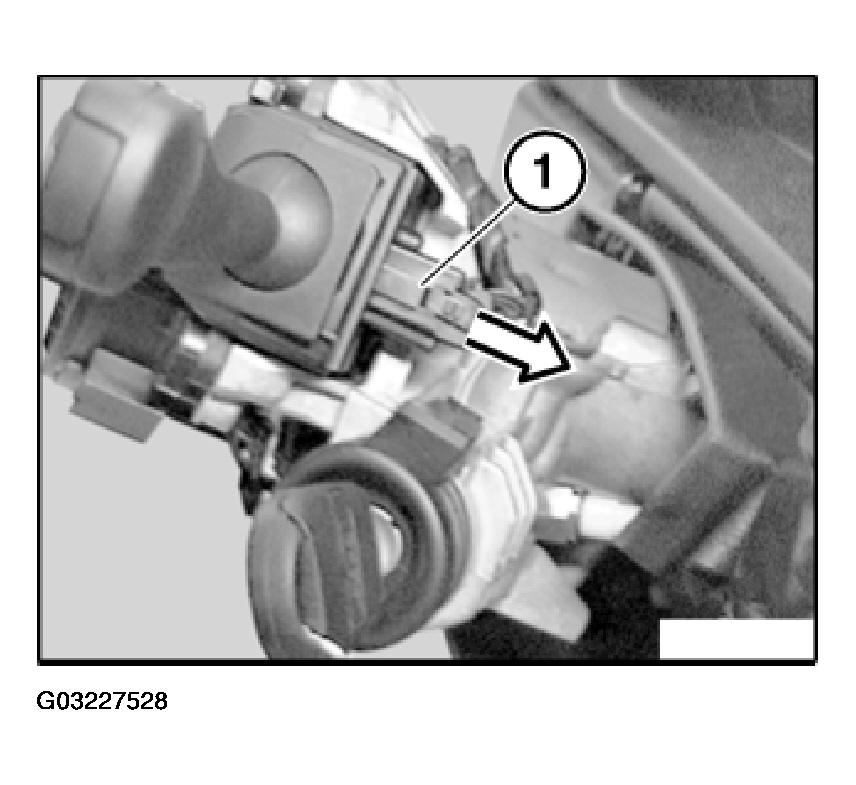

If necessary, disconnect plug connection (1) at mount for steering column stalk.

If necessary, disconnect plug connection (2) at stalk for steering column adjustment.

Fig 1: Disconnecting Plug Connection At Stalk For Steering Column Adjustment

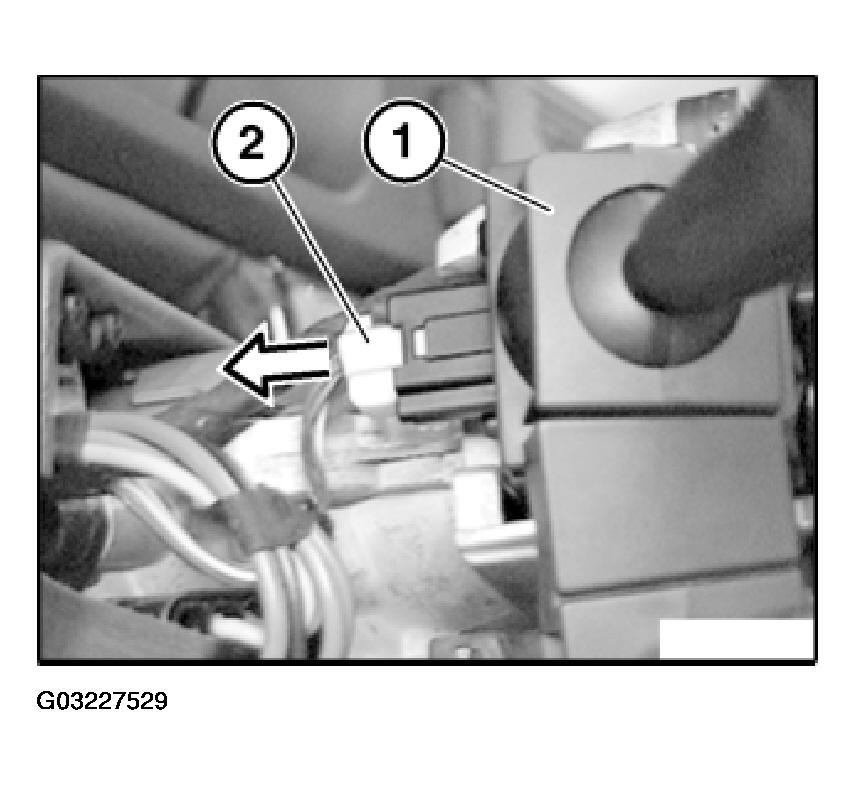

Disconnect plug connection (1) on wiper switch.

Fig 2: Disconnecting Plug Connection On Wiper Switch

Disconnect plug connection (2) on turn indicator/dipping switch (1).

Fig 3: Disconnecting Plug Connection On Turn Indicator/Dipping Switch

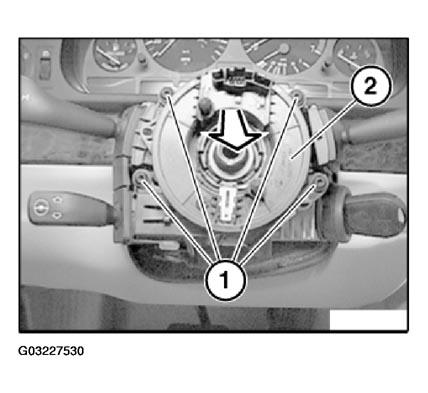

Release screws (1).

Remove fixture for steering column stalk (2).

Fig 4: Removing Fixture For Steering Column Stalk

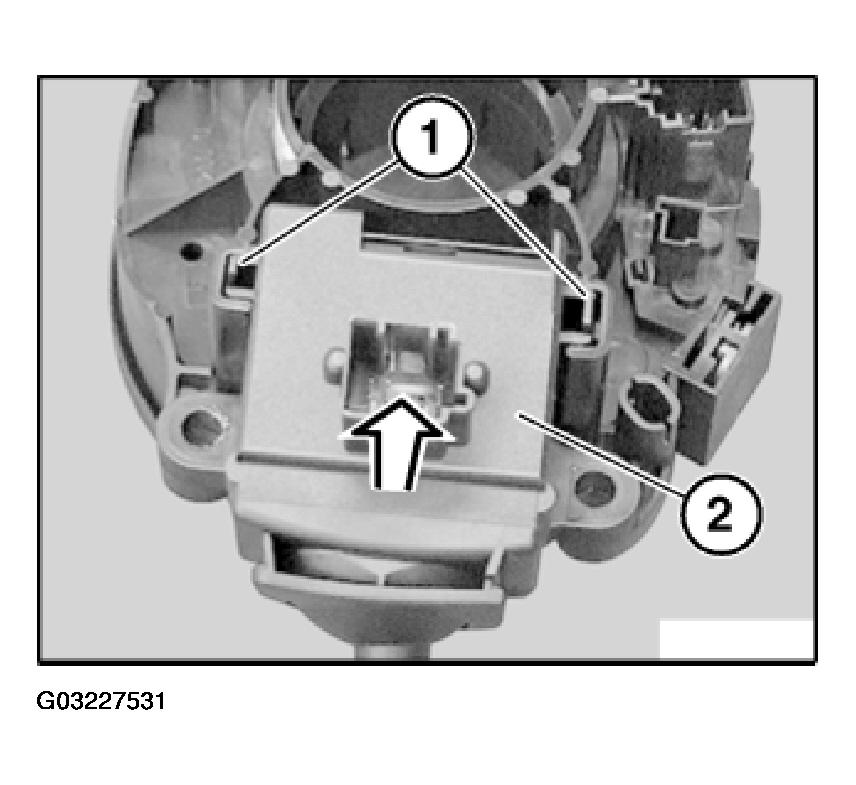

Unlock retainers (1) and pull out switch for windshield wipers (2) towards top.

Fig 5: Pulling Out Switch For Windshield Wipers

If necessary, remove switch for steering column adjustment.

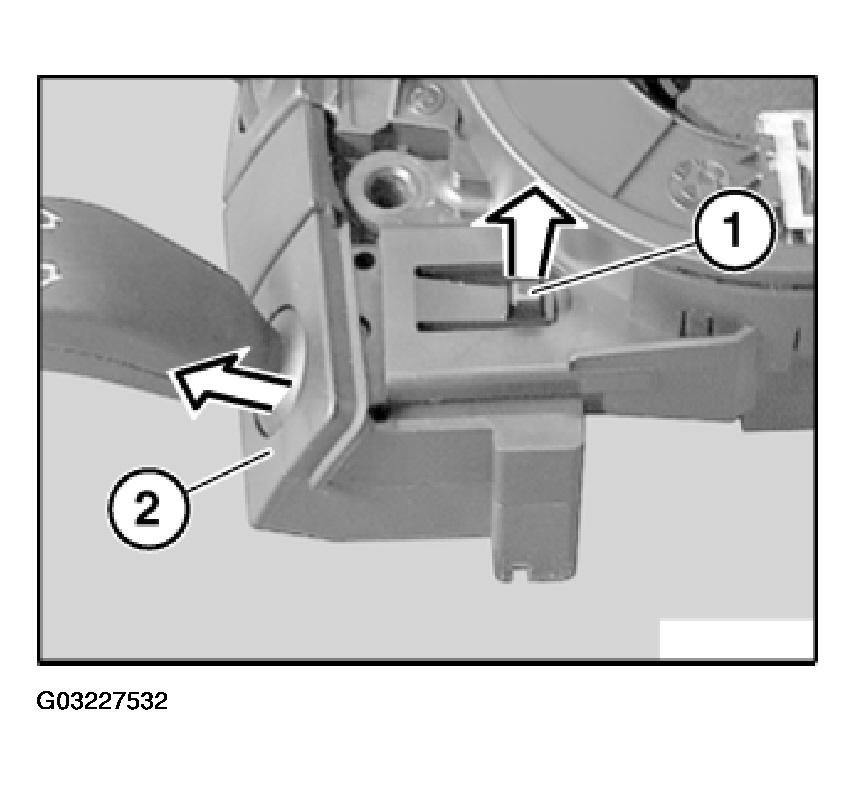

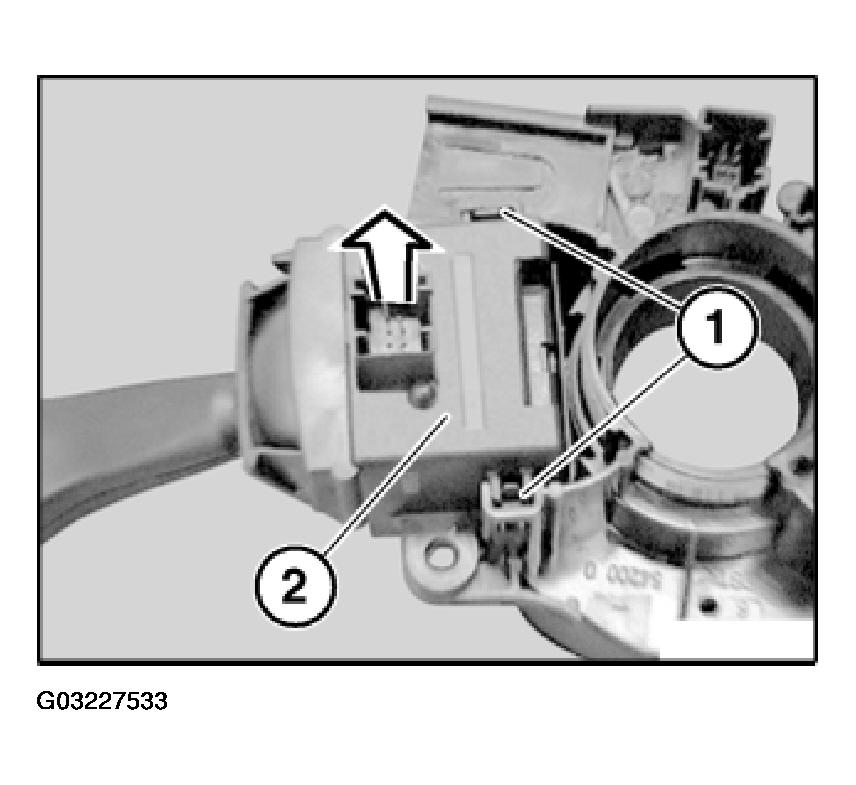

Raise lock (1) in direction of arrow and slide stalk for steering column adjustment (2) in direction of arrow.

Fig 6: Raising Lock In Direction Of Arrow

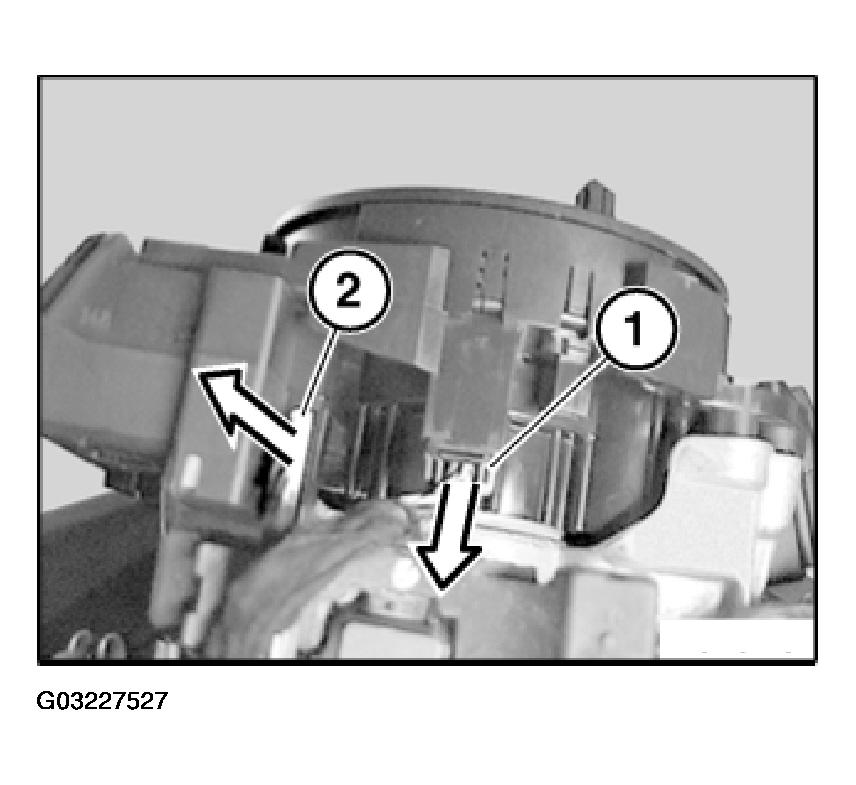

Unlock retainers (1) and pull out turn indicator/dipping switch (2) towards top.

Fig 7: Pulling Out Turn Indicator/Dipping Switch
