61 35 640 Removing and installing or replacing door module

Remove door trim refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Remove plug, unfasten screws and remove door module.

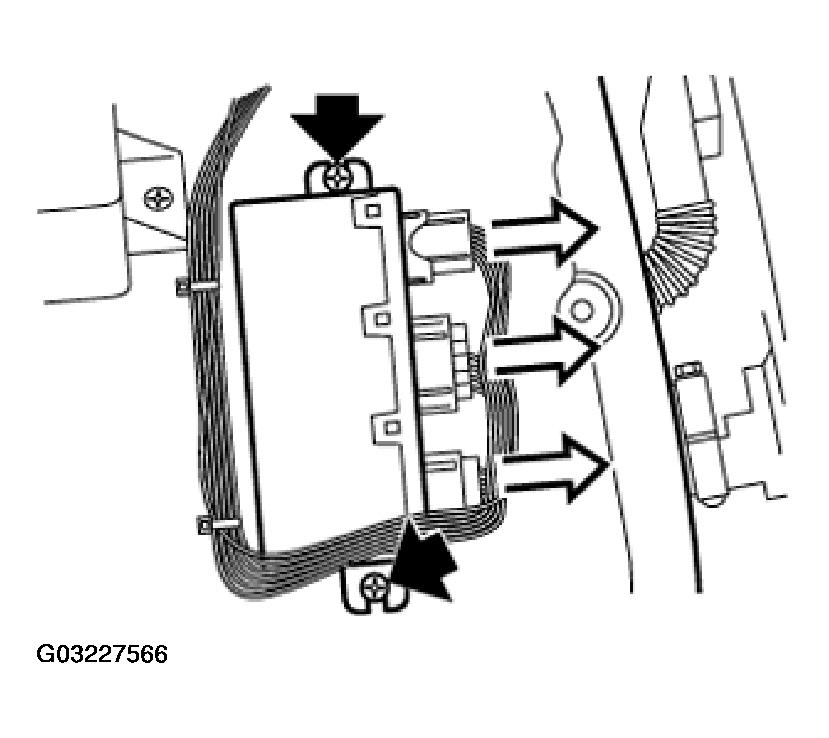

Fig 1: Removing Door Module
G03227566
