67 65 511 Removing and installing or replacing drive for sun roller blind: Notes
Rear shelf removed, refer to 51 46 000 REMOVING AND INSTALLING/REPLACING TRIM FOR ODDMENTS TRAY (BACK SHELF) .
CAUTION:
Do not power up the drive mechanism if it is not completely connected to the system.
If sun roller blind is not completely rolled up, there is spring pressure on the linkage.
If sun roller blind is not completely rolled up, there is spring pressure on the linkage.
In this case, hold the sun roller blind under pretension, carefully lever out the linkage and allow the roller blind to roll up slowly.

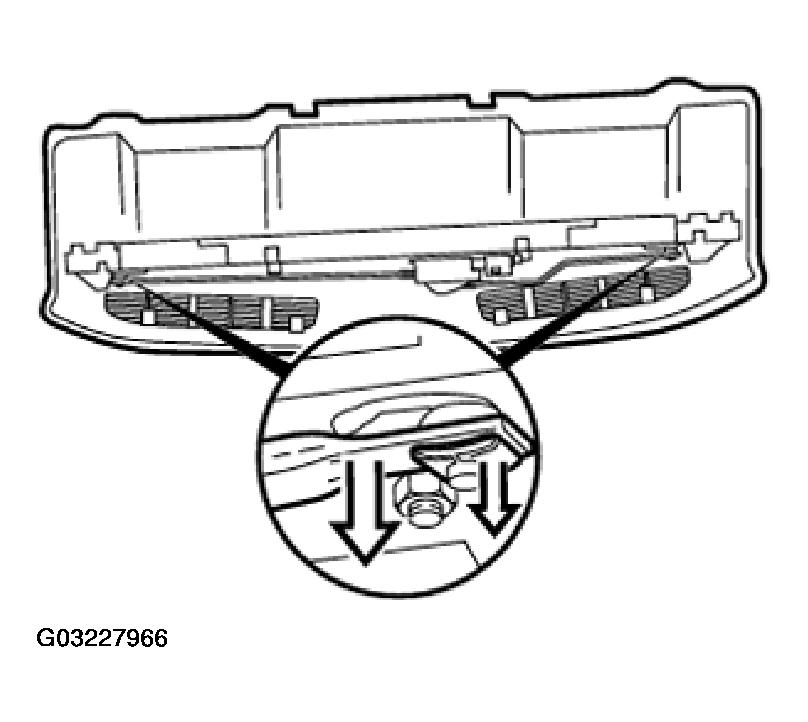

Unclip retaining clips and lever out left and right linkages.

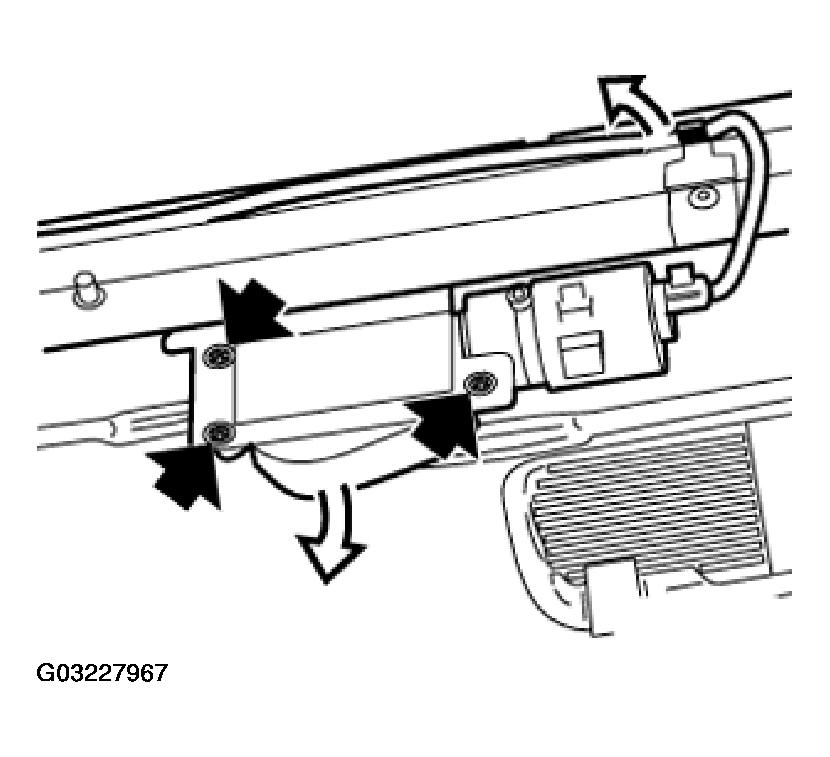

Unfasten clips, loosen screws and lever out drive unit.
