67 63 510 Removing and installing or replacing windshield wiper motor: Installation:
Only secure engine with screws (3).
Install wiper console.

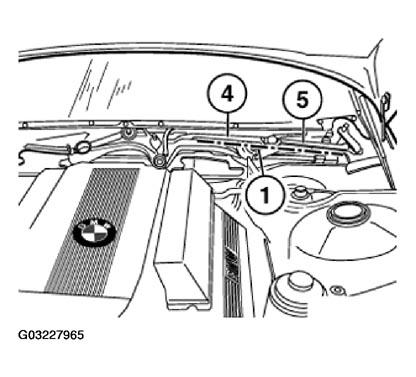

Actuate wiper until engine has run in rest position. Fit lever (1) to shaft with linkages (4 and 5) in one line.
