67 31 650 Removing and installing / replacing drive unit for rear seat backrest adjustment: Installation:

Both transmissions must have the same adjustment setting.

If necessary, twist input shaft until the input gears (1) locate firmly against the tooth segments (2).

Carry out operational check.

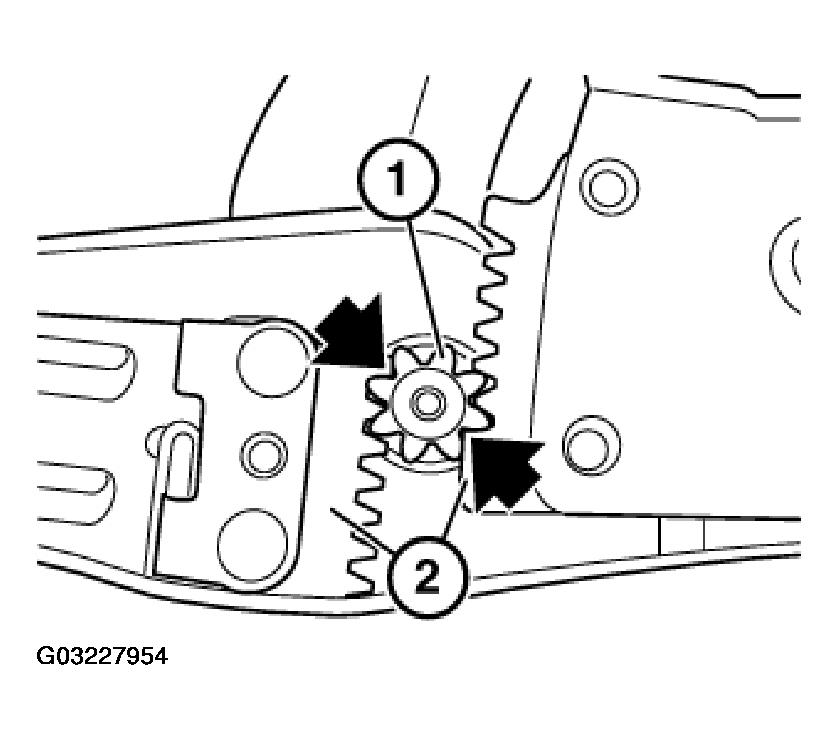

Fig 1: Twisting Input Shaft
G03227954
