Driver's Side:

Remove cover.

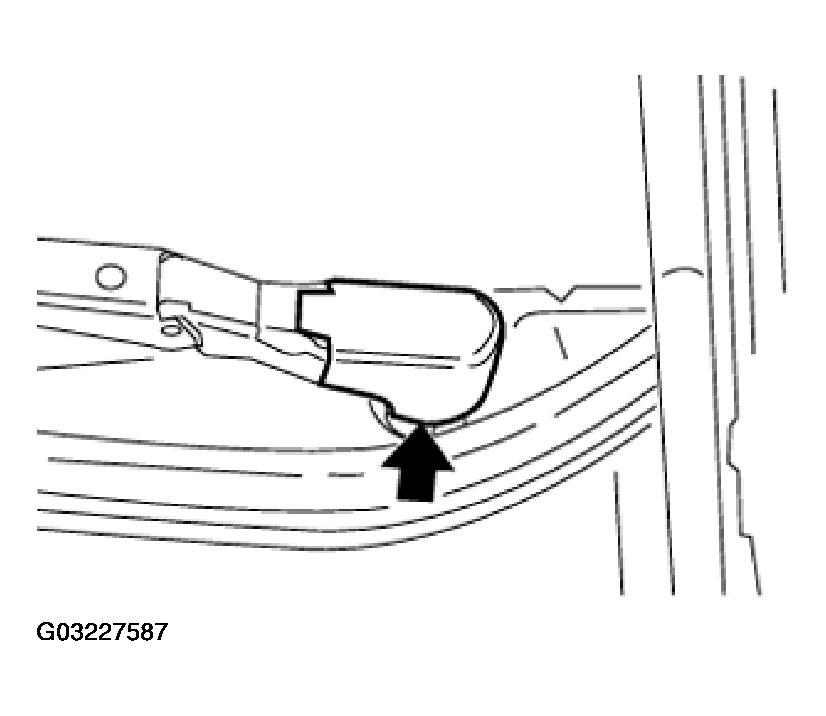

Fig 1: Removing Cover
G03227587

Release screw (1) with special tool 61 6 010.

Installation:

Clean Loctite residue off thread.

Replace screw (1) and insert with Loctite.

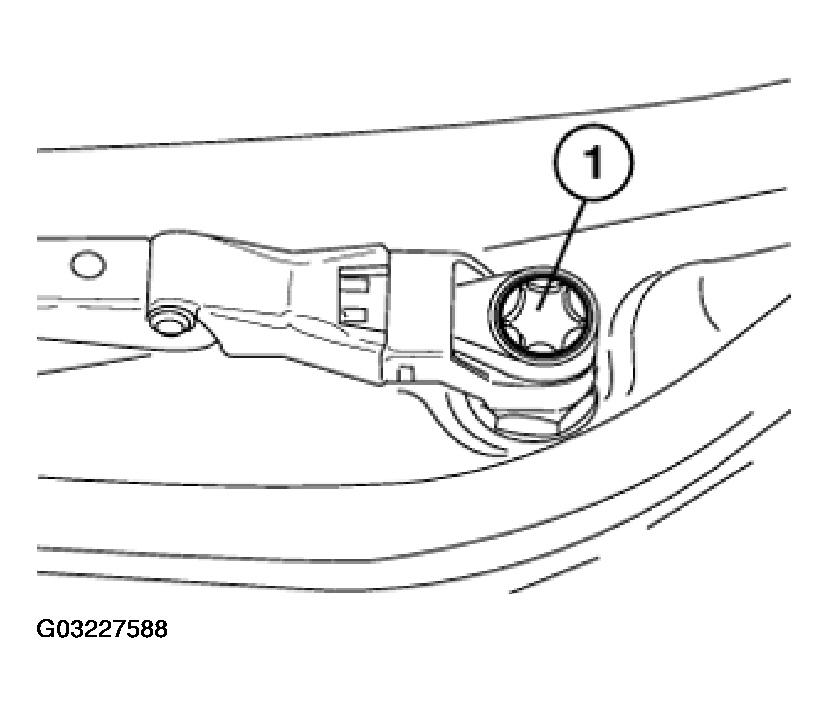

Fig 2: Identifying Screw (1)
G03227588

Tightening torque, refer to 61 61 10AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .

CAUTION: Do not bend windshield wiper arm when removing it (risk of breakage!).

Release nut (2) with special tool 61 6 010. Detach windshield wiper arm with special tool 61 6 060.

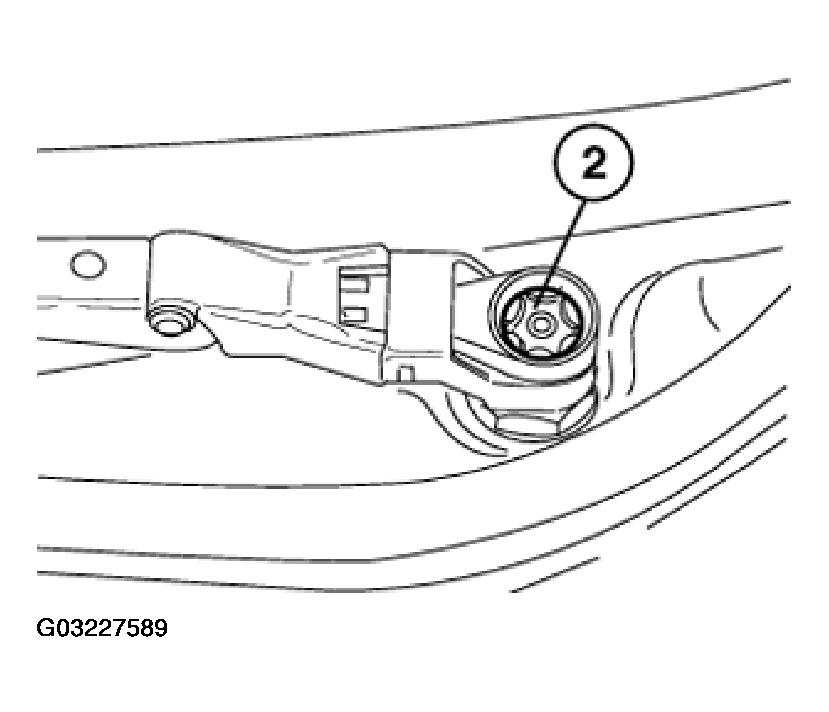

Fig 3: Releasing Nut (2)
G03227589

Installation:

Tightening torque, refer to 61 61 10AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Installation:

Insert screw (1) against tappet (3) until specified dimension (A) between contact pressure adjustment lever (2) and wiper arm (4) is achieved.

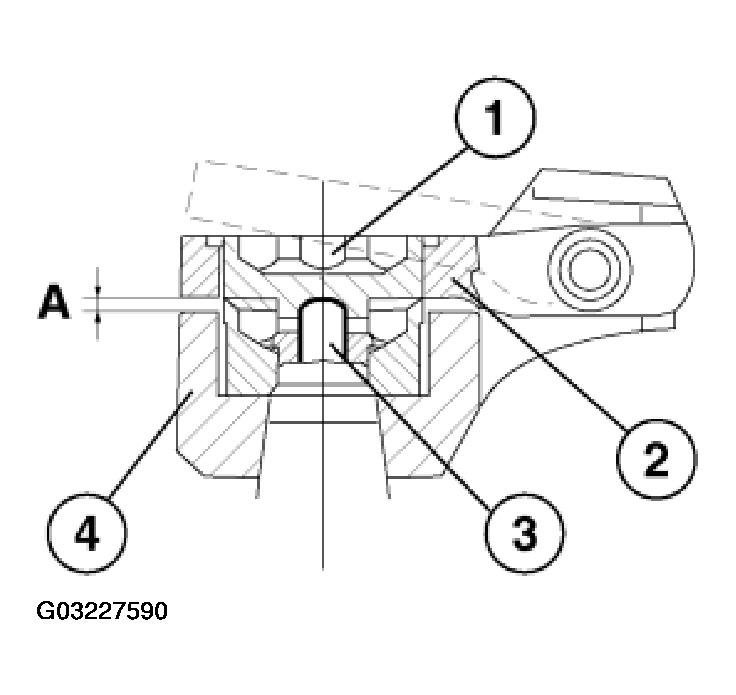

Fig 4: Inserting Screw Against Tappet
G03227590

The nut can be tightened better by pressing down the wiper arm gently on the windshield.

Specified dimension A = 1.3 mm
