51 24 050 Removing and installing/replacing lock (locking cylinder) for trunk lid set

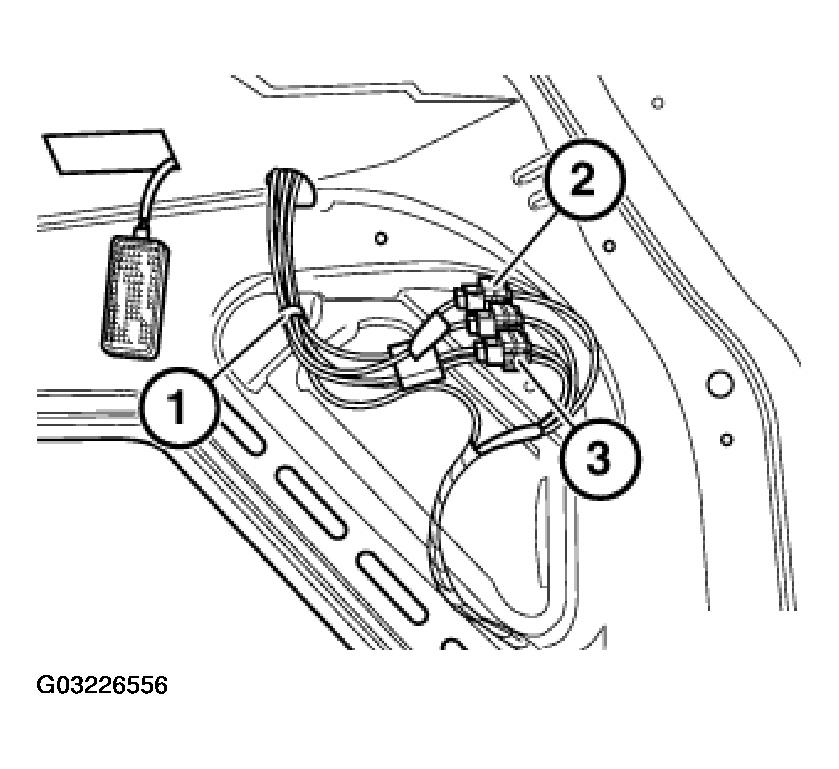

Lift out Omega clip (1).

Remove plug connections (2) and (3).

Fig 1: Lifting Out Omega Clip And Removing Plug Connections

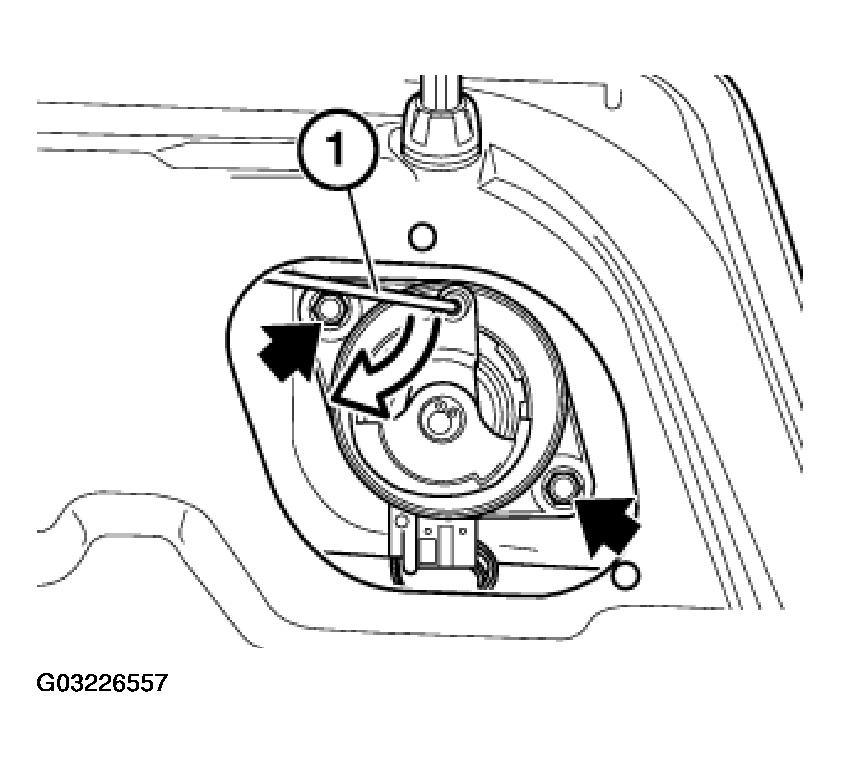

Lift out actuating rod (1). Unfasten nut and remove lock.

Installation:

Check actuating rod (1) is in correct position.

Fig 2: Checking Actuating Rod Is In Correct Position

Lock must be fitted centrally in body aperture.

Installation:

Perform function check with trunk lid open.

Only replace:

Cable and shrink-fit hose colors on micro-switch (MS) designated any deviations.

MS1red/grey.

MS2brown/blue, shrink-fit hose black.

MS3brown/blue, shrink-fit hose yellow.

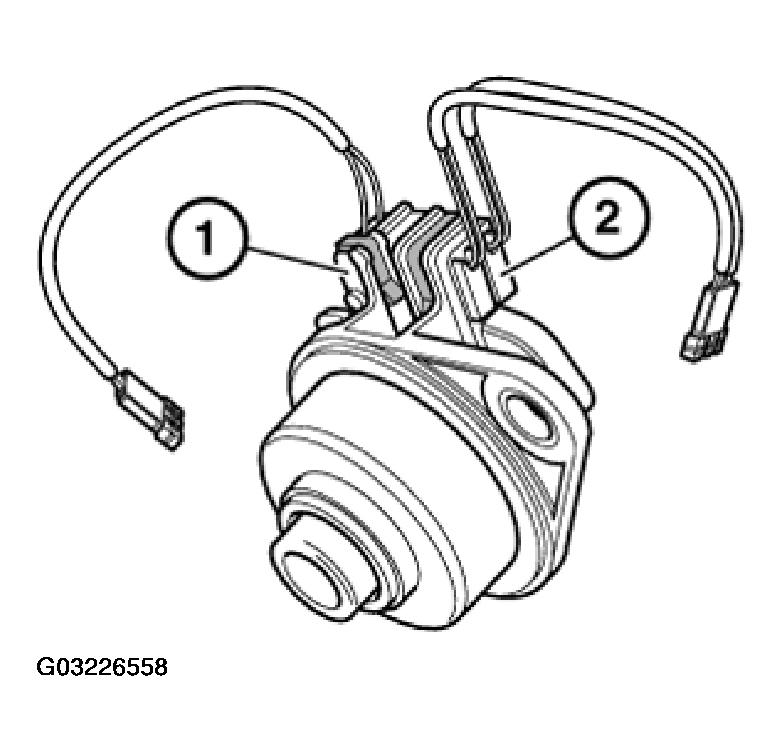

Lift out clips, remove micro-switches (1) and (2).

Fig 3: Removing Micro-Switches

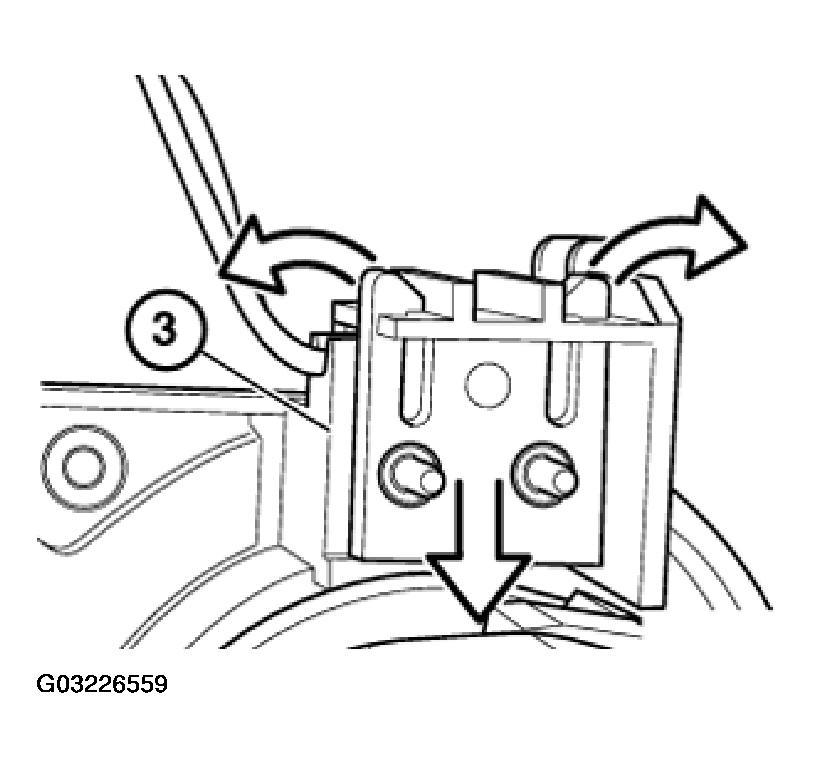

Lift out bracket and remove micro-switch (3).

Fig 4: Lifting Out Bracket And Remove Micro-Switch
