51 34 171 Replacing rear left or right door window

Remove sound insulation on rear door, refer to 51 48 ... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN FRONT DOOR, LEFT OR RIGHT .

Remove window cavity covering strip on outside.

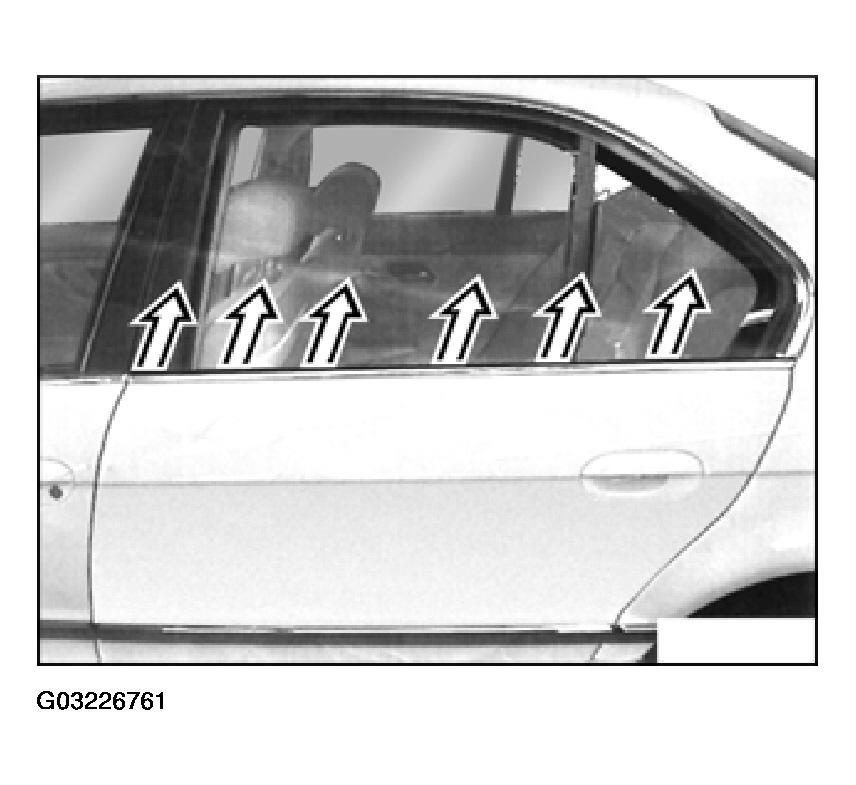

Fig 1: Removing Window Cavity Covering Strip On Outside

Remove rubber guide.

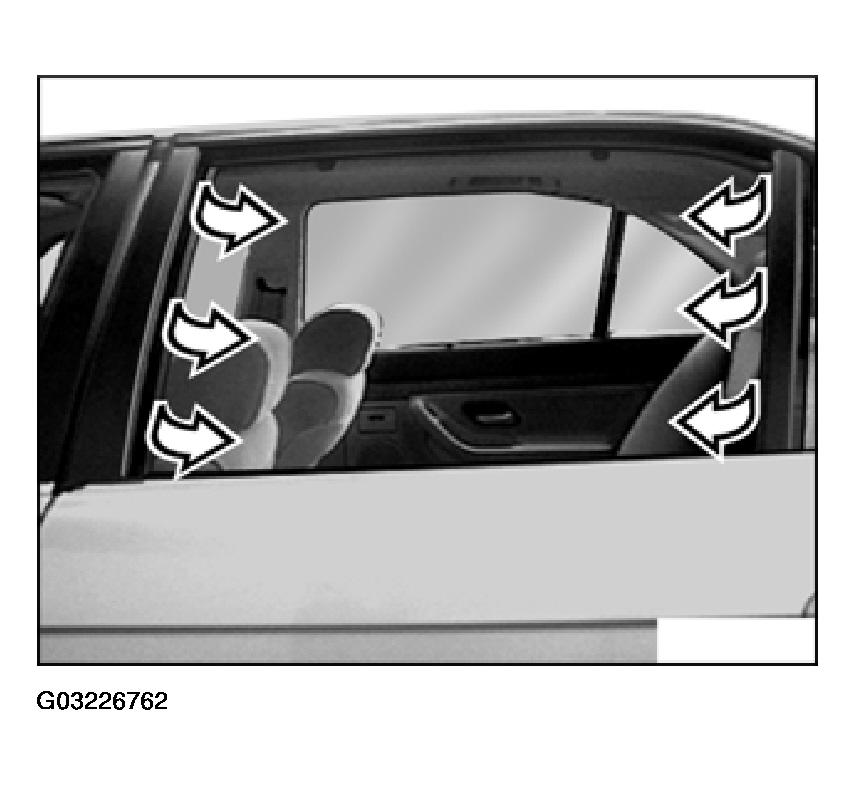

Fig 2: Removing Rubber Guide

Remove screws and take off plate.

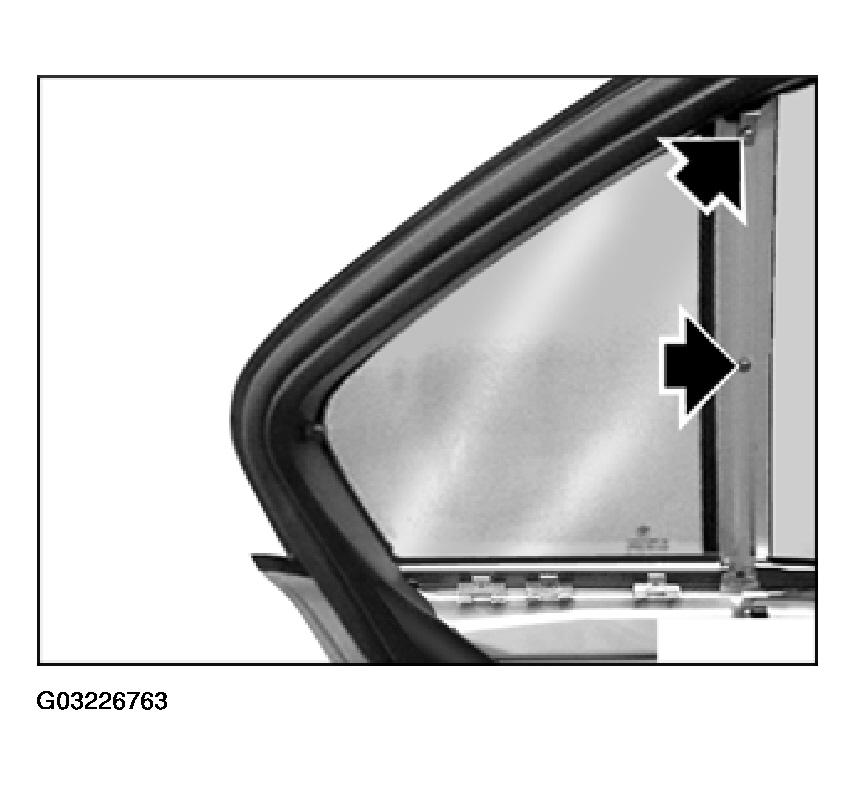

Fig 3: Removing Screws And Take Off Plate

Release screw and lift up door window glass.

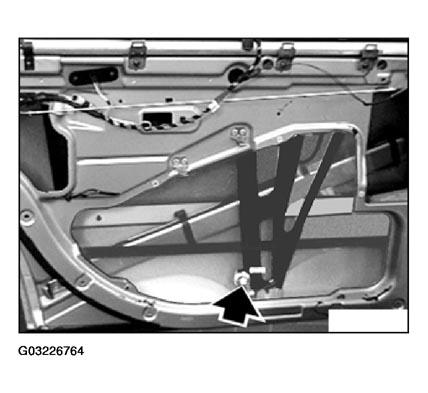

Fig 4: Releasing Screw And Lift Up Door Window Glass

Remove window glass by pulling upward at an angle.

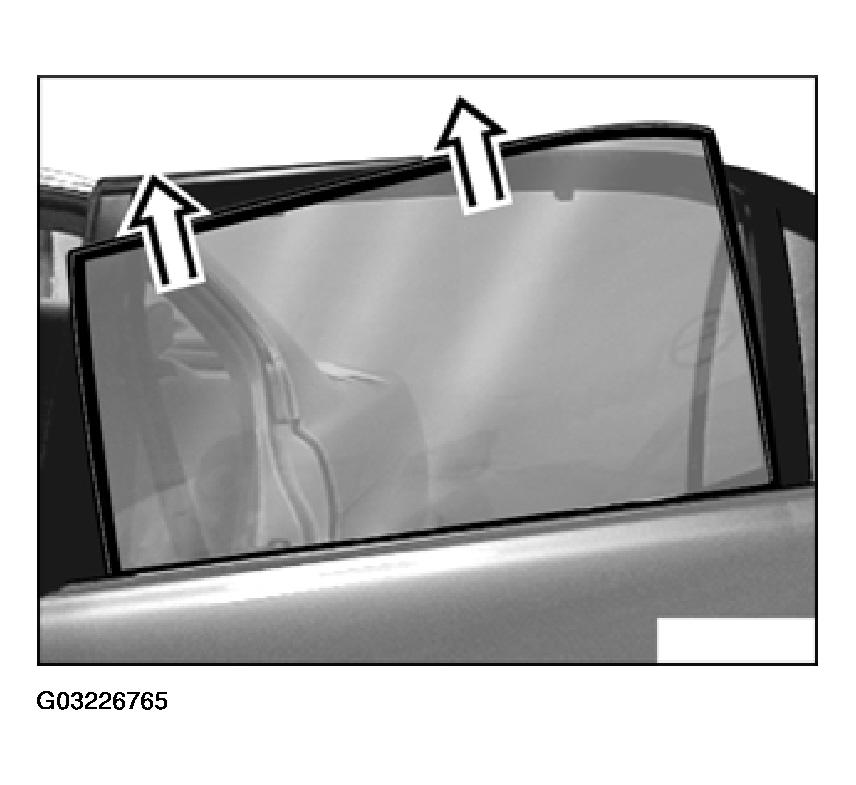

Fig 5: Removing Window Glass By Pulling Upward At An Angle
