51 42 000 Removing and installing rear left or right door trim panel (Protection)

CAUTION: Dismantle screw for lock retainer (malfunction if actuating rod is bent).

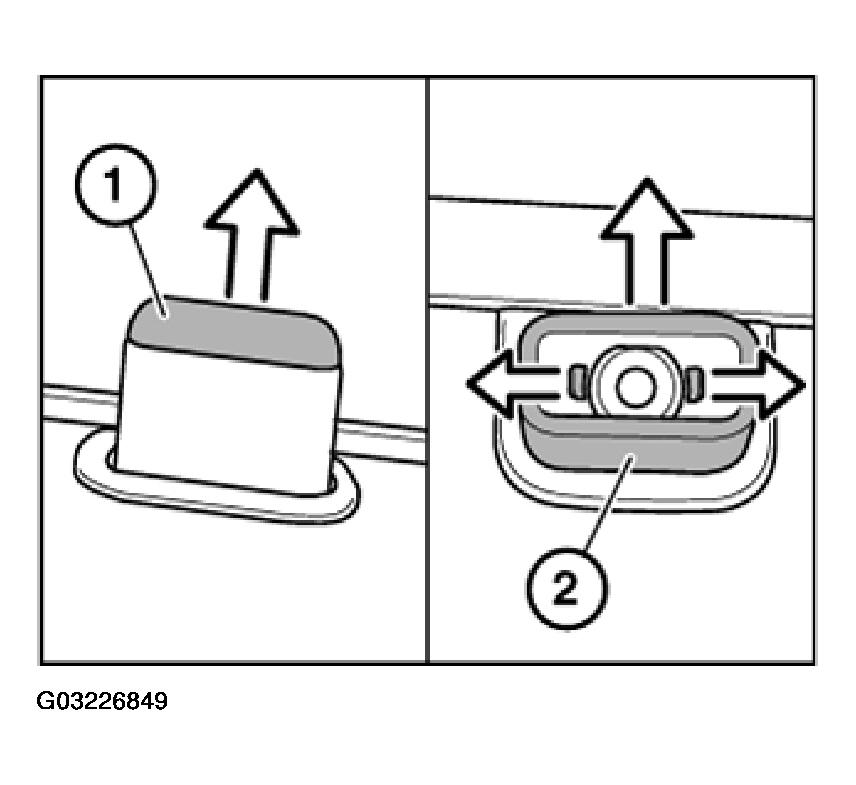

Remove cap (1).

Lift out locking unit and pull button (2) upwards to remove.

Fig 1: Lifting Out Locking Unit And Pull Button (2) Upwards To Remove

Installation:

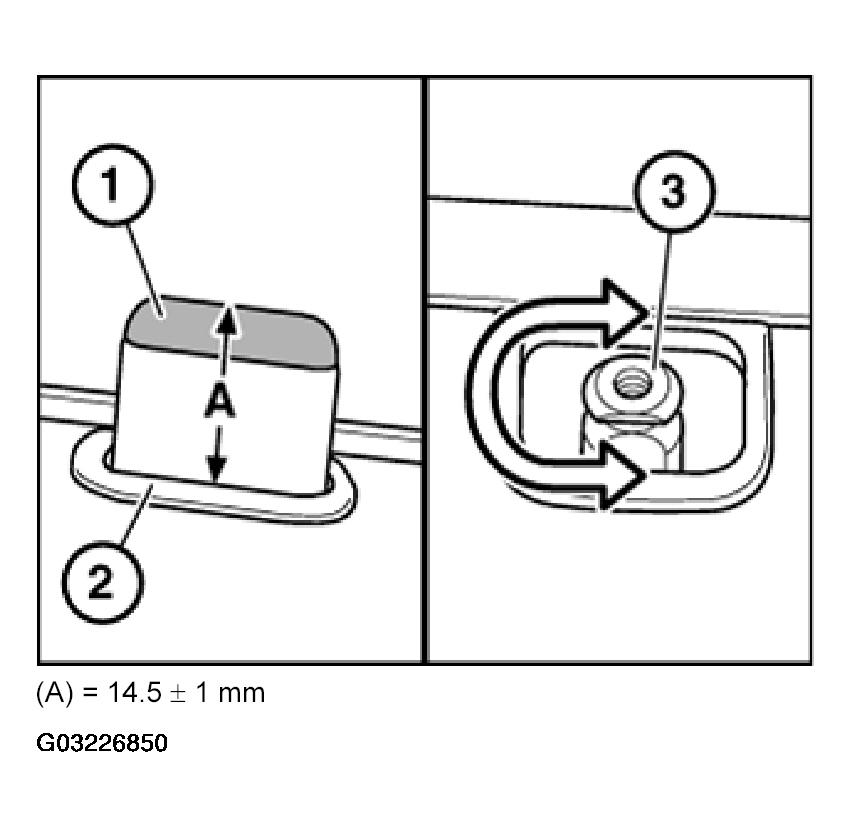

Check gap (A) between cap (1) and guide (2).

(A) = 14.5 +/- 1 mm.

If necessary, remove button and adjust sleeve (3).

Fig 2: Removing Button And Adjusting Sleeve

Version with sun roller blind on side window:

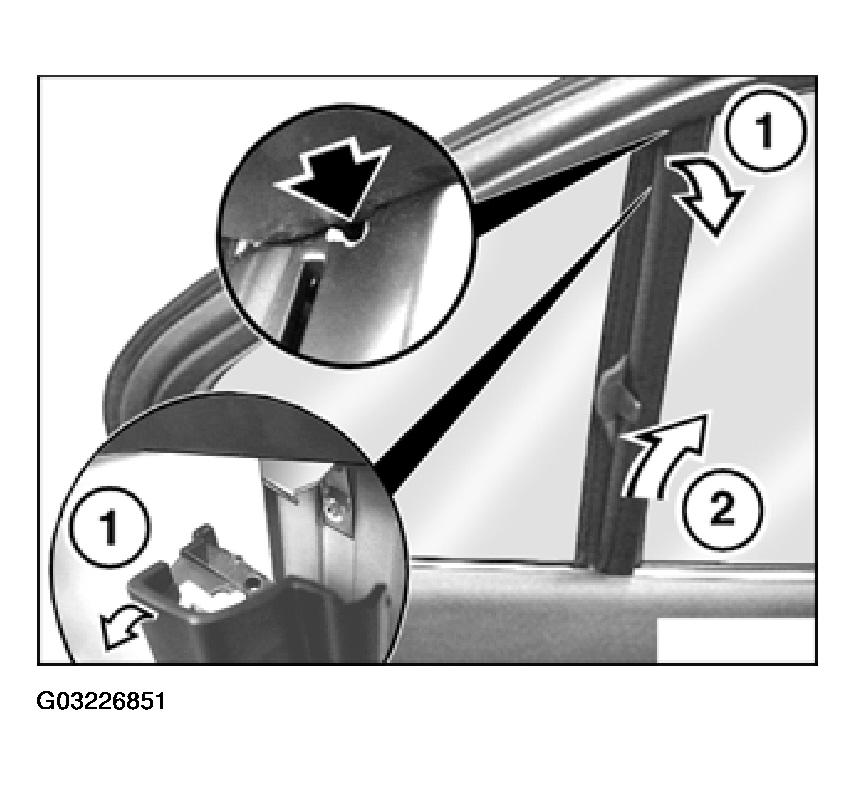

Unfasten top of sun roller blind (1) and lift upwards and backwards (2) to remove.

Fig 3: Removing Sun Roller Blind And Lift Upwards And Backwards

Version with sun roller blind on side window:

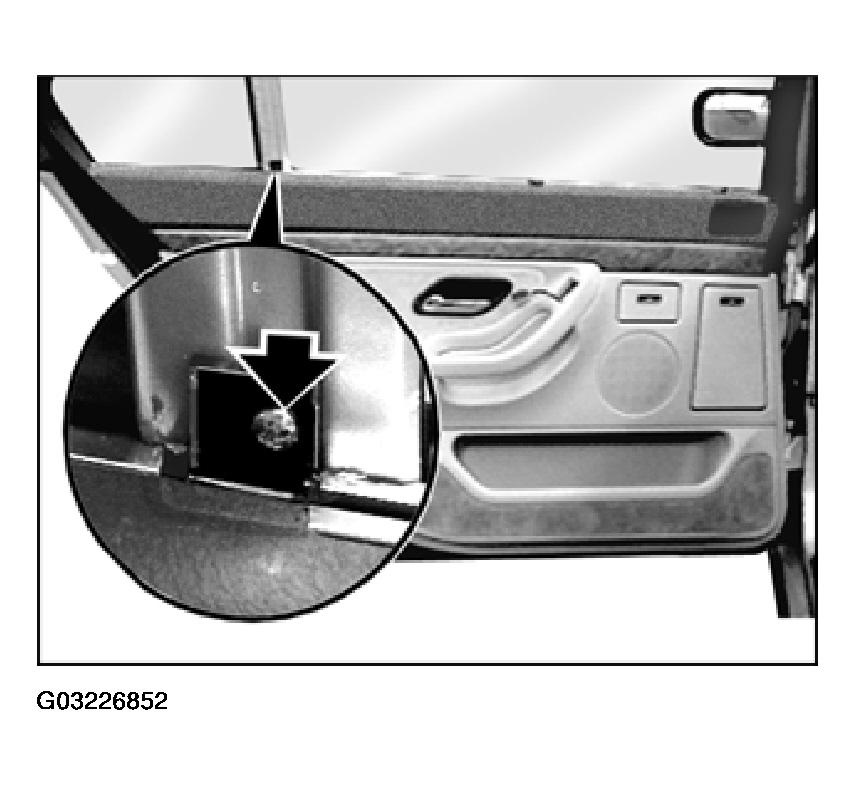

Unscrew screw.

Fig 4: Removing Sun Roller Blind On Side Window

Lift out footwell light and toggle switch (window regulator) and remove both connectors.

Fig 5: Lifting Out Footwell Light And Toggle Switch (Window Regulator)

Lift out finisher (1) and unfasten screw.

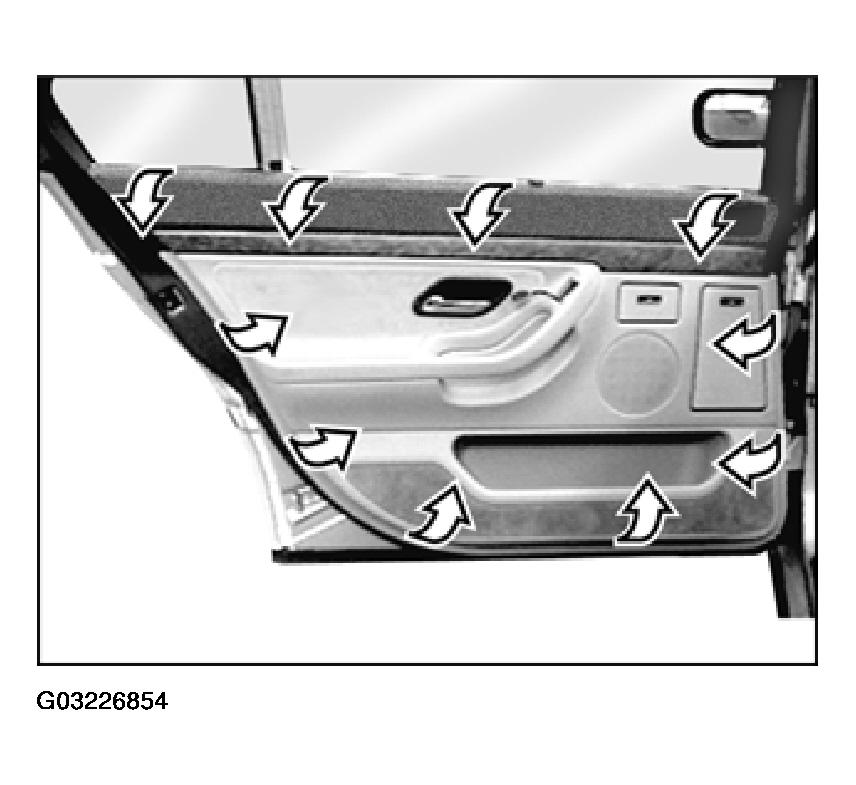

Unclip door trim panel all around.

Fig 6: Uncliping Door Trim Panel

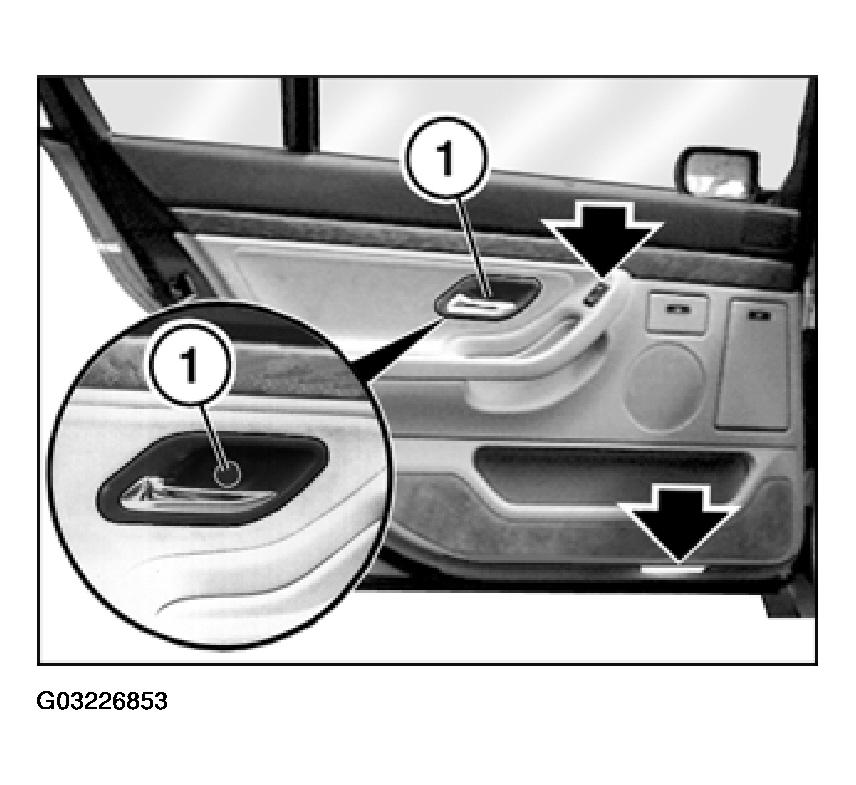

Pull door trim panel upward out of clips and push door opener (1) through door trim panel.

Fig 7: Pulling Door Trim Panel Upward Out Of Clips And Pushing Door Opener (1) Through Door Trim Panel

Version with sun roller blind on side window:

Installation:

Pull the side roller blind upwards off door trim before assembly.

Perform a function check on side roller blind.

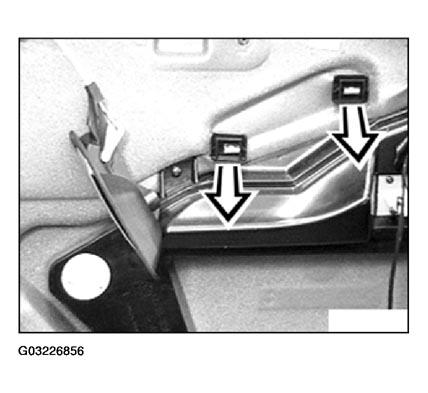

Remove door clips.

Fig 8: Removing Door Clips

Installation:

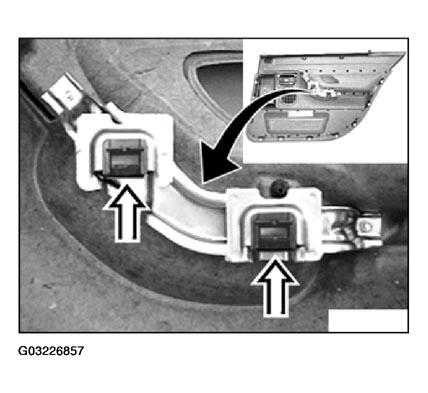

Fit clips in door trim panel.

Fig 9: Installing Door Trim Panel

Installation:

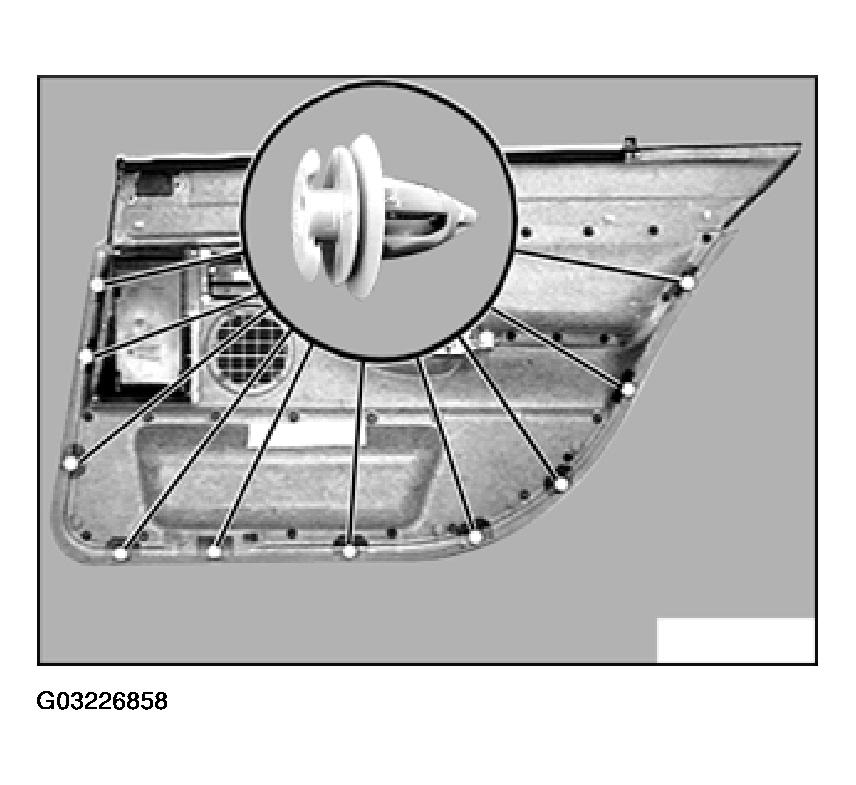

If necessary, replace damaged clips.

Fig 10: Identifying Clips
