From 09/98:

CAUTION: Optical entry aid! A fiber optics cable is connected to the outside door handle. Do not kink fiber optics cable.

Lift out outside door handle at bottom and pull out at an angle approx. 5 cm towards bottom.

Installation:

The bending radius of the fiber optics cable must not be less than 20 mm.

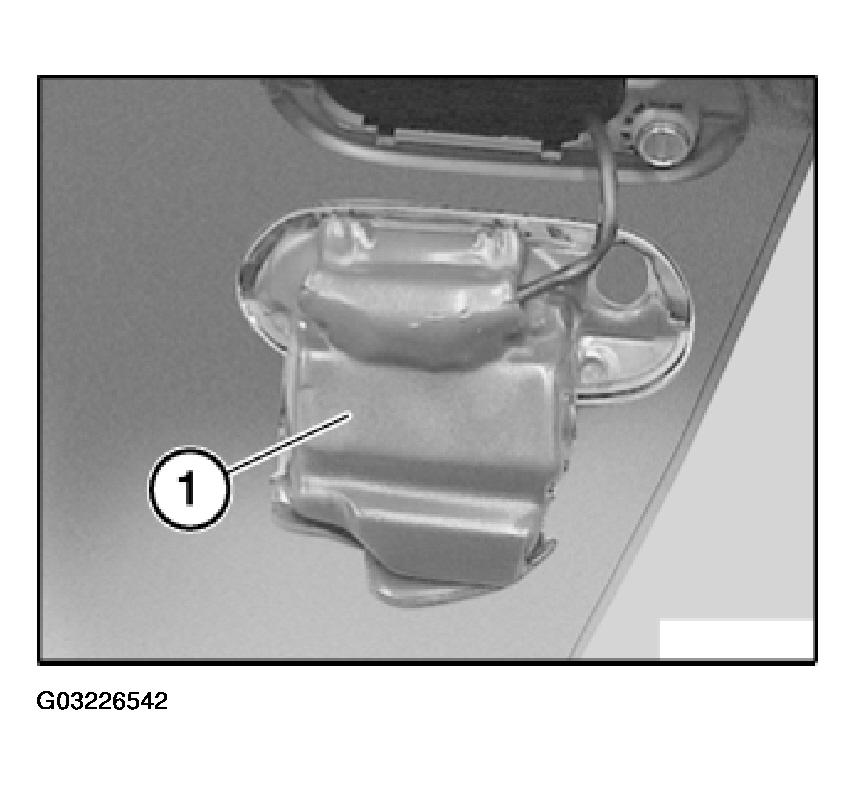

Detach inside plastic cover (1) from outside door handle.

Fig 1: Detaching Inside Plastic Cover From Outside Door Handle

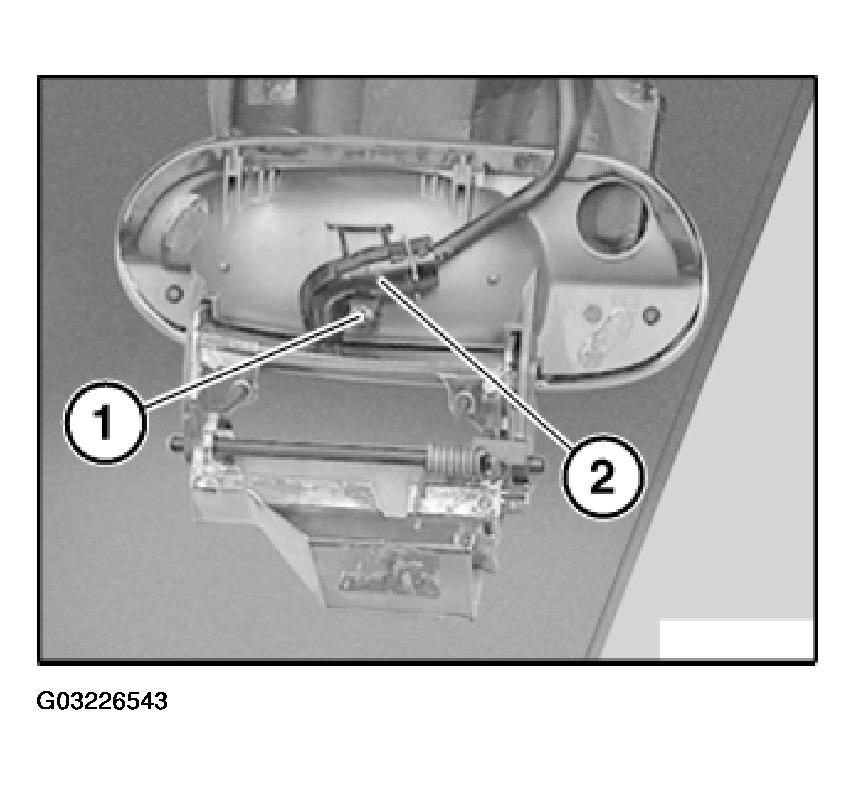

Release screw (1) and remove light output module (2) from outside door handle.

Fig 1: Removing Light Output Module From Outside Door Handle

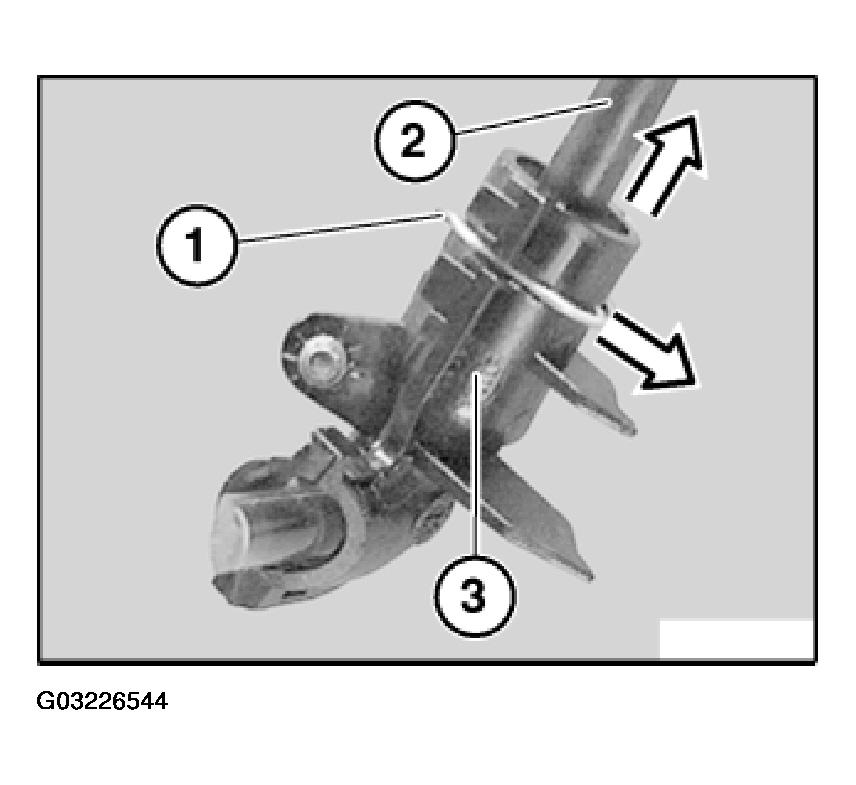

If necessary, detach retainer (1). Disconnect fiber optics cable (2) from light output module (3).

Fig 1: Disconnecting Fiber Optics Cable From Light Output Module
