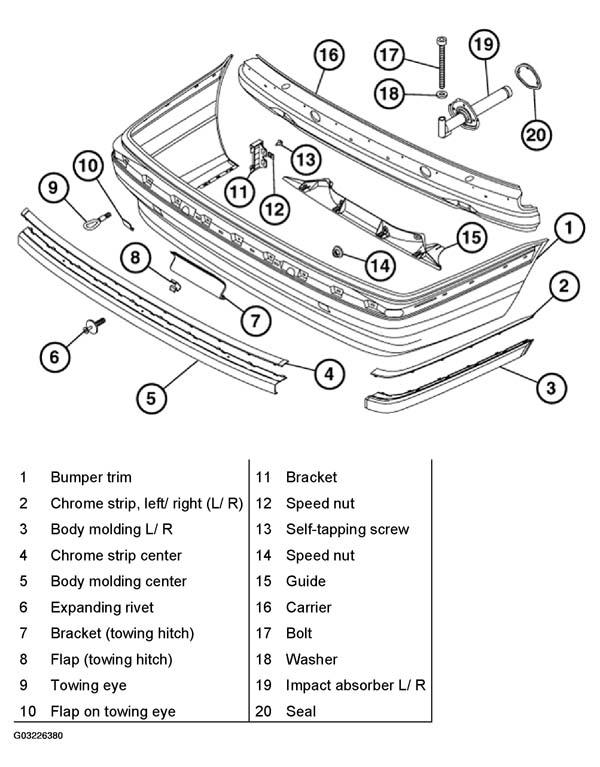

Layout Of Rear Bumper, Bumper Carrier And Retaining Elements

Fig 1: Removing Complete Rear Bumper

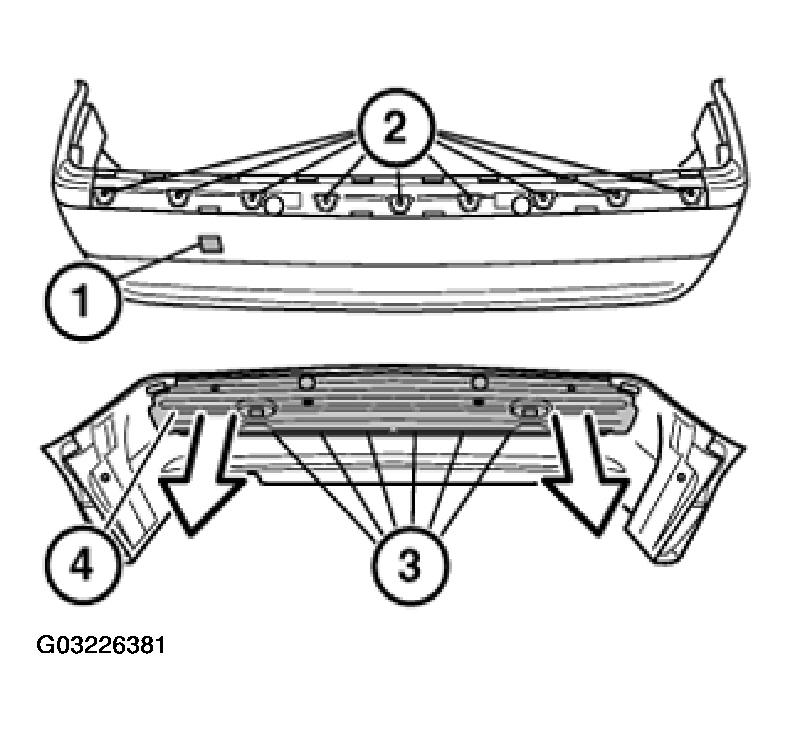

Lift cover off towing eye (1) with catch band.

Lift out expanding rivets (2).

Lift out expanding rivets (3) and pull bracket (4) backwards to remove.

Fig 2: Lifting Out Expanding Rivets And Pull Bracket
