51 16 204 Removing and installing/replacing rear can holder

Removing rear seat cushion, refer to 52 24 005 REMOVING AND INSTALLING / REPLACING REAR SEAT (NORMAL) .

Unfasten screws (1) and pull out cup holder (2) toward front.

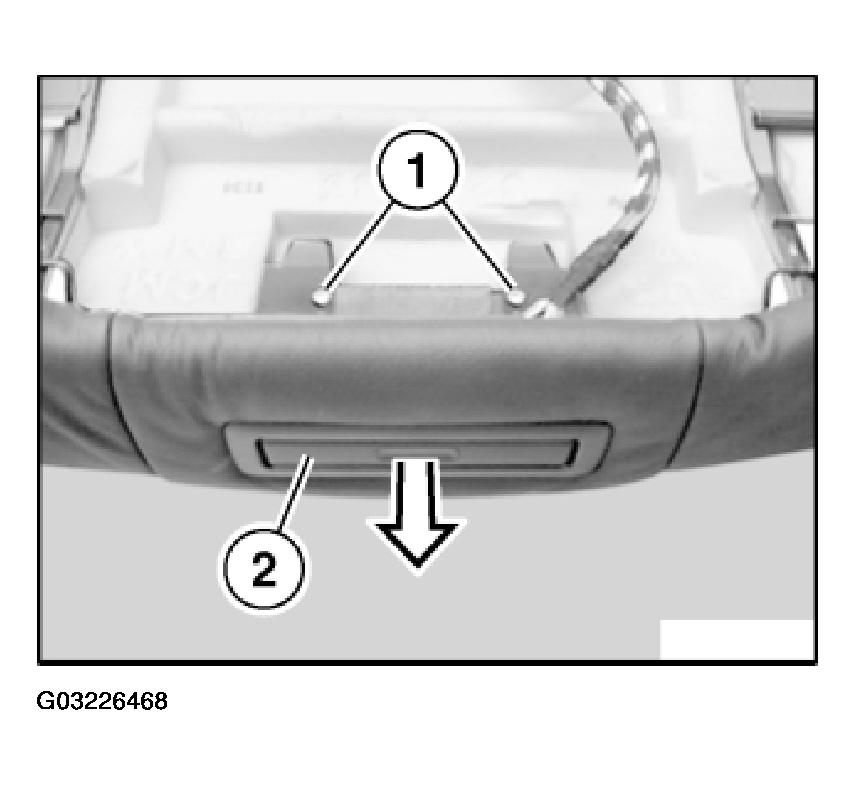

Fig 1: Unfastening Screws (1) And Pulling Out Cup Holder (2) Toward Front
