51 16 201 Replacing oddments tray

Remove center console, refer to 51 16 200 REMOVING AND INSTALLING CENTER CONSOLE .

Unfasten screws and remove carpet (1) (with bracket) and bracket (2) (center console). Twist connector bracket (3) and remove.

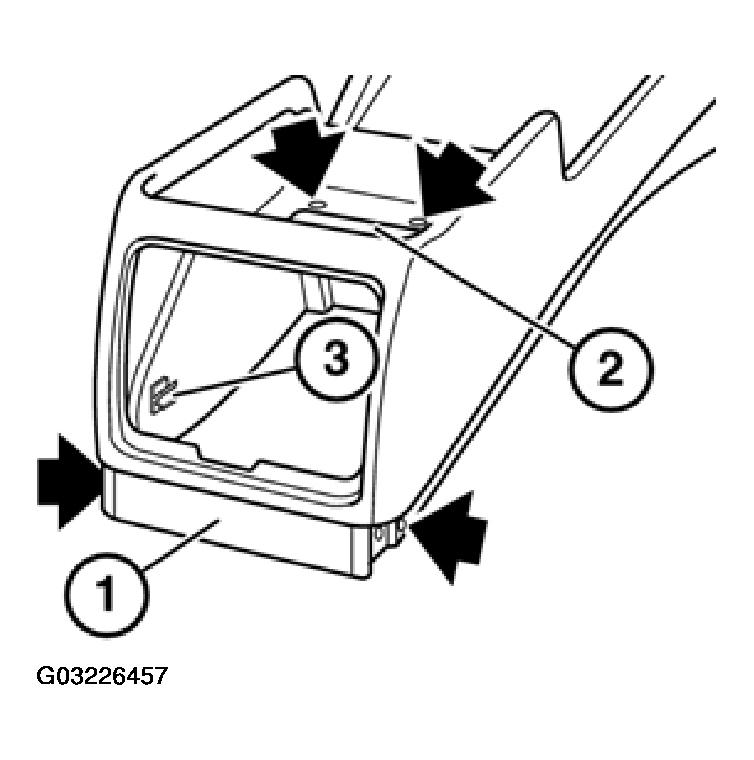

Fig 1: Removing Center Console

Unclip wooden finisher from carrier plate.

Version with drink holder: Open drink holder (1) and unclip wooden finisher (2).

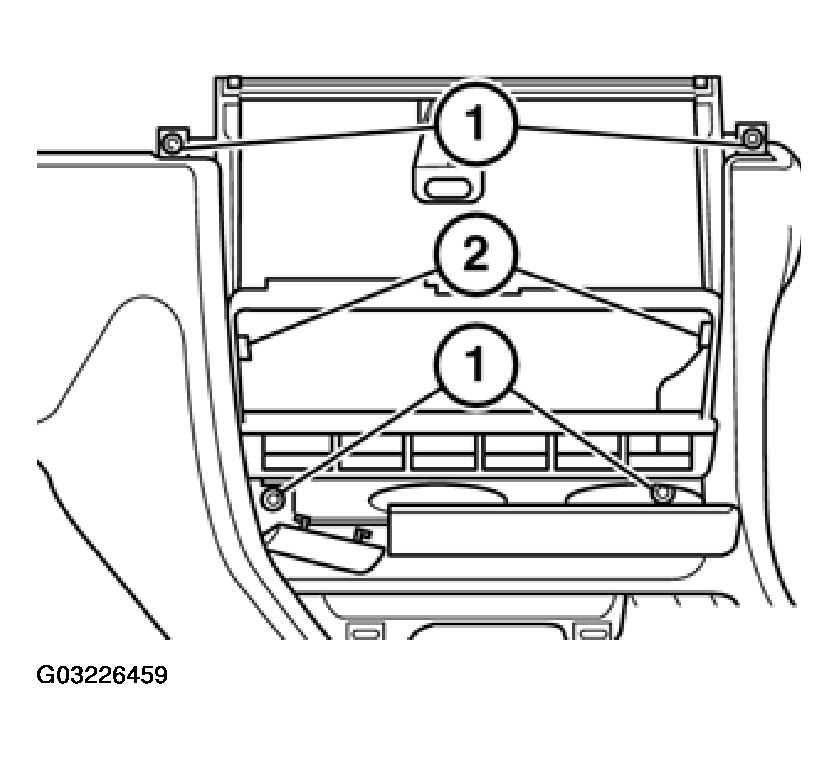

Fig 2: Uncliping Wooden Finisher From Carrier Plate

Loosen screws (1). Unfasten clips (2) and remove carrier plate. Remove all self-tapping screws.

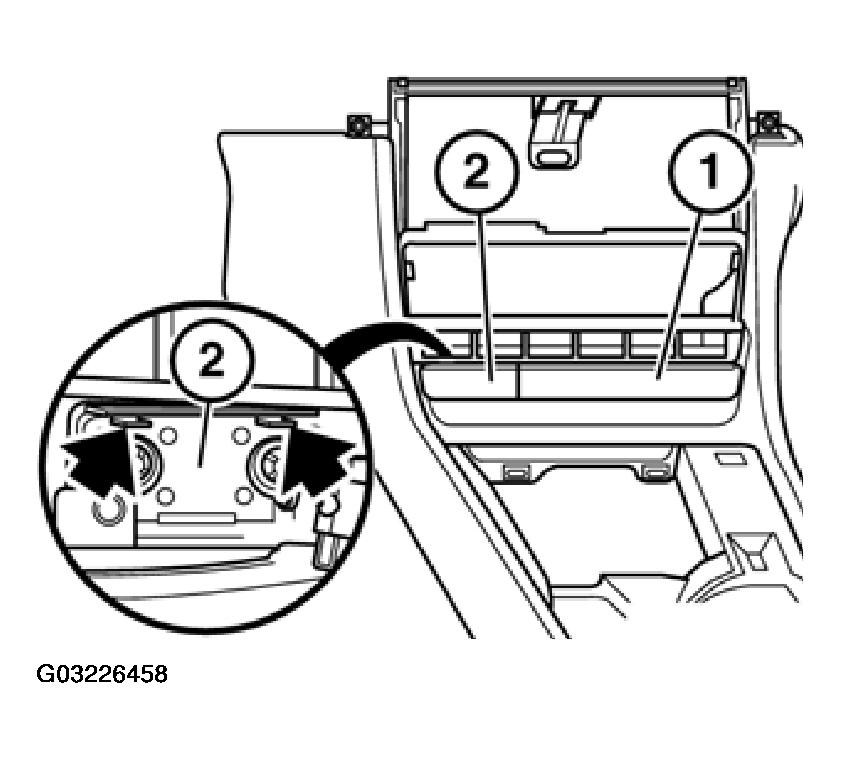

Fig 3: Removing Carrier Plate
