Left Side:

Version with navigation system:

If necessary, remove navigation computer, refer to 65 90 510 REMOVING AND INSTALLING/REPLACING NAVIGATION COMPUTER WITH CD-DRIVE .

Lever out catches (1) and remove frame (2).

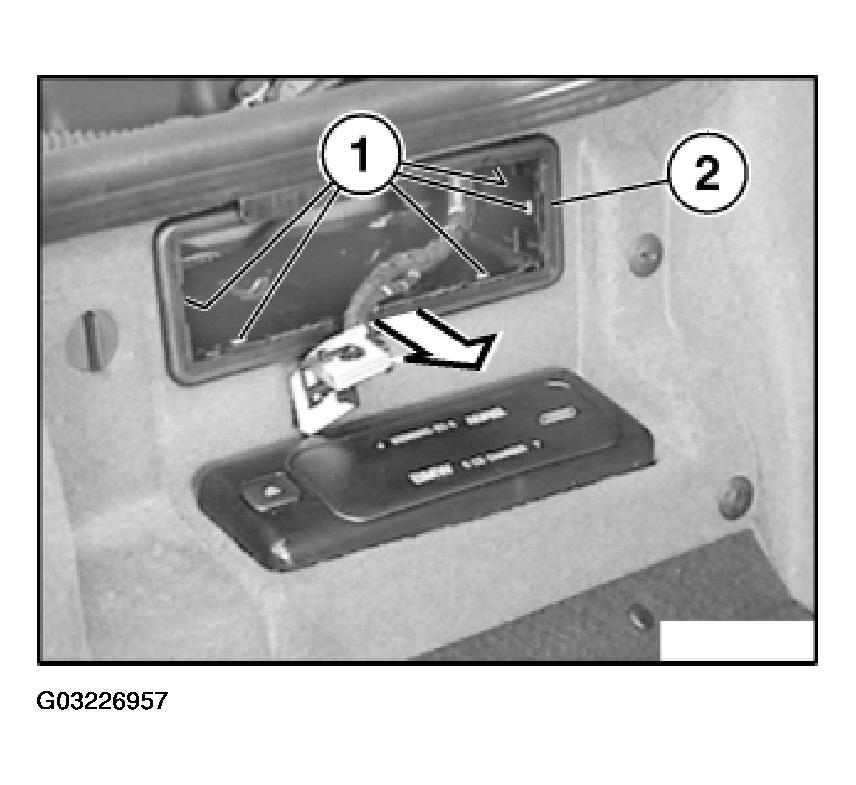

Fig 1: Removing Navigation Computer
G03226957

Version with CD changer:

Open cover (1) for CD changer.

Unlock bayonet lock (2) and open flap (3).

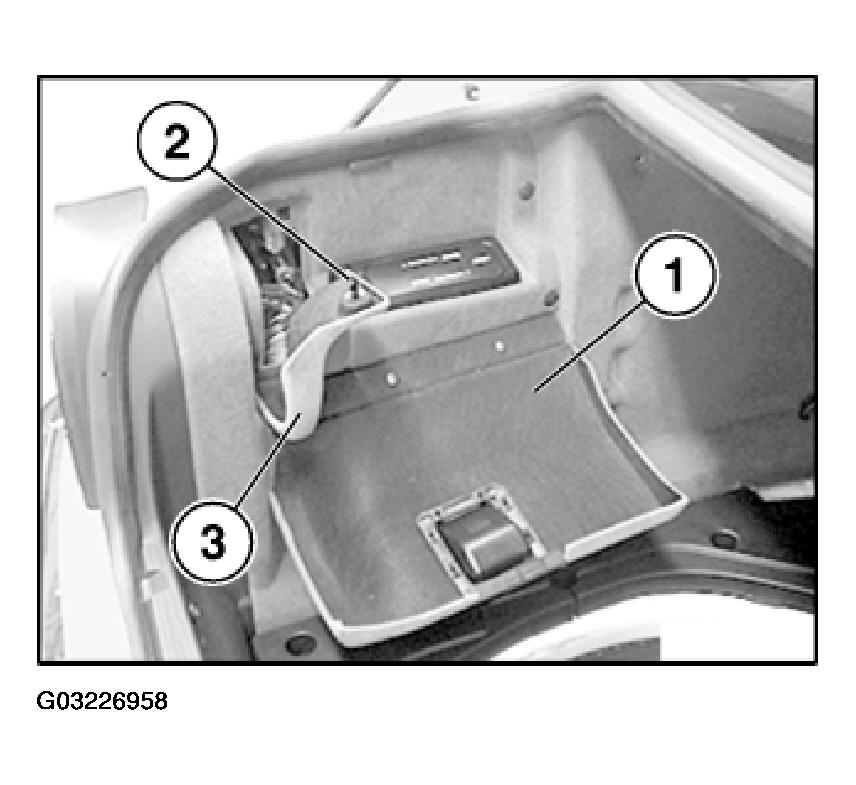

Fig 2: Unlocking Bayonet Lock And Open Flap
G03226958

Version with CD changer:

Detach panel (1) at rear and lift over CD changer (2).

Release plastic screw fittings (3) and detach panel components.

Installation:

Plastic screw fittings (3) are only pressed together during installation.

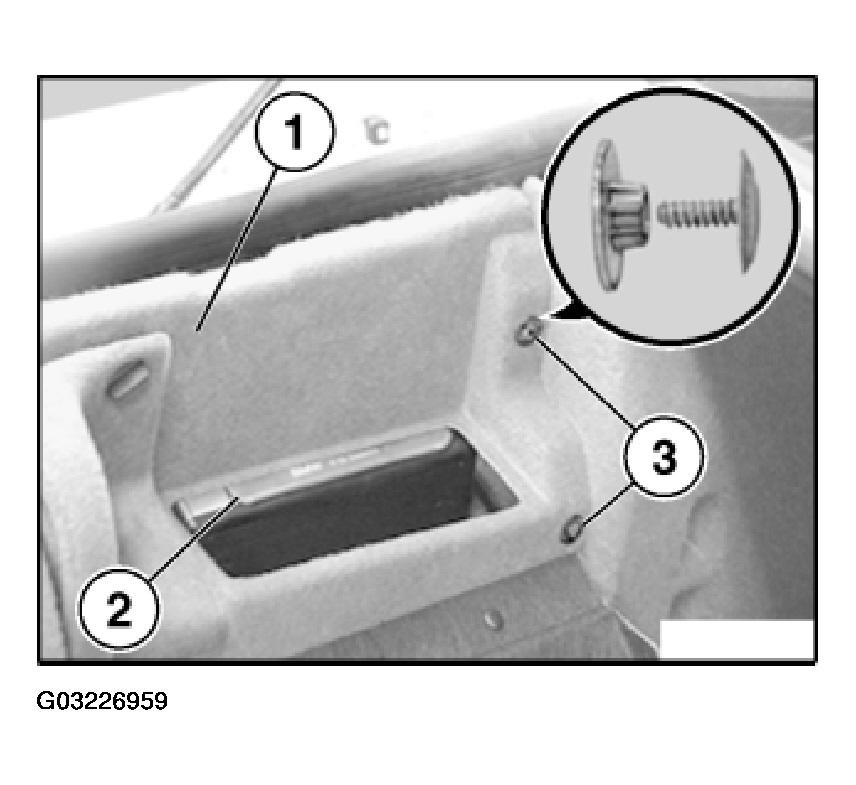

Fig 3: Releasing Plastic Screw Fittings
G03226959
