Removal & Installation

  1. Pull off plug (2). Unfasten nut (3) and disconnect control rod. Unfasten screws (1) and remove height setting sensor. See Fig 1 .
  2. To install, reverse removal procedure. Lever (4) points outwards. See Fig 1 .
  3. Tighten nuts and screws to specification. See TORQUE SPECIFICATIONS  .
  4. After assembly check headlight adjustment.

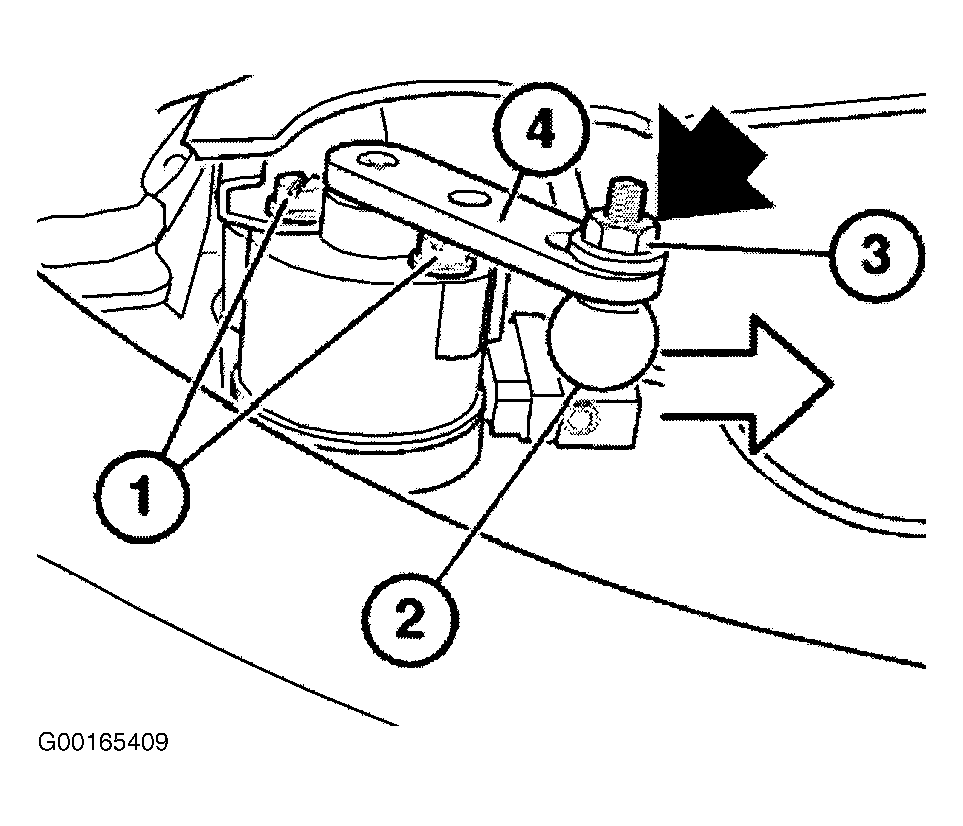

Fig 1: Removing Rear Ride Height Sensor
G00165409Courtesy of BMW OF NORTH AMERICA, INC.
