64 22 190 Removing and installing / replacing freshair grille in rear of car
Depending on the equipment version, a heater control or a finisher strip may be installed. All versions are removed in the same manner.

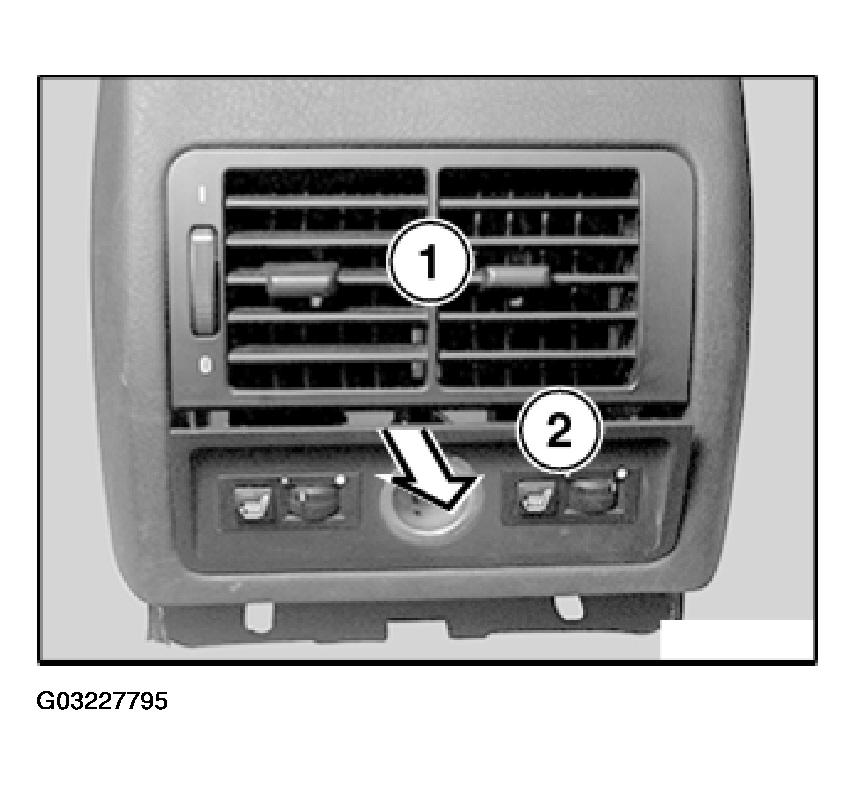

Press fresh-air grill (1) and heater control (2) apart somewhat and clip heater control (2) out of guide groove at top.

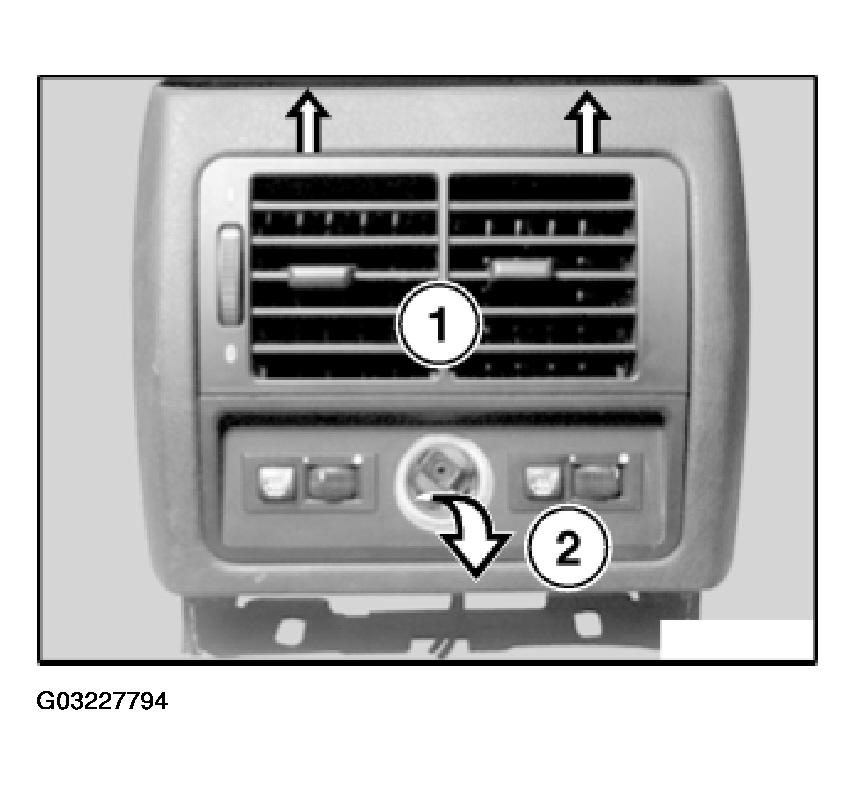

Pull fresh-air grill (1) upward and screw out heater control (2).

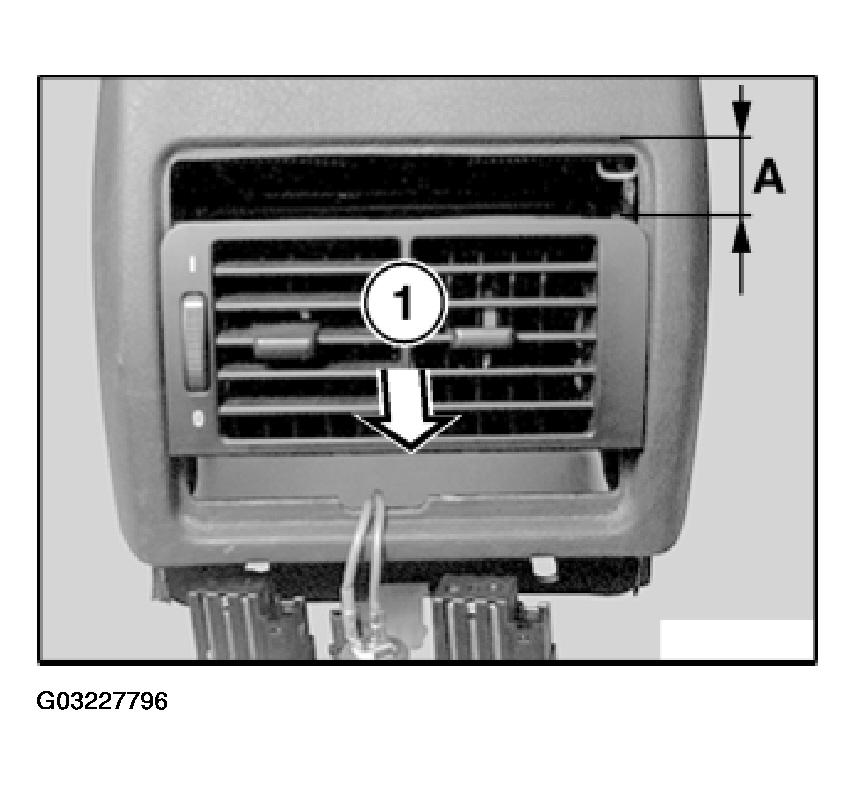

Push fresh-air grill (1) downward by dimension A (approx. 30 to 40 mm) and out of recesses of guide groove.
Installation Note:

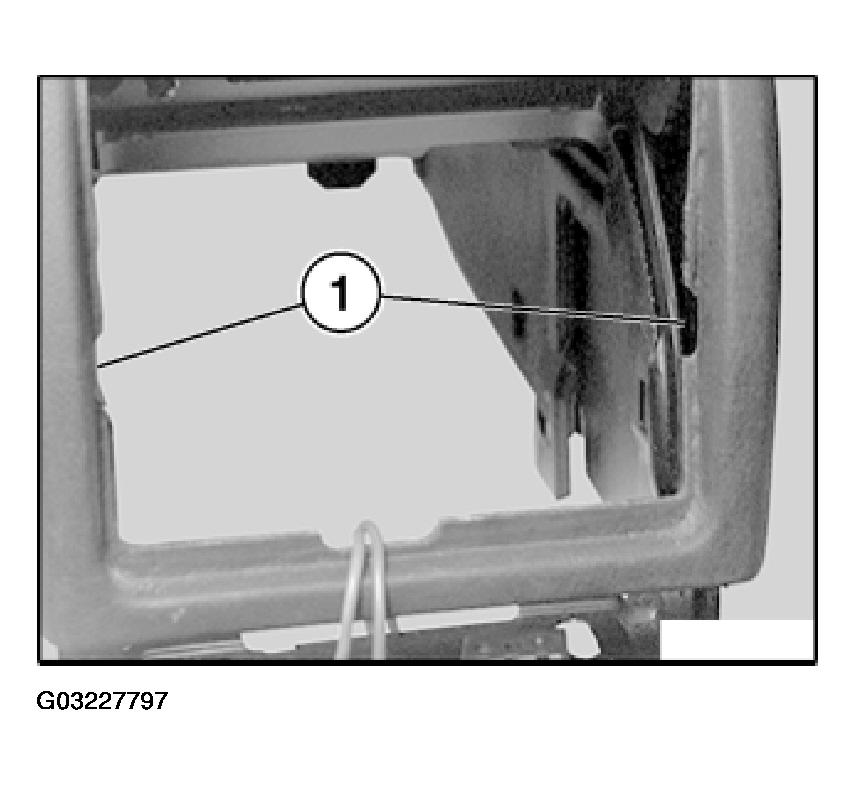

Guide fresh-air grill centered into recesses (1) of guide groove and press completely upward. Then install finisher strip or heater control.
