51 34 420 Removing and installing/replacing trim on window frame of rear door (front), left or right (Protection)

Remove rubber guide for rear door window glass, refer to 51 34 211 REPLACING RUBBER SEAL FOR DOOR WINDOW GLASS, REAR LEFT OR RIGHT (PROTECTION) .

Detach and remove rubber seal (1) at front.

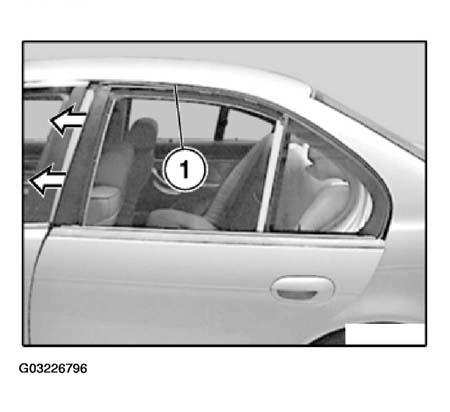

Fig 1: Detaching And Removing Rubber Seal (1) At Front
G03226796

Installation:

Coat rubber seal with rubber protection coating agent.

Release screws (1). Lever out rear trim and detach towards front.

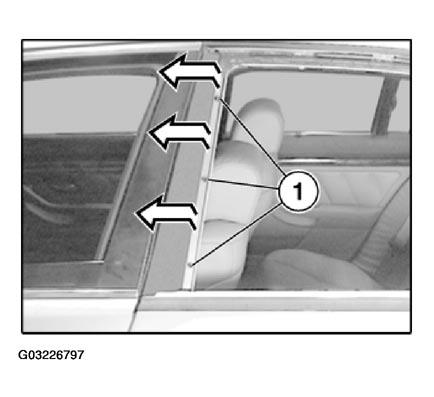

Fig 2: Releasing Screws
G03226797

Installation:

If necessary, replace faulty plastic nuts (1) and insulating material (2).

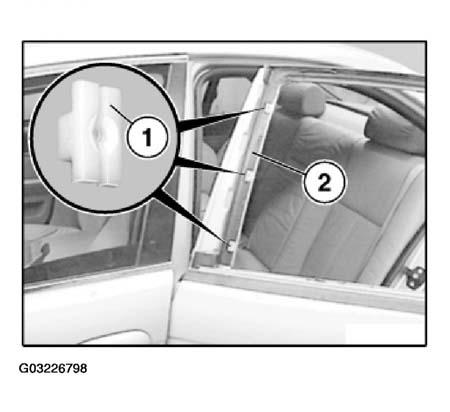

Fig 3: Installing Faulty Plastic Nuts And Insulating Material
G03226798

Installation:

Install trim strip (3) to align trim (1) and rubber seal (2).

Press trim (1) upwards against trim strip (3) and screw into place.

Remove trim strip (3) again.

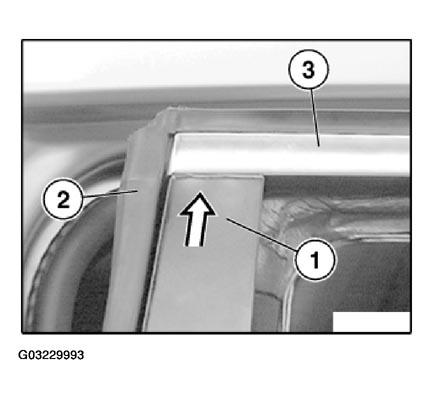

Fig 4: Removing Trim Strip
G03229993
