51 22 225 Removing and installing/replacing inside door opener of rear left or right door

Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

Version Up To 09/98 (Door Opener Without Lighting):

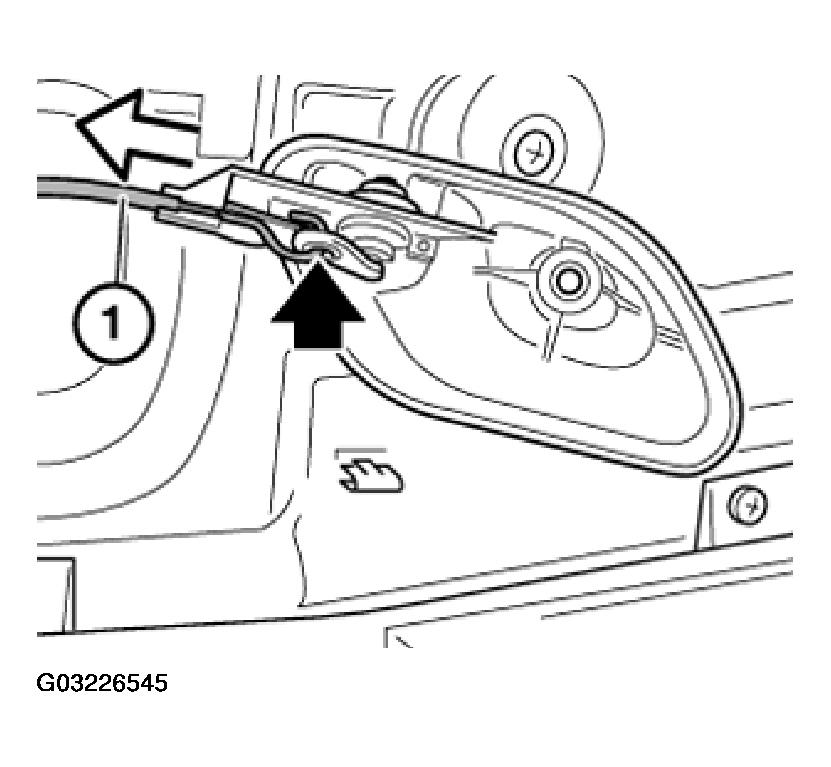

Pull Bowden cable (1) towards rear and unhook from door opener.

Fig 1: Removing Rear Door Trim Panel

Version From 09/98 (Door Opener With Lighting):

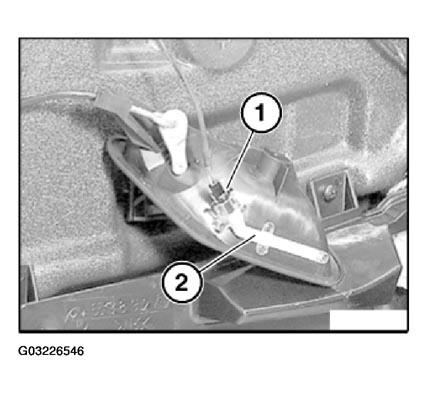

Disconnect LED with cable (1) from light housing (2).

Fig 2: Disconnecting Led With Cable From Light Housing

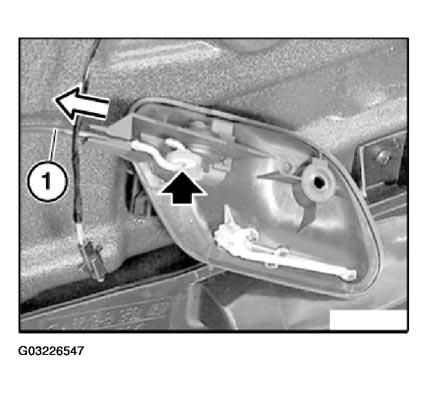

Pull Bowden cable (1) towards rear and unhook from door opener.

Fig 3: Pulling Bowden Cable
