51 41 ... Replacing protective mat for left or right front door (Protection)

Remove sound insulation/protective mat on front door, refer to 51 48 ... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN FRONT DOOR, LEFT OR RIGHT .

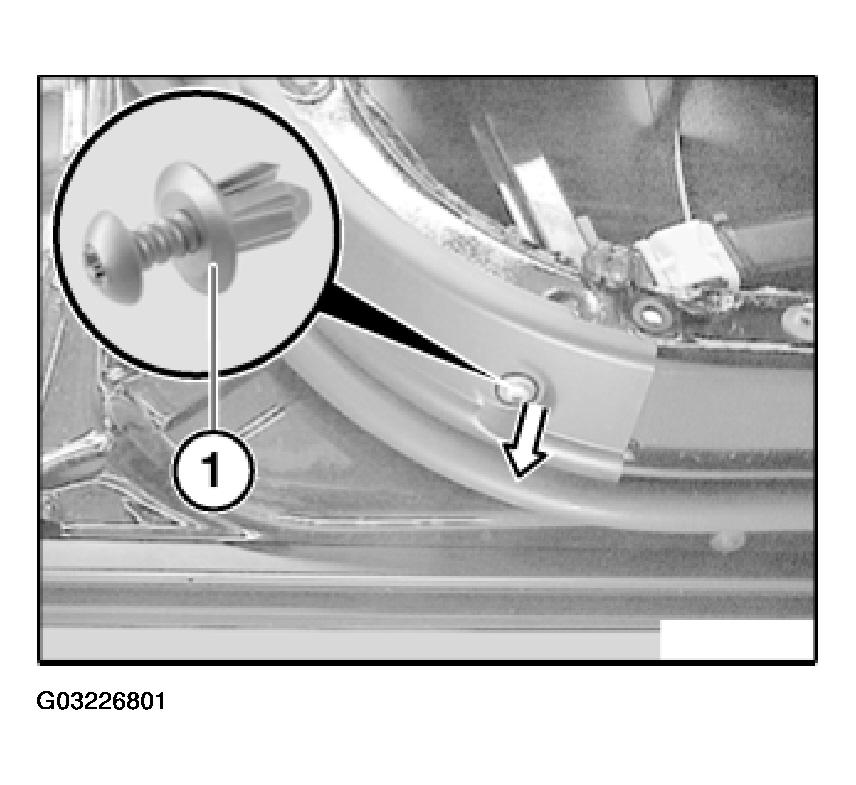

Release expansion rivet (1) at bottom.

Fig 1: Releasing Expansion Rivet

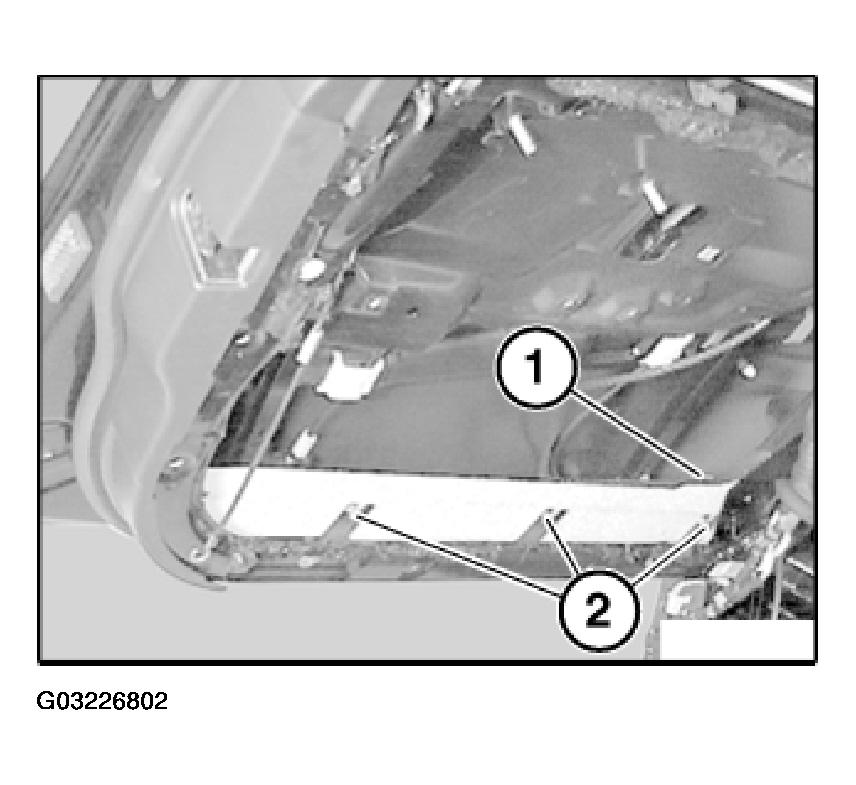

Unfasten cable connector (1).

Unfasten screws (2).

Fig 2: Unfastening Cable Connector And Screws

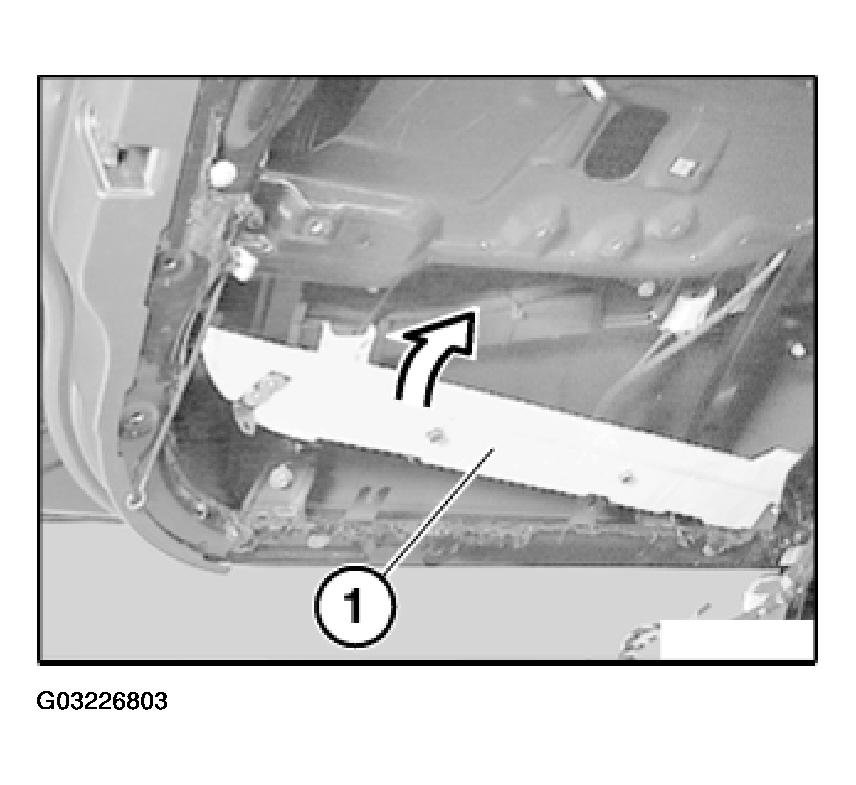

Lift protective mat (1) out of interior of door towards top.

Fig 3: Lifting Protective Mat
