Model with hexagon guide in the drive disk:

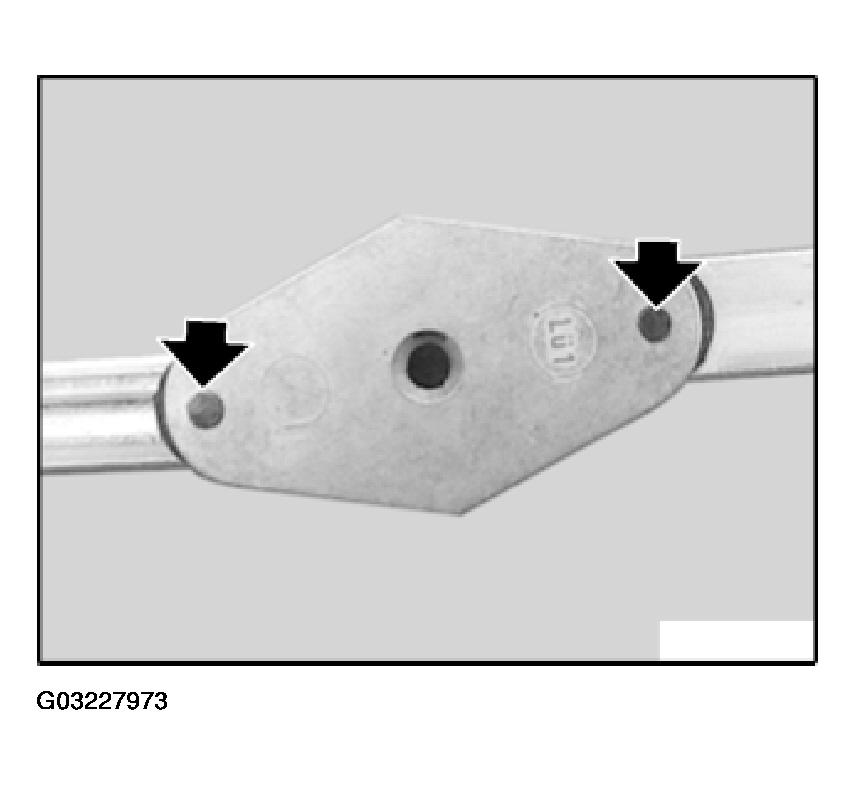

Bore out rivets in drive disk and remove both linkage assemblies.

Fig 1: Boring Rivets In Drive Disc
G03227973

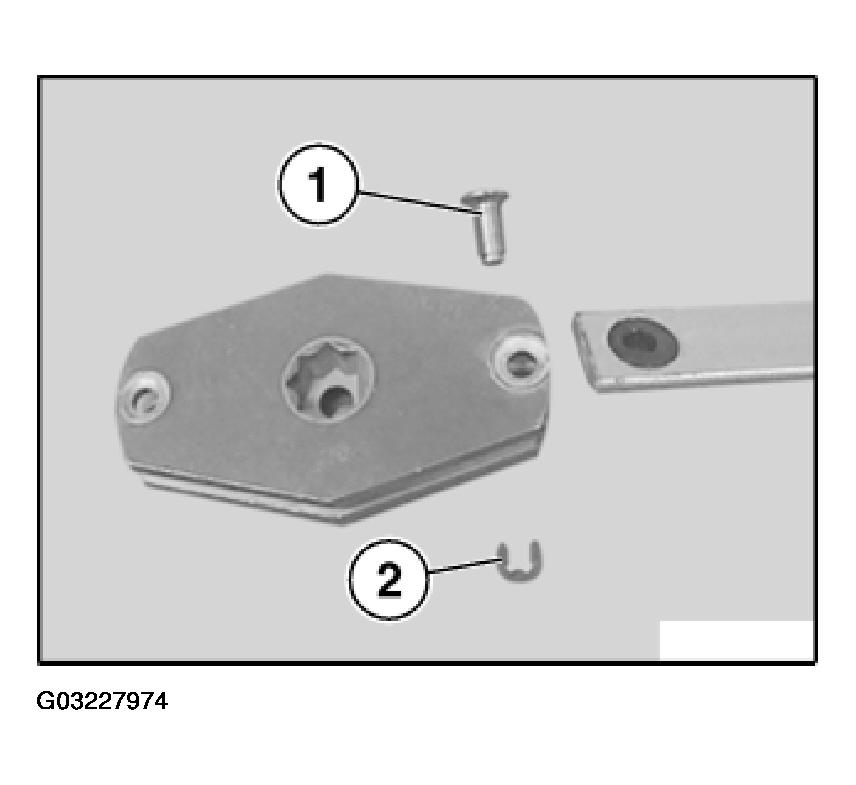

Install linkage on new drive disk with pin (1) and retaining rings(2)

Fig 2: Installing Linkage On Drive Disk With Pin And Retaining Rings
G03227974
