61 61 041 Replacing both windshield wiper blades

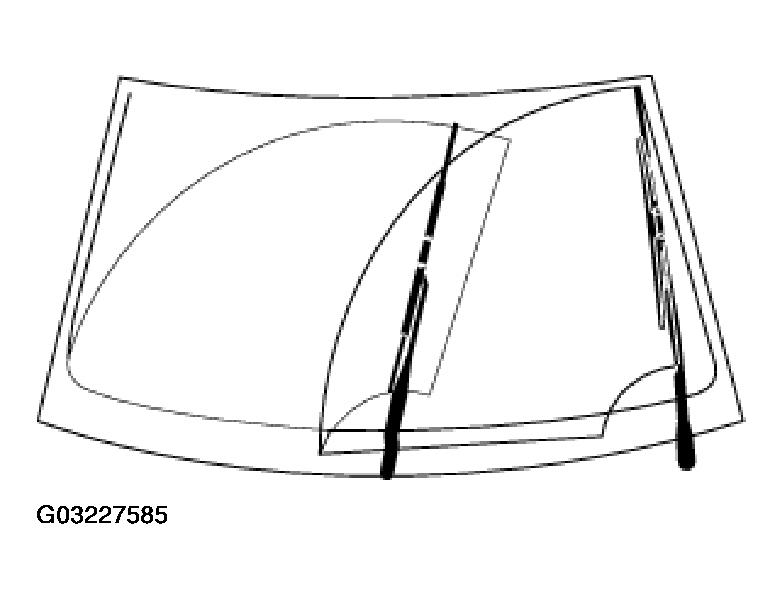

Move wiper blade into fold-away position. To do this, turn on ignition and move wiper switch into intermittent wipe setting. Once the wipers are stationary in their intermittent wipe setting, switch off the ignition. At this point, wiper blades move into an almost vertical fold-away setting.

Fig 1: Moving Wiper Blade Into Fold-Away Position
G03227585

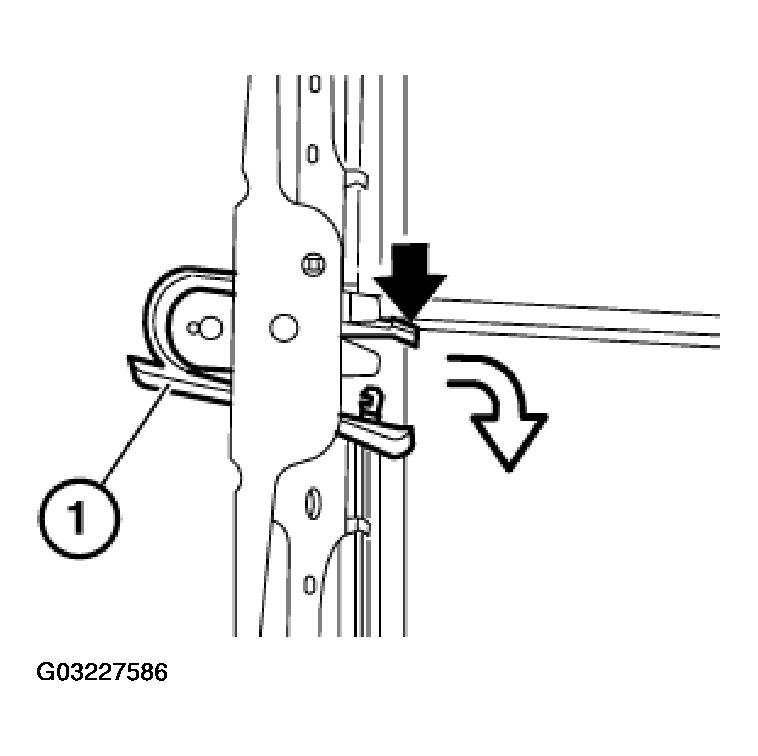

Remove plastic cover (1). Press down retaining spring, pull wiper blade towards wiper arm and guide upwards to remove.

Fig 2: Removing Plastic Cover
G03227586
