67 63 510 Removing and installing or replacing windshield wiper motor: Notes

Remove complete wiper console, refer to 61 61 270 REMOVING AND INSTALLING COMPLETE WIPER CONSOLE .

Unfasten nut (1) and lift lever (2) off shaft.

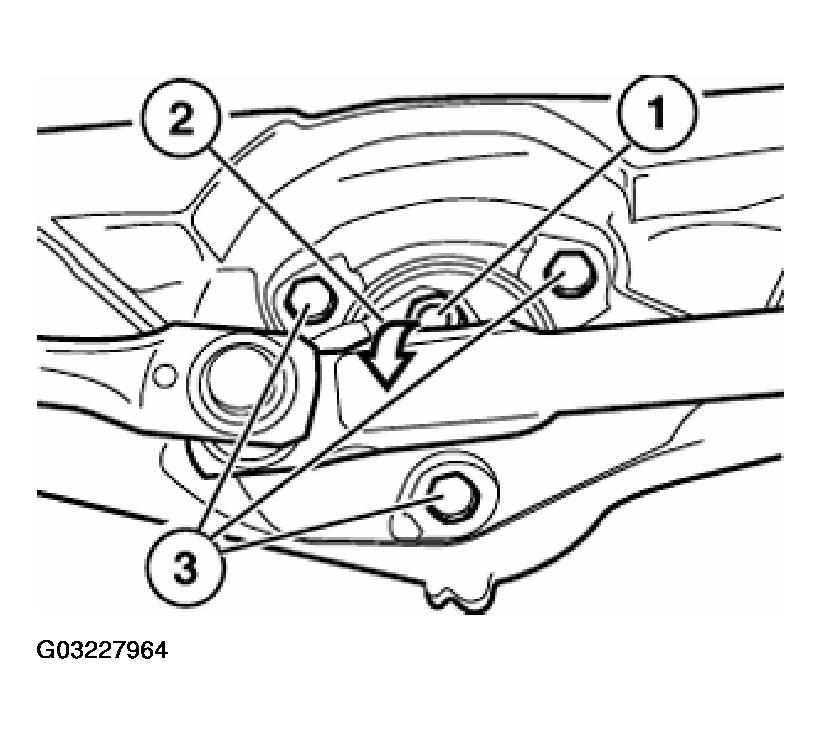

Fig 1: Removing Wiper Motor

Unfasten screws (3) and remove wiper motor.
