67 31 700 Removing and installing or replacing drive for headrest adjustment on rear seat backrest

Partially remove rear seat backrest, refer to 52 24 015 REMOVING AND INSTALLING/REPLACING BACKREST FOR REAR SEAT (NORMAL) .

Remove connector, unfasten screws and remove headrest drive.

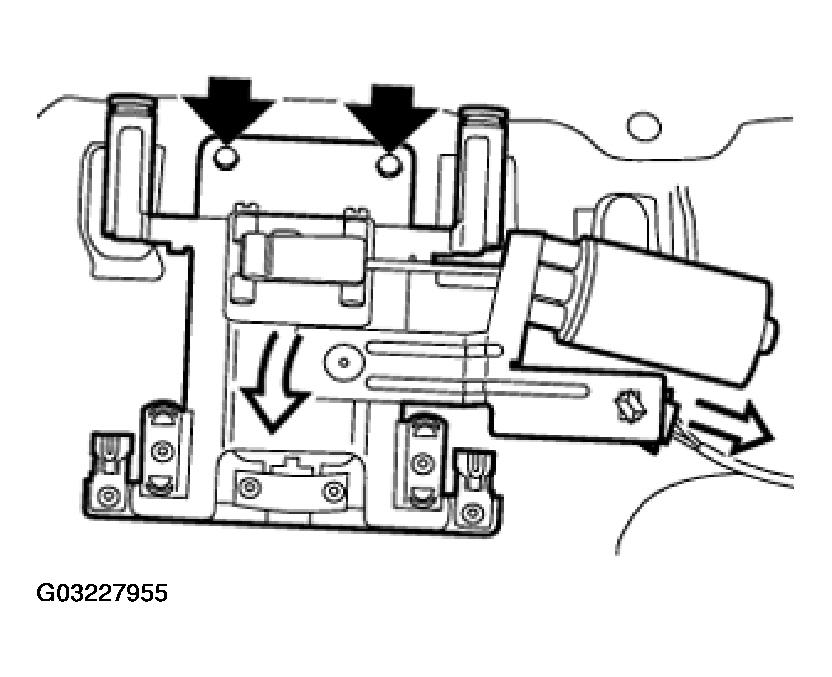

Fig 1: Removing Headrest Drive

Unclip retaining hook and slide connector out of bracket.

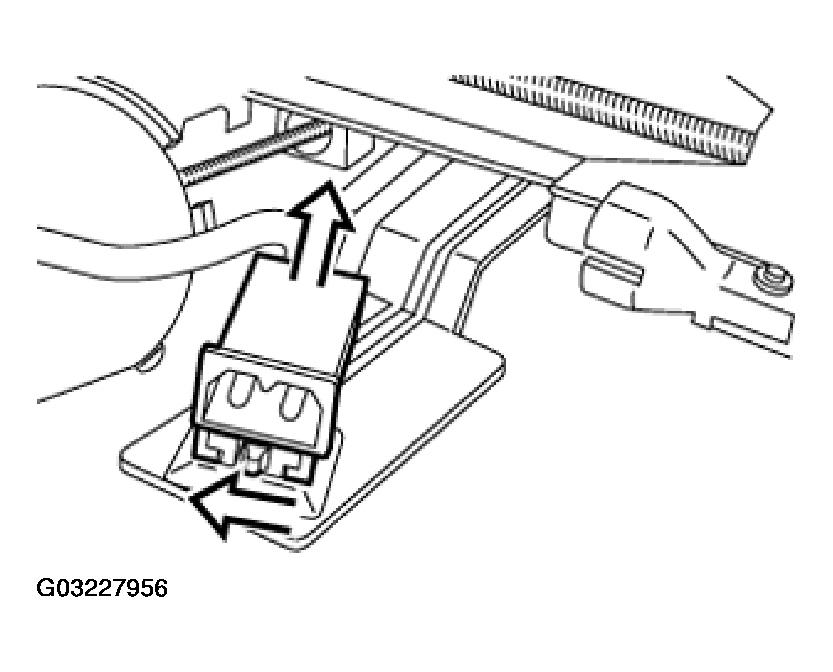

Fig 2: Sliding Connector Out Of Bracket

Unfasten screws and pull motor out of shaft.

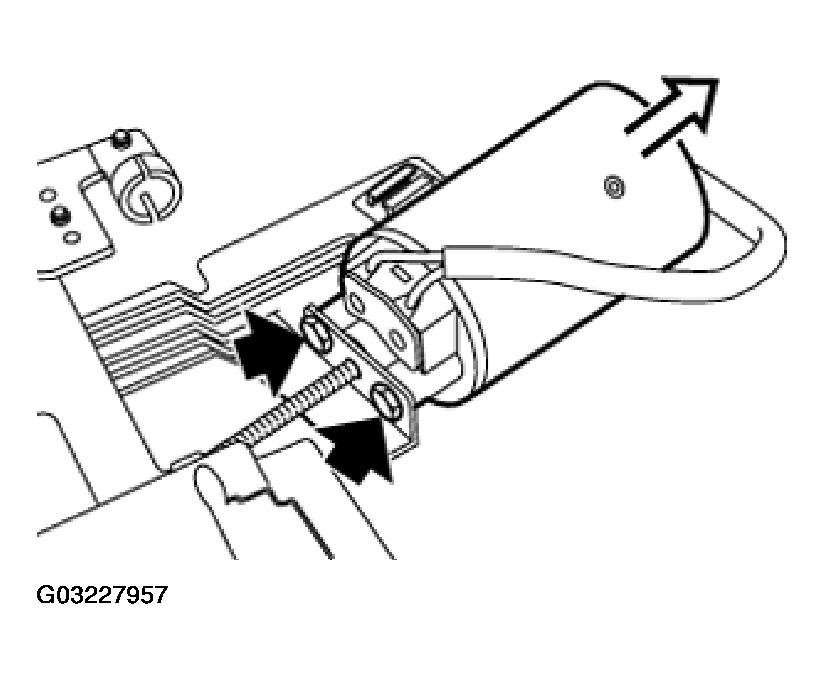

Fig 3: Pulling Motor Out Of Shaft
