Component Overview: Notes

The wide screen on-board monitor consists of:

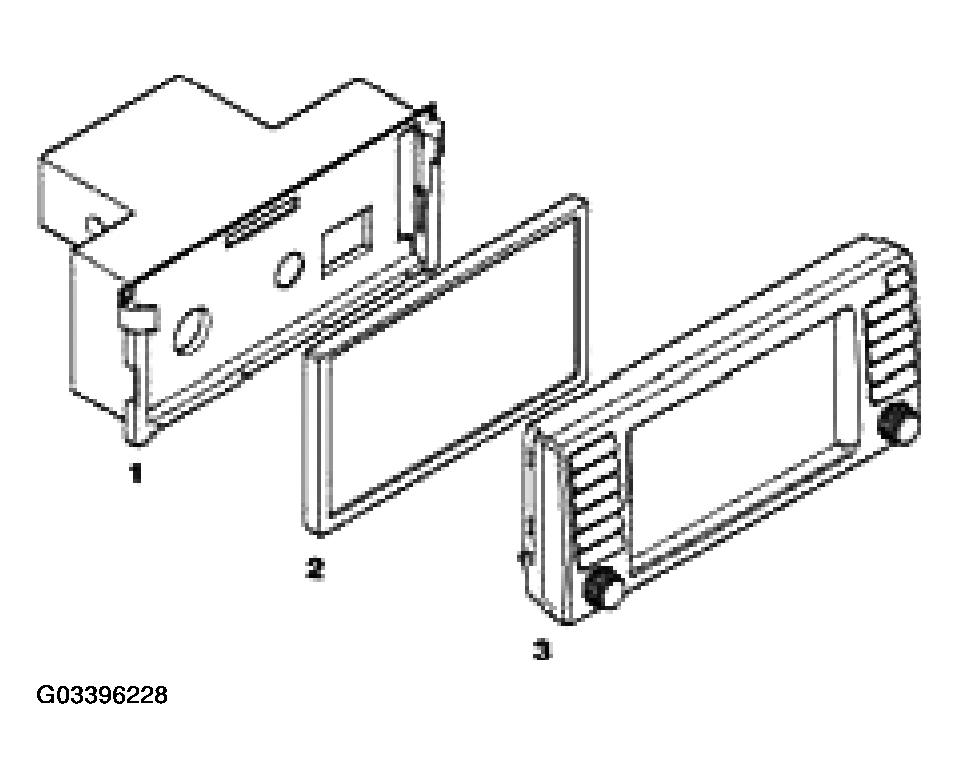

Fig 1: Identifying Wide Screen Component Overview

Courtesy of BMW OF NORTH AMERICA, INC.

1. Monitor housing with cassette drive
2. Display screen
3. On-board monitor control panel
