51 34 160 Removing and installing/replacing cover on door window frame (rear door), left or right (Protection)

Remove fixed side window in rear window frame, refer to 51 34 191 REPLACING FIXED DOOR WINDOW IN FRAME, REAR LEFT OR RIGHT (PROTECTION) .

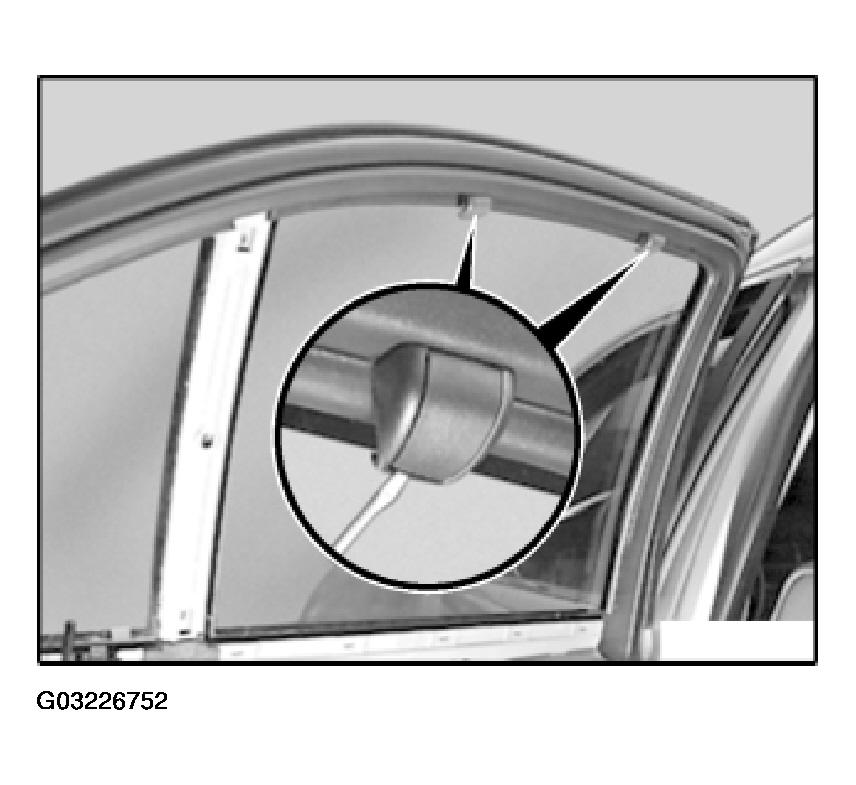

Open bracket for roller sun blind.

Fig 1: Identifying Open Bracket For Roller Sun Blind

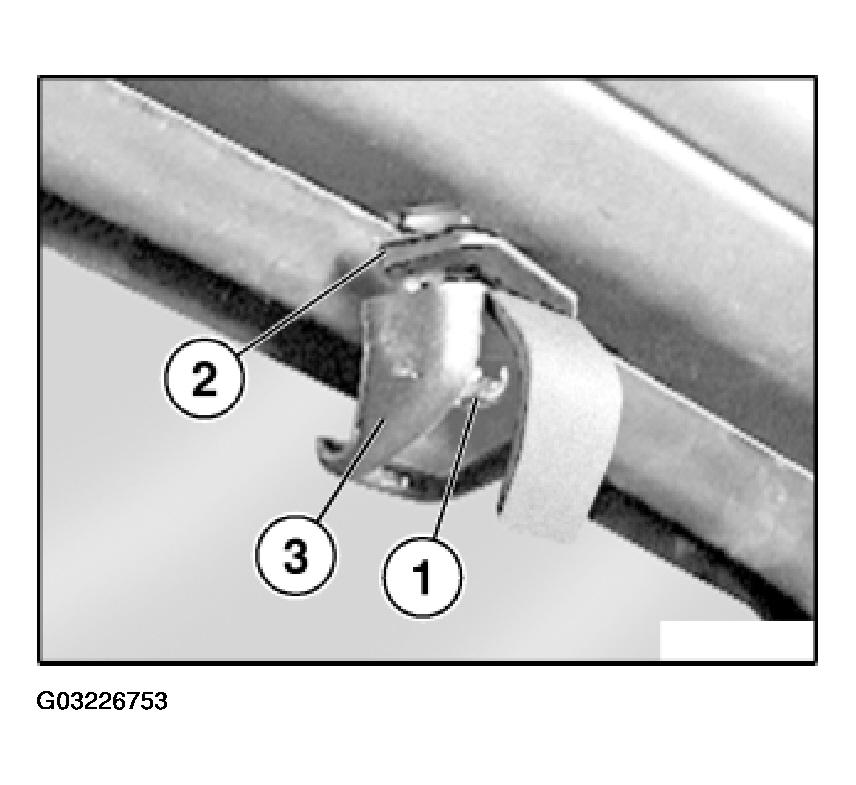

Unscrew bolt (1).

Installation:

Note installation sequence of adapter (2) and bracket (3).

Fig 2: Noting Installation Sequence Of Adapter (2) And Bracket (3)

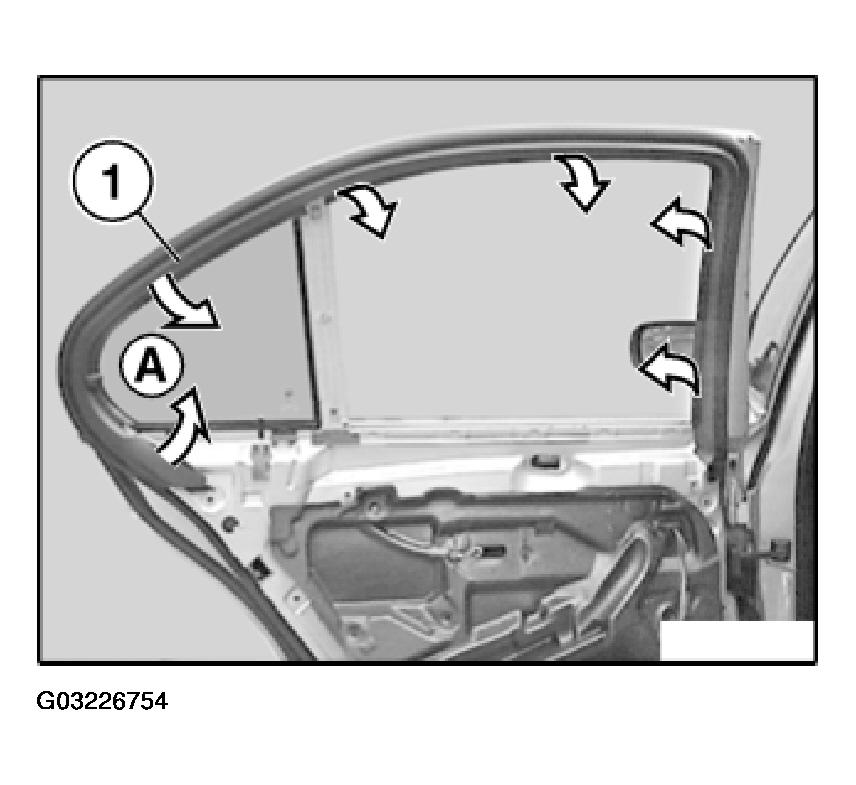

Lift out and remove cover (1) first at rear (A), top (B) and then front (C).

Fig 3: Lifting Out And Removing Cover (1) First At Rear (A), Top (B) And Then Front (C)
