51 22 170 Removing and installing / replacing outside handle on left or right back door: Notes

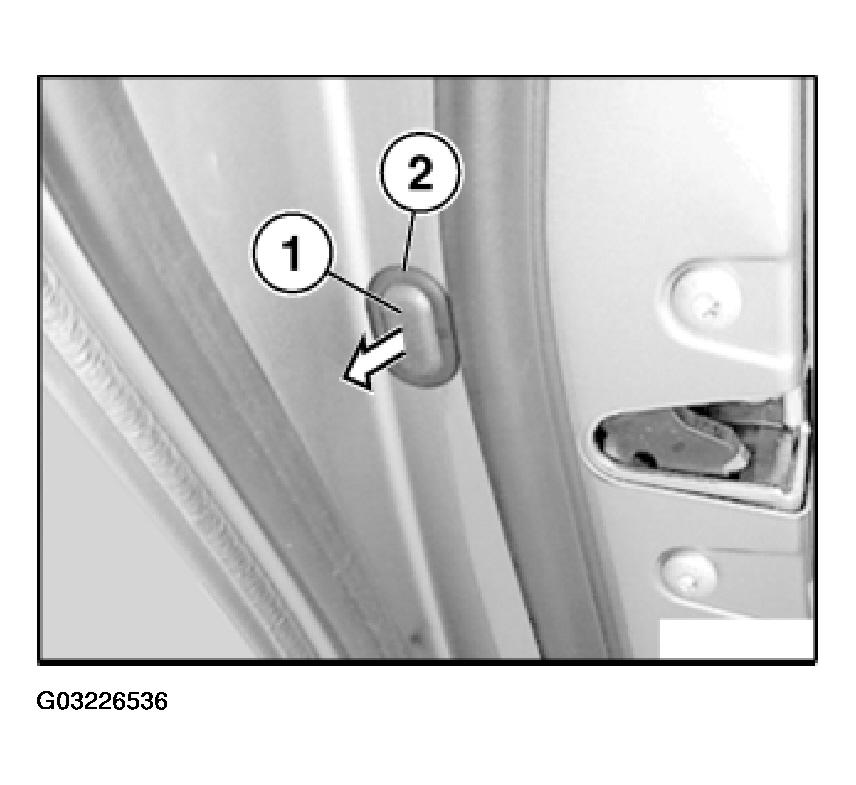

Lift out seal plugs (1) and (2). Mask the area around the bore with fabric adhesive tape (risk of damage).

Fig 1: Lift Out Seal Plugs

Installation:

Fit new seal plugs.

Cut off foam tape around area (1) with Stanley knife (razor-sharp).

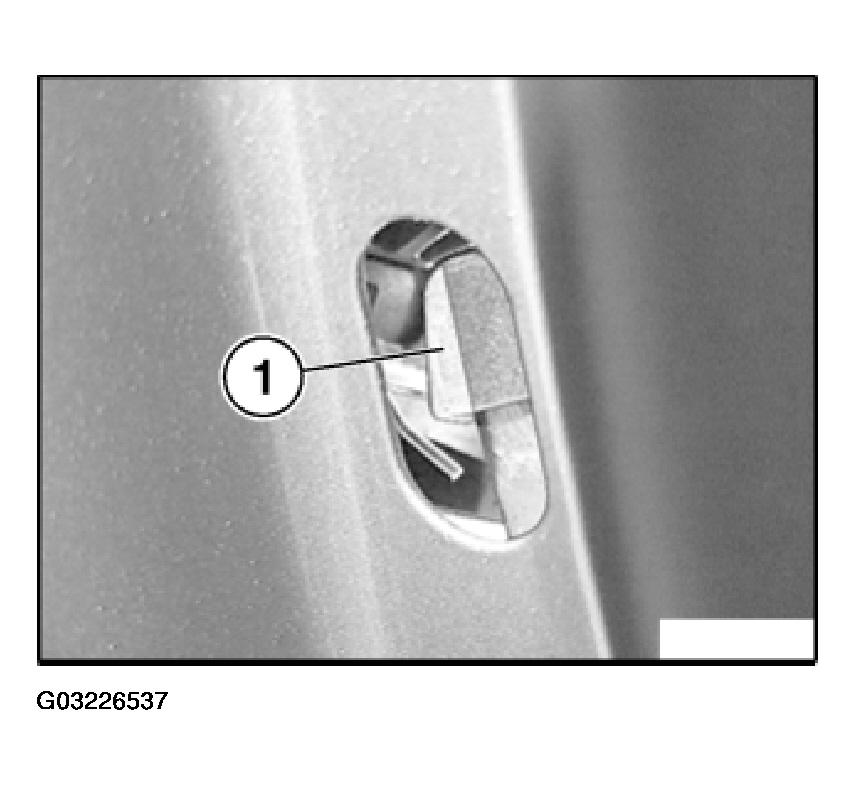

Fig 2: Identifying Foam Tape

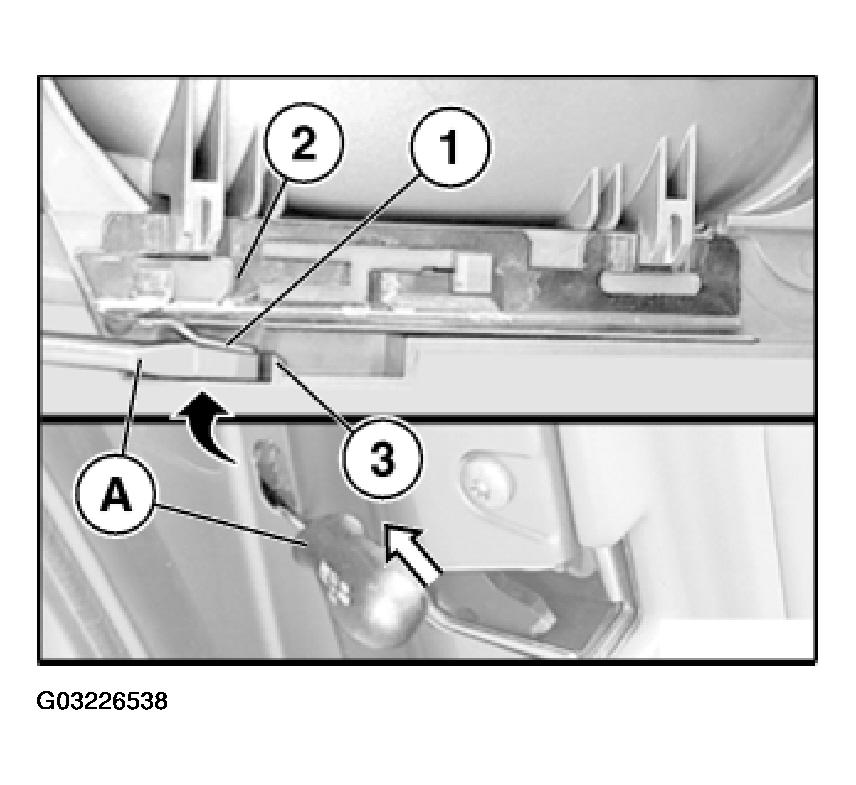

Insert screwdriver (A) and lift retaining tab (1) on locking plate (2) over the retaining lug (3).

Fig 3: Inserting Screwdriver And Lift Retaining Tab

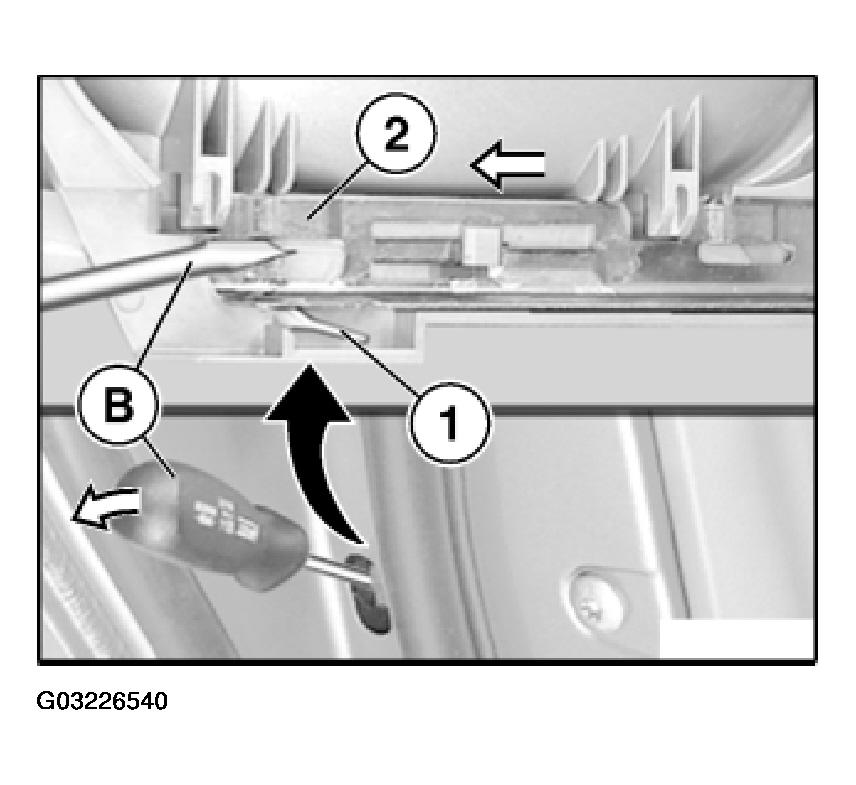

Using small screwdriver (B) (0.4 x 2 mm), press locking plate (2) with raised retaining tab (1) forwards. Remove both screwdrivers.

Fig 4: Pressing Locking Plate

Installation:

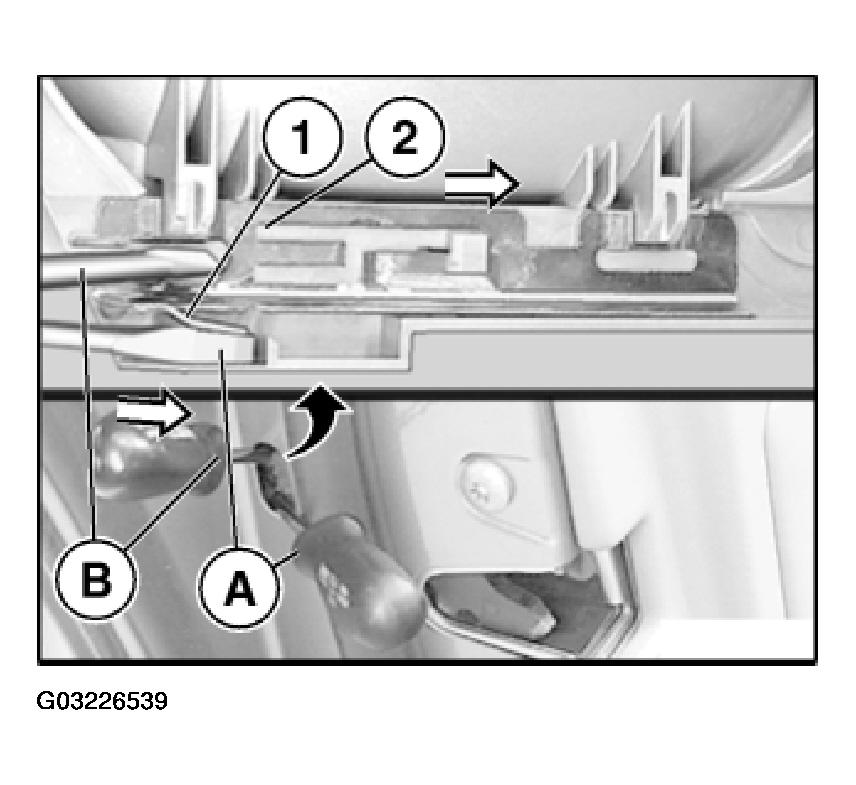

Insert screwdriver (B) (0.4 x 2 mm) in locking plate (2) and pull it backwards until the retaining tab (1) engages audibly.

Perform function check with opened rear door.

Fig 5: Inserting Screwdriver (B) (0.4 X 2 Mm) In Locking Plate (2) And Pulling Backwards Until The Retaining Tab (1) Engages
